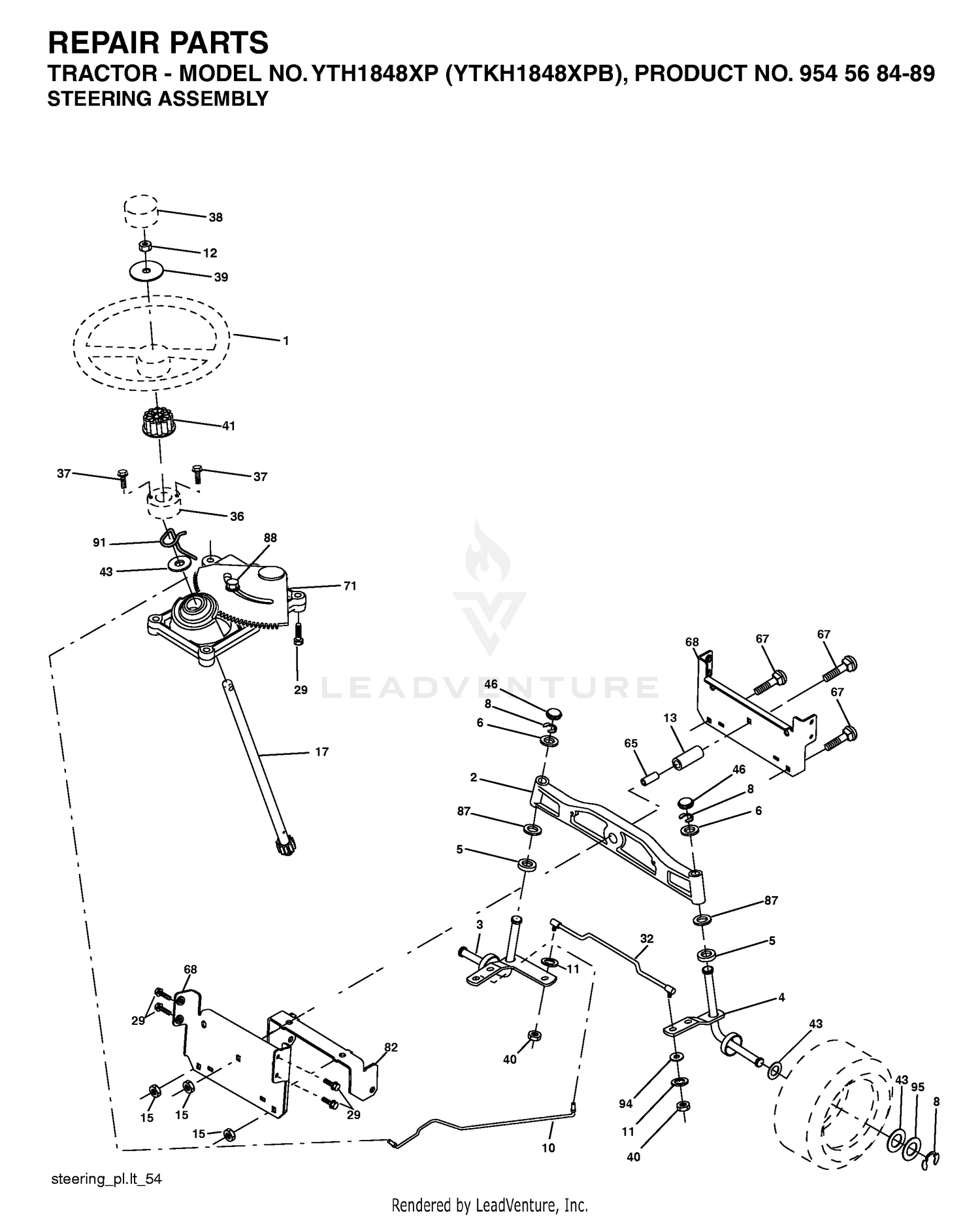

| Ref | Part Number | Description |
|---|
| 1 |
532166627 |
STEERING WHEEL Price: $64.99 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532184706. Price: $119.99 |
| 3 |
596873901 |
KIT SPINDLE ASM.PNT.LH.15 This part replaces 532169840. Price: $14.99 |
| 4 |
596873801 |
KIT SPINDLE ASM.PNT.RH.15" This part replaces 532169839. Price: $27.99 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 10 |
120-2558 |
CRANKCASE ASM Price: $5,454.20 |
| 10 |
532175121 |
DRAGLINK.15".TIRES.2001 Price: $59.99 |
| 12 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 17 |
532177883 |
SHAFT ASM STRG Price: $104.99 |
| 20 |
98-9398 |
CAP-SEALING Price: $6.08 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 30 |
98-7539 |
CAP-SEALING Price: $6.44 |
| 32 |
532180580 |
ROD TIE BALL J WSL Price: $109.99 |
| 36 |
532155108 |
KIT.BUSHING.STEERING. This part replaces 532155105. Price: $6.99 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
532172092 |
INSERT.CAP.STRG.WH (3 2) (L B) This part replaces 532166626. Price: $12.99 |
| 39 |
819183812 |
WASHER 9/16"ID, 2 3/8"OD Price: $7.99 |
| 40 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 40 |
98-9687 |
PLUG Price: $2.86 |
| 41 |
532159945 |
STEERING WHEEL ADAPTOR Price: $6.99 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 50 |
105-3779 |
PLUG Price: $8.05 |
| 60 |
98-9597 |
PLUG Price: $17.66 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 67 |
872110618 |
BOLT CARRIAGE Price: $4.99 |
| 68 |
531167401 |
SERVICE KIT BRACE.AXLE.1 This part replaces 532169827. Price: $19.99 |
| 70 |
98-7487 |
PLUG Price: $3.18 |
| 71 |
531167801 |
SERVICE KIT STEERING ASM This part replaces 532175146. Price: $139.99 |
| 80 |
98-9379 |
PLUG-EXPANSION Price: $0.76 |
| 82 |
531170201 |
SERVICE.KIT BRACKET This part replaces 532169835. Price: $19.99 |
| 87 |
532173966 |
WASHER, FLAT .781 X 1 1/2" Price: $4.99 |
| 88 |
532175118 |
BOLT, SHOULDER 7/16-20 Price: $4.99 |
| 90 |
98-9668 |
PLUG-EXPANSION Price: $2.17 |
| 91 |
532175553 |
CLIP.STEERING Price: $9.99 |
| 94 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 95 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 100 |
98-9375 |
PIN-STRAIGHT Price: $0.41 |
| 110 |
98-9377 |
PIN-STRAIGHT Price: $1.00 |
| 120 |
98-9376 |
PIN-STRAIGHT Price: $0.41 |
| 130 |
98-9387 |
PIN-PIPE Price: $2.92 |
| 140 |
98-9539 |
PIN-PIPE Price: $1.15 |
| 150 |
98-9599 |
PLUG Price: $6.08 |
| 160 |
105-3796 |
PIN-SPRING, START Price: $5.31 |
| 170 |
98-9675 |
PLUG Price: $8.54 |
| 180 |
98-9656 |
BUSHING-GOVERNOR, GEAR Price: $29.04 |
| 190 |
98-7507 |
PLUG Price: $2.64 |
| 200 |
98-7428 |
GASKET Price: $0.68 |
| 220 |
99-3447 |
PLUG Price: $3.11 |
| 230 |
106-7056 |
GASKET Price: $1.48 |
