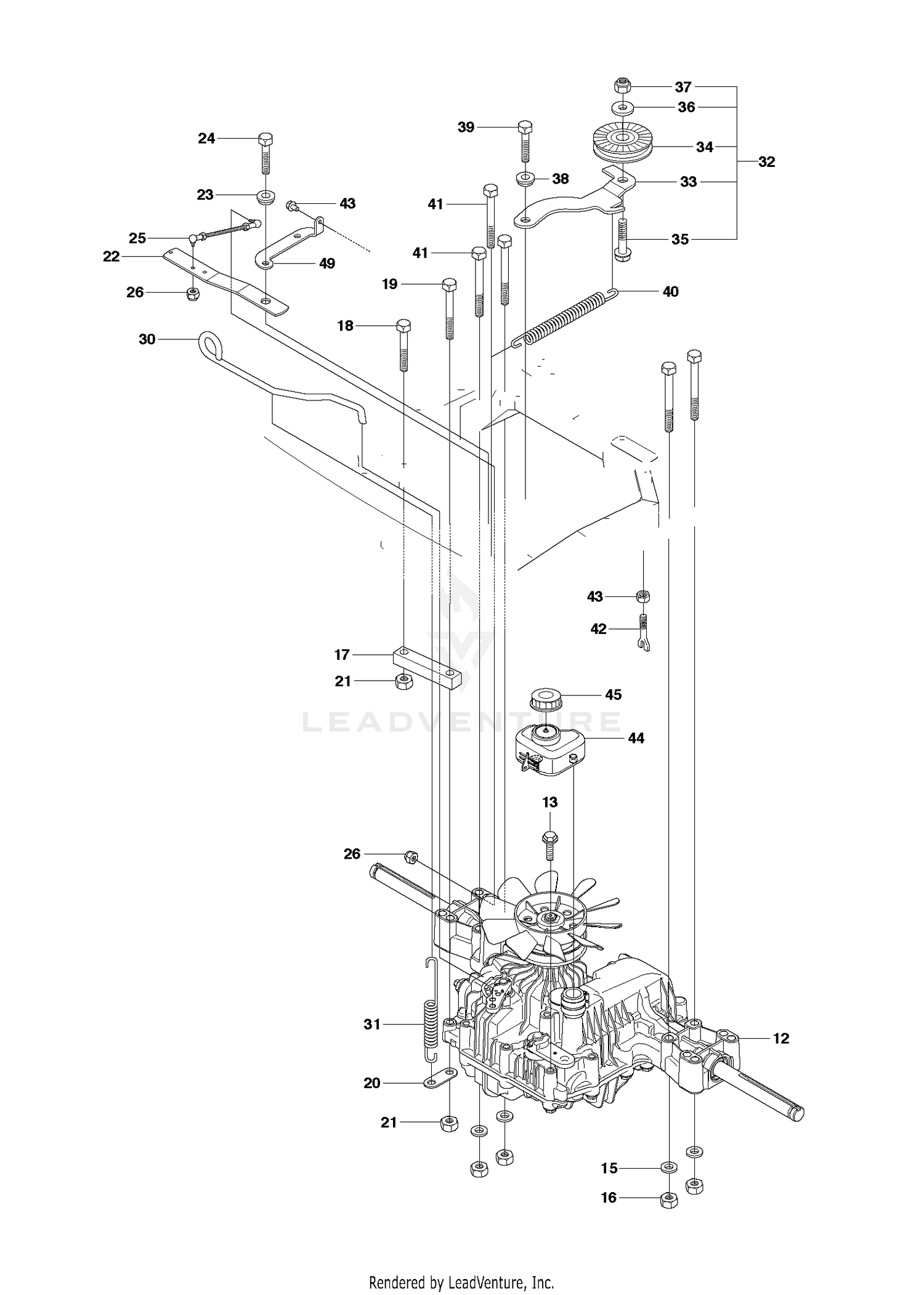

CHASSIS REAR
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 98-9705 | STARTER ASM Price: $663.57 |
| 12 | 590716801 | TRANSMISSION K574A This part replaces 544116101. Price: $849.99 |
| 13 | 725246751 | Hex Bolt Price: $4.99 |
| 15 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 16 | 731231801 | NUT Price: $3.99 |
| 17 | 506987201 | BRACKET Price: $19.99 |
| 18 | 725245951 | SCREW Price: $4.99 |
| 19 | 725246251 | SCREW Price: $4.99 |
| 20 | 506599301 | CONNECTOR Price: $5.99 |
| 20 | 98-7697 | BOLT Price: $1.08 |
| 21 | 731231801 | NUT Price: $3.99 |
| 22 | 506987403 | ARM Price: $12.99 |
| 23 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 24 | 725245151 | SCREW 8X20 Price: $4.99 |
| 25 | 506987501 | ROD Price: $32.99 |
| 26 | 732211401 | LOCKNUT M5 Price: $2.99 |
| 30 | 506988201 | Rod Price: $12.71 |
| 30 | 98-7739 | NUT Price: $1.08 |
| 31 | 506834301 | SPRING Price: $3.99 |
| 32 | 506988401 | TENSIONER Price: $54.99 |
| 33 | 588740401 | BELT TENSIONER ARM This part replaces 506988501. Price: $14.99 |
| 34 | 506946901 | PULLEY Price: $34.99 |
| 36 | 734116441 | SPACER Price: $3.99 |
| 37 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 38 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 39 | 725245151 | SCREW 8X20 Price: $4.99 |
| 40 | 105-2893 | WASHER-SPRING Price: $0.48 |
| 40 | 594924101 | Springs This part replaces 506988601. Price: $3.99 |
| 41 | 725246451 | SCREW Price: $5.99 |
| 42 | 506988801 | SCREW Price: $4.96 |
| 43 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 44 | 544100102 | EXPANSION TANK RIDER EXTENDED This part replaces 544100101. Price: $54.99 |
| 45 | 506673301 | FUEL CAP Price: $27.99 |
| 49 | 544121701 | BRACKET Price: $6.99 |
| 50 | 105-3784 | FLYWHEEL ASM Price: $1,612.54 |
| 60 | 115-3015 | GEAR-RING Price: $369.00 |
| 70 | 98-9537 | BOLT-FLYWHEEL Price: $7.04 |
| 80 | 98-9486 | PLATE-END, REAR Price: $176.46 |
