Home / OPE / Gravely Zero Turn / Rapid XZ / 990100 (000101 - ) Rapid XZ, 27hp Kohler / Engine And Clutch

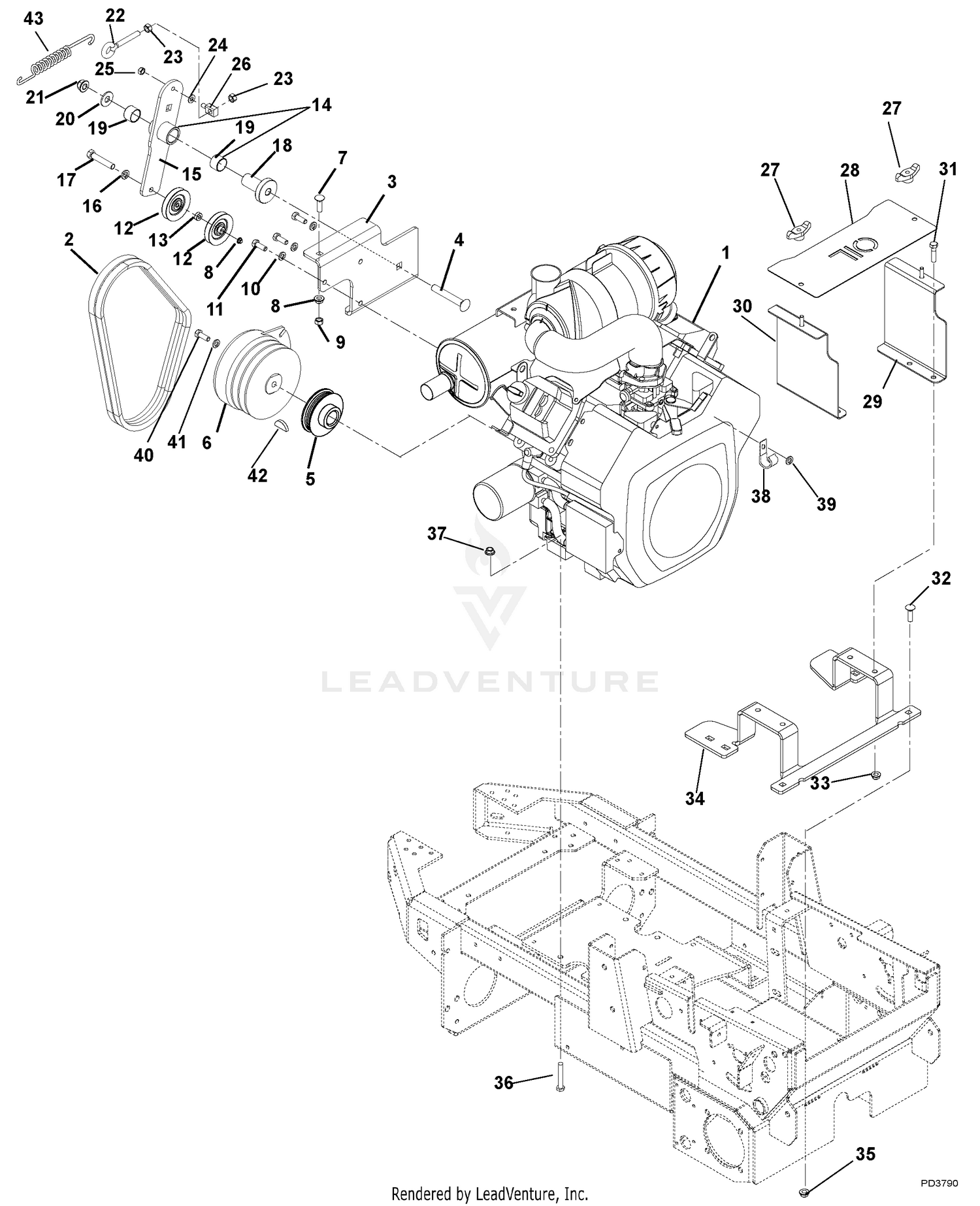

Engine And Clutch

Engine And Clutch

Parts (39)

RefPart NumberDescription
2 07200113 V-BELT, B-COGGED (SET) Price: $70.95
3 00667451 BRKT, PTO IDLER MTG. Price: $36.95
4 06200317 BLT, RHSN .50-13X3.50 G5 ZCC This part replaces 06225000. Price: $5.45
5 07300041 SHEAVE - POLY-V 1.127 X 3.275 Price: $83.95
6 00697900 CLUTCH, WARNER DOUBLE GROOVE Price: $662.95
7 06200415 BLT, RHSN .38-16X1.25 G5 ZCC This part replaces 06224100. Price: $2.45
8 06500726 NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45
9 06500825 NUT-LK-CTR .38-16 ZC120 This part replaces 06529600. Price: $0.95
10 06300116 WSHR-LK-REG .375X.094 ZCC This part replaces 06308800. Price: $0.95
11 05901711 BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45
12 07327600 V-IDLER, 4.00X.38 Price: $34.95
13 06400018 WASHER, .41 X 1.0 X .38THK Price: $4.95
16 06401008 WSHR-FLT .438X1.00X.083 ZCC This part replaces 06435900. Price: $1.45
17 05901814 BLT, HEX .38-16X3.00 G5 ZCC This part replaces 05957800. Price: $2.45
18 07000031 BEARING, PEDESTAL Price: $74.45
19 05435800 BRG, 1.00 X 1.12 X .75 Price: $8.45
20 06401015 WSHR,FLT .531X1.062X.095 ZCC This part replaces 06430200. Price: $0.95
21 06500810 NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45
22 07030000 BLT-EYE .375-16X2.50 YWZC Price: $7.45
23 06500917 NUT-STD .375-16 G2 ZCC This part replaces 06529400. Price: $0.95
24 06401017 WSHR,FLT .344X.688X.065 ZCC This part replaces 06437200. Price: $0.45
25 06500826 NUT,LK-CTR .31-18 GA ZCC This part replaces 06529800. Price: $1.45
26 09267300 PIN, PIVOT/TRUNNION Price: $6.45
27 07534800 KNOB-CLAMPING, .312-18 NYLOC This part replaces 07531700. Price: $3.45
28 00865151 SHROUD, COOLING Price: $27.45
29 00866951 BRACKET, TANK SHROUD (LH) Price: $35.95
30 00867051 BRACKET, TANK SHROUD (RH) Price: $33.95
31 05901928 BLT, HEX .38-16X1.50 G5 ZCC This part replaces 05957900. Price: $1.45
32 06200313 BLT, RHSN .38-16X1.00 G5 ZCC This part replaces 06223600. Price: $2.45
33 06500726 NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45
34 00682451 MOUNT, HYDRAULIC TANK Price: $64.95
35 06500726 NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45
36 05901640 BLT,HEX .38-16X2.25 G5 ZCC This part replaces 05962900. Price: $3.95
37 06500822 NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95
38 06916000 J-CLAMP Price: $2.45
39 06401001 WSHR,FLT .281X.625X.065 ZCC This part replaces 06437300. Price: $0.45
40 05900040 BLT-HEX .44-20X2.25 G5 YZ EP80 Price: $6.45
41 06300121 WSHR, LK-REG .438X.109 ZCC This part replaces 06309300. Price: $2.45
42 06603400 KEY-SQ .25 X 1.25 X .25 SAE Price: $3.45
