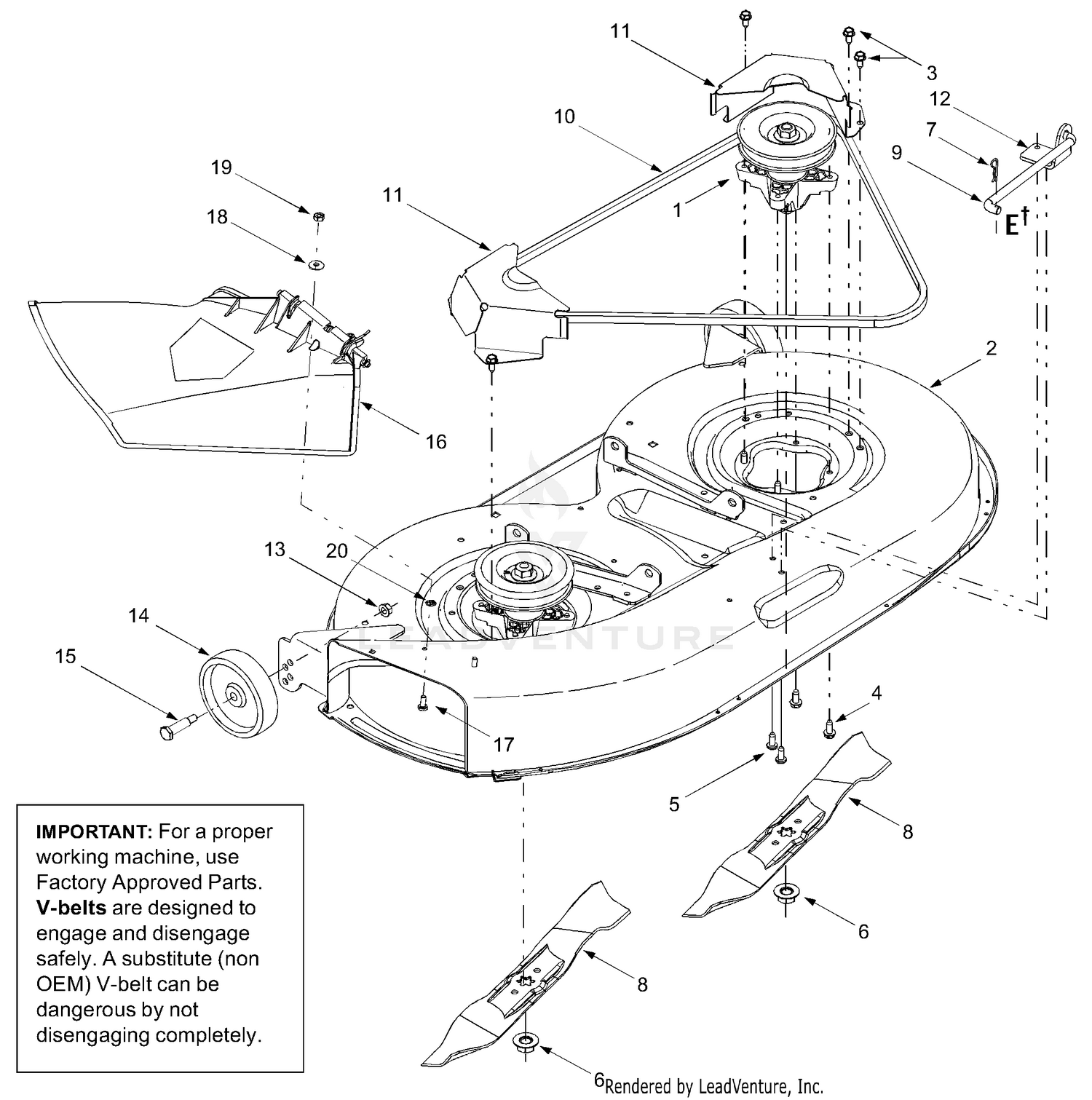

| Ref | Part Number | Description |
|---|
| 1 |
918-0142C |
Blade Spindle Ass'y. This part replaces 618-0142A. Price: $124.63 |
| 3 |
710-0726 |
Self-tapping Screw, 5/16-12 x .75 Price: $3.82 |
| 4 |
710-1260A |
Screw, 5/16-18 x .75 Price: $3.34 |
| 5 |
710-1611B |
Self-tapping Screw, 5/16-18 x .75 Price: $5.94 |
| 6 |
712-0417A |
HEX NUT Price: $6.50 |
| 7 |
714-04023 |
Internal Cotter Pin, .080 x 1.56 Price: $3.90 |
| 9 |
947-04018A |
HANGAR DECK LINK Not Available This part replaces 747-04018. Price: |
| 10 |
954-0371A |
Upper V-belt This part replaces 754-0371A. Price: $96.40 |
| 11 |
783-04149B |
Belt Cover Price: $19.71 |
| 12 |
783-04211-0637 |
Anti-sway Stabilizer Bracket This part replaces 783-04211. Price: $13.00 |
| 13 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 14 |
734-06265 |
DECK WHEEL (5.0 DIA X 1.38) This part replaces 734-0973. Price: $11.69 |
| 15 |
938-0373 |
Shoulder Bolt, .496 x 1.525:3/8-16 This part replaces 738-0373. Price: $8.45 |
| 16 |
631-05229 |
CHUTE ASSEMBLY This part replaces 731-1032B. Price: $71.37 |
| 17 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 18 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 19 |
712-3006 |
HEX NUT Price: $4.05 |
