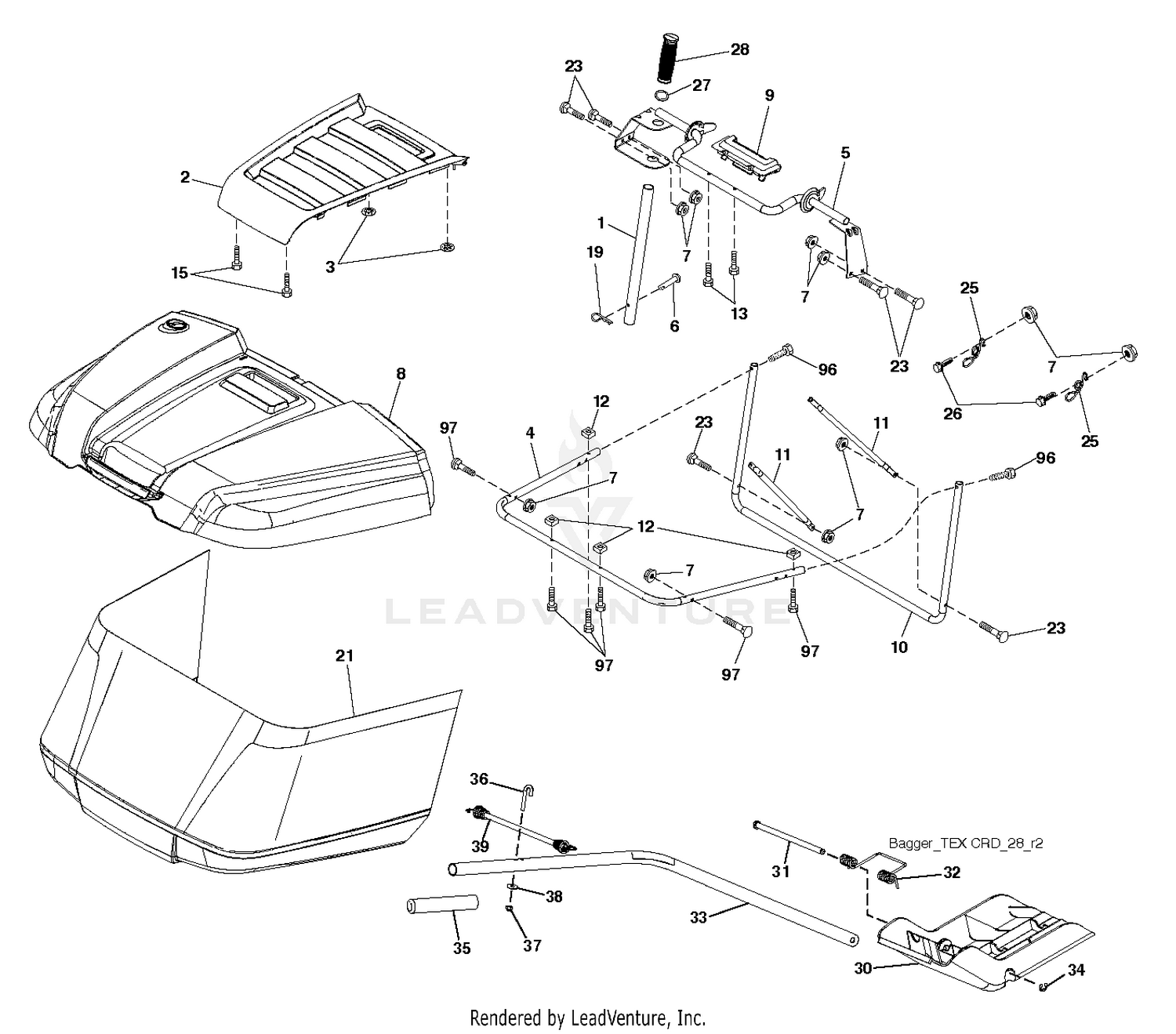

| Ref | Part Number | Description |
|---|
| 1 |
531151701 |
SERVICE KIT TUBE TUBE.HANDLE.B This part replaces 532428610. Price: $14.99 |
| 2 |
532441358 |
APPLIQUE.TOP.BAG.SRD.ORANGE Price: $34.99 |
| 3 |
583343001 |
NUT.PUSH.156 This part replaces 532413808. Price: $2.99 |
| 4 |
579785402 |
BAGGER SWAGE TUBE HANDLE ASSY This part replaces 579785401. Price: $44.99 |
| 5 |
583365901 |
FRAME.ASM.TOP.BAGGER.SRD This part replaces 532417632. Price: $89.99 |
| 7 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 8 |
583503801 |
SRD.BAGGER.TOP.SUB.ASM This part replaces 532441261. Price: $119.99 |
| 9 |
583365801 |
INSERT.HANDLE.BAGGER.SRD This part replaces 532417629. Price: $22.99 |
| 10 |
585384501 |
FRAME FRONT TUBE TEX CRD BLACK This part replaces 532436770. Price: $37.99 |
| 11 |
583511601 |
BRACE.SIDE.TUBE.TEX/CRD.BLACK This part replaces 532436771. Price: $11.99 |
| 12 |
583391701 |
NUT.SQUARE.1/4 This part replaces 532421793. Price: $3.99 |
| 13 |
583391201 |
SCREW.1/4X1.150.HXWSH This part replaces 532421780. Price: $2.99 |
| 15 |
583392101 |
SCREW,#8.FLAT.HEAD.DRILL.TIP This part replaces 532421801. Price: $3.99 |
| 19 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 21 |
583595201 |
SUBASM.TCRD2 GEN.HUSQ.BAGGER This part replaces 532448306. Price: $119.99 |
| 23 |
872040410 |
BOLT Price: $3.99 |
| 25 |
583389801 |
SPRING.LATCH.BAGGER.SRD (3 2) This part replaces 532421614. Price: $3.99 |
| 26 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 27 |
583387201 |
GROMMET.RUBBER.SRD This part replaces 532421262. Price: $3.99 |
| 28 |
532165787 |
GRIP.HANDLE.BLACK Price: $5.99 |
| 30 |
583519701 |
PLUG.97CM.TEX.CRD.MULCH This part replaces 532437452. Price: $19.99 |
| 31 |
593889501 |
Pins Price: $4.99 |
| 32 |
584455101 |
SPRING.DOUBLE.TORSION.SPRING This part replaces 532437454. Price: $11.99 |
| 33 |
583531101 |
SHAFT.TEX.CRD.MULCH.PLUG This part replaces 532438451. Price: $29.99 |
| 34 |
532437988 |
E-RING.5/16" Price: $7.99 |
| 35 |
583539101 |
GRIP.MULCH.PLUG.HAND. This part replaces 532439139. Price: $11.99 |
| 36 |
594093401 |
Bolts Price: $5.99 |
| 37 |
532069180 |
LOCKNUT Price: $2.99 |
| 38 |
819070818 |
WASHER Price: $5.99 |
| 39 |
583539501 |
BUNGEE.TEX.CRD This part replaces 532439242. Price: $12.99 |
| 96 |
501406601 |
SCREW.HEXCAP.1/4X-20X1.500 Price: $4.99 |
| 97 |
590105701 |
SCREW.TORX.BUTN.HD.1/4-20-1.5" Price: $4.99 |
