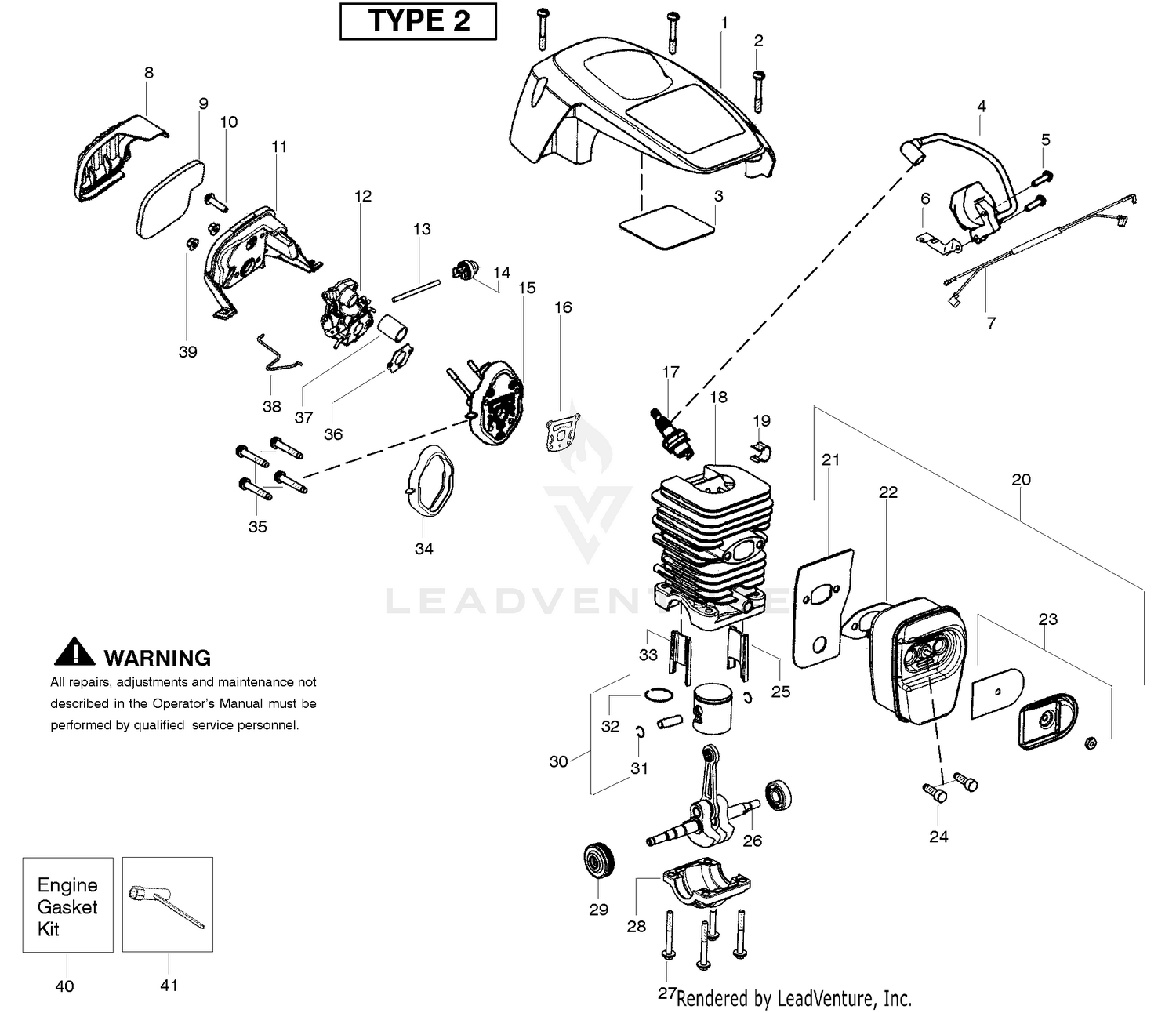

| Ref | Part Number | Description |
|---|
| 2 |
530016153 |
Screw Price: $1.99 |
| 3 |
530059006 |
Reflector-Tape Price: $1.99 |
| 4 |
545090601 |
Module - Ignition Price: $14.99 |
| 5 |
530016432 |
Screw Price: $1.99 |
| 6 |
530047442 |
Strap-Ground Price: $1.99 |
| 7 |
530057943 |
Assy-Wire Harness Price: $5.99 |
| 8 |
530058687 |
Cover-Air Filter Price: $4.99 |
| 9 |
530057925 |
Filter-Air Price: $0.99 |
| 10 |
530016425 |
Screw Price: $1.99 |
| 10 |
98-9705 |
STARTER ASM Price: $663.57 |
| 11 |
530057892 |
Housing-Air Filter Price: $4.99 |
| 12 |
545070601 |
Carb-Zama W-26B This part replaces 530035590. Price: $27.99 |
| 13 |
530069216 |
Kit-Fuel Line (Large) Price: $3.99 |
| 14 |
530047721 |
Bulb-Purge "snap-in" Price: $3.99 |
| 16 |
530071894 |
Gasket-cyl. o-ring (kit) Price: $6.99 |
| 17 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.69 |
| 19 |
530016136 |
Clip-High Tension Lead Price: $1.99 |
| 20 |
104-8608 |
YOKE ASM Price: $437.88 |
| 21 |
530057942 |
Backplate-Muffler Price: $5.99 |
| 22 |
530071894 |
Gasket-Muffler (kit) Price: $6.99 |
| 23 |
545006056 |
Kit-Spark Arrestor Price: $6.99 |
| 24 |
530016338 |
Bolt-Muffler Price: $1.99 |
| 25 |
545015301 |
Insert-Left (black) Cyl. Price: $2.99 |
| 26 |
545112901 |
Assy-Crankshaft/Rod Price: $46.99 |
| 27 |
530016417 |
Bolt Price: $1.99 |
| 28 |
530057941 |
Cap-Crankcase Price: $5.99 |
| 29 |
530056363 |
Assy-Bearing/Seal Price: $11.99 |
| 30 |
98-7742 |
ARMATURE ASM Price: $819.15 |
| 31 |
530015697 |
Retainer-Piston Pin Price: $1.99 |
| 32 |
545160401 |
Ring-Piston This part replaces 530038729. Price: $2.99 |
| 33 |
545015401 |
Insert-Right (gray) Cyl. Price: $2.99 |
| 34 |
530071894 |
Seal-Adaptor (kit) Price: $6.99 |
| 35 |
530016426 |
Screw Price: $1.99 |
| 36 |
530071894 |
Gasket-Carb. (kit) Price: $6.99 |
| 37 |
530057926 |
Tube-Intake Price: $1.99 |
| 38 |
530057909 |
Wire-Throttle Price: $1.99 |
| 39 |
530016101 |
Nut-Carb. Price: $1.99 |
| 40 |
98-7744 |
BEARING Price: $35.64 |
| 41 |
530031163 |
Wrench-Bar Price: $4.99 |
| 50 |
98-7743 |
BEARING Price: $37.48 |
| 60 |
99-8373 |
CLUTCH-RUNNING, OVER Price: $691.80 |
| 70 |
99-8374 |
FRAME-END, DRIVE Price: $73.04 |
| 80 |
105-3746 |
MAGNETIC SWITCH ASM Price: $689.29 |
| 90 |
98-7748 |
FRAME-END Price: $82.65 |
| 100 |
98-7749 |
BRUSH HOLDER ASM Price: $91.05 |
| 110 |
98-7750 |
SPRING-BRUSH Price: $2.38 |
| 120 |
98-7751 |
GEAR Price: $43.51 |
| 130 |
98-7752 |
RETAINER Price: $4.35 |
| 140 |
98-7753 |
ROLLER Price: $1.00 |
| 150 |
98-7754 |
SPRING Price: $4.70 |
| 160 |
98-7755 |
BALL Price: $0.42 |
| 170 |
98-7756 |
BOLT Price: $2.64 |
| 180 |
98-7757 |
O-RING Price: $24.98 |
| 190 |
100-9240 |
BOLT Price: $7.23 |
| 200 |
98-7758 |
BOLT ASM Price: $4.90 |
| 210 |
99-8375 |
COVER Price: $24.86 |
| 220 |
99-8371 |
NUT-HEX Price: $3.75 |
| 230 |
98-9711 |
CORD-SOLENOID, STOP Price: $12.05 |
| 240 |
99-8376 |
NUT-HEX Price: $7.28 |
| 250 |
98-7759 |
PIPE-DRAIN Price: $28.84 |
| 260 |
250-4 |
TIE-CABLE This part replaces 98-9712. Price: $0.61 |
