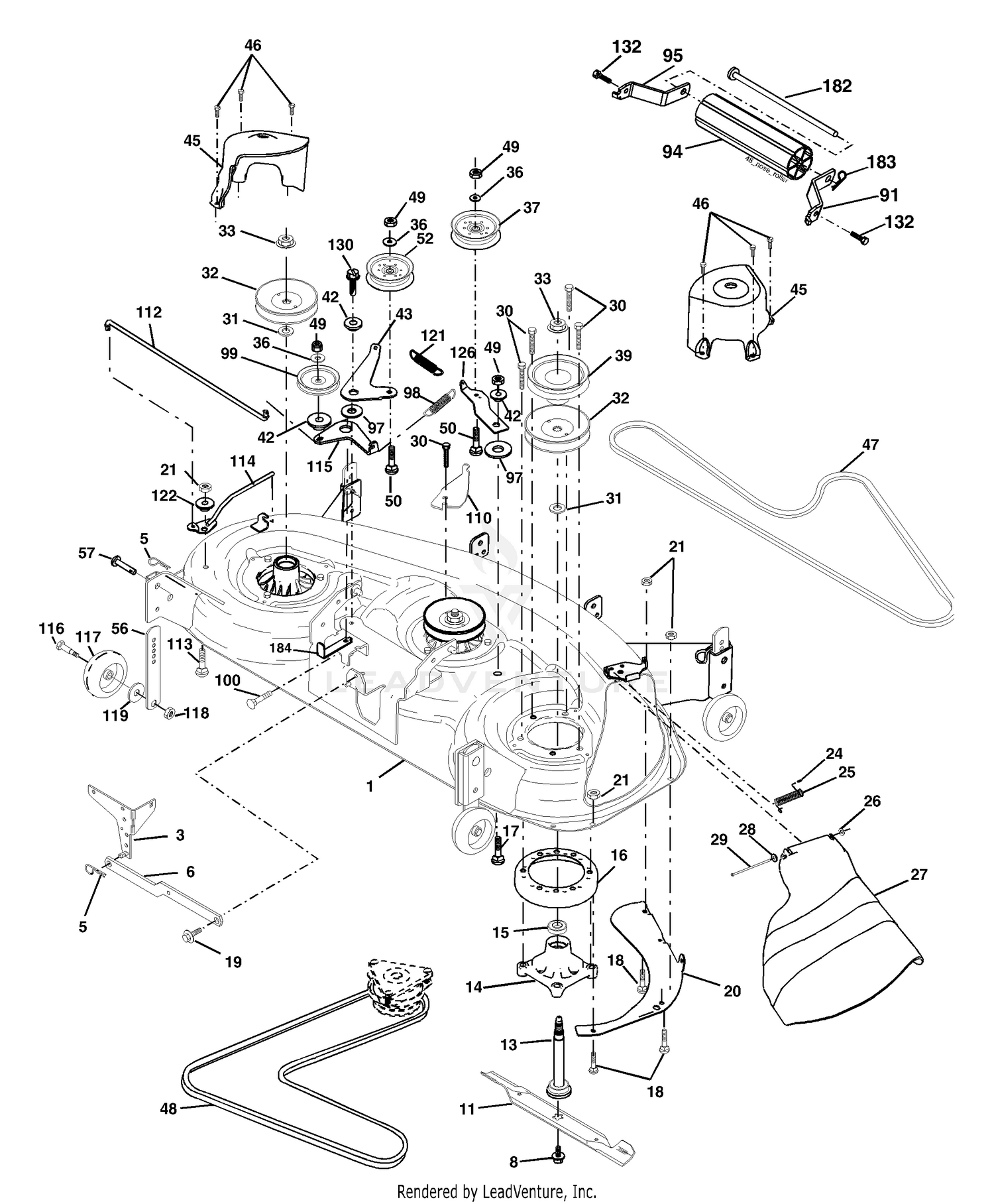

| Ref | Part Number | Description |
|---|
| 1 |
532184233 |
DECK.SVC.4.GA.WHLS.48".BLK This part replaces 532180358. Price: $349.99 |
| 1 |
82-6490 |
HOSE Price: $83.18 |
| 2 |
92-7562 |
HOSE ASM Price: $71.47 |
| 3 |
237-21 |
O-RING Price: $0.70 |
| 3 |
532178915 |
BRACKET ASM. Price: $22.99 |
| 4 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 5 |
237-78 |
O-RING Price: $3.85 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
531149301 |
SERVICE KIT BAR BAR SWAY DECK. This part replaces 532178024. Price: $9.99 |
| 6 |
93-7489 |
ORIFICE VALVE ASM Price: $191.40 |
| 7 |
94-8043 |
STRAIGHT THREAD UNION This part replaces 93-7597. Price: $17.17 |
| 8 |
237-42 |
O-RING Price: $2.78 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 532174365. Price: $6.99 |
| 9 |
237-30 |
O-RING Price: $2.50 |
| 10 |
92-7479 |
Asm-Tube Price: Call Us |
| 11 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 12 |
92-7591 |
DISCONTINUED Price: Call Us |
| 13 |
532174360 |
SHAFT ASM W/LOWER BEARING Price: $39.99 |
| 13 |
92-7418 |
CEC FRONT MANIFOLD BLOCK Price: $4,179.78 |
| 14 |
354-77 |
FITTING-QUICK Price: $55.94 |
| 14 |
532174358 |
HOUSING, MANDREL 48" Price: $49.99 |
| 15 |
354-79 |
CAP-DUST Price: $7.81 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532174493. Price: $6.99 |
| 16 |
92-7491 |
HOSE ASM Price: $111.21 |
| 17 |
340-4 |
FITTING-STRAIGHT Price: $11.58 |
| 17 |
596987501 |
Bolts This part replaces 872110610. Price: $3.99 |
| 18 |
237-79 |
O-RING Price: $5.46 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 19 |
92-7557 |
FRONT COOLER TUBE ASM Price: $71.65 |
| 20 |
237-65 |
O-RING Price: $2.50 |
| 20 |
531167501 |
SERVICE KIT BAFFLE BAFFLE This part replaces 532174378. Price: $12.99 |
| 21 |
340-139 |
FITTING-ELBOW 90 Price: $117.76 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
237-81 |
O-RING Price: $2.76 |
| 23 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 24 |
93-1264 |
DISCONTINUED Price: Call Us |
| 24 |
93-9197 |
DISCONTINUED Price: Call Us |
| 24 |
94-4580 |
DECAL - BACKLAP SWITCH,JA Price: $31.11 |
| 25 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 25 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $4.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 26 |
92-7519-01 |
BRACKET-MANIFOLD BLOCK This part replaces 92-7519. Price: $57.65 |
| 27 |
33104-016 |
SCREW-HHF Price: $0.97 |
| 27 |
532180655 |
DEFLECTOR.ASM.BLACK.48" This part replaces 532181707. Price: $39.99 |
| 28 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: $5.99 |
| 28 |
93-7970 |
HANGER-HOSE Price: $16.96 |
| 29 |
3217-6 |
NUT-HEX Price: $1.19 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 30 |
94-3090 |
HARNESS - WIRE, MAIN Price: $1,957.31 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 31 |
93-7487 |
DISCONTINUED Price: Call Us |
| 32 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532177865. Price: $14.99 |
| 33 |
321-36 |
SCREW-HH Price: $1.83 |
| 33 |
596134801 |
Nuts This part replaces 532178342. Price: $1.00 |
| 34 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 35 |
139-5984 |
CONTROLLER-ELECTRONIC This part replaces 92-5720. Price: $2,183.63 |
| 36 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 36 |
93-8053 |
DECAL Price: $14.96 |
| 37 |
532177968 |
PULLEY.IDLER.FLAT Price: $27.99 |
| 37 |
93-4222 |
DRAIN RETURN TUBE ASM Price: $85.32 |
| 38 |
237-22 |
O-RING Price: $2.43 |
| 39 |
532174375 |
PULLEY.DRIVEN.DECK.48' Price: $34.99 |
| 39 |
94-1447 |
STEERING RETURN TUBE ASM Price: $79.79 |
| 40 |
93-4217 |
DISCONTINUED Price: Call Us |
| 41 |
93-4216 |
TUBE ASM Price: $98.51 |
| 42 |
532165723 |
SPACER.RETAINER.MOWER Price: $5.99 |
| 42 |
92-7565 |
HOSE ASM Price: $89.51 |
| 43 |
532174373 |
ARM, IDLER SECONDARY Price: $9.99 |
| 45 |
532180806 |
COVER.MANDREL.DECK.48" Price: $12.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
532180808 |
V-BELT, 48"SECONDARY Price: $49.99 |
| 48 |
532174368 |
V-BELT PRIMARY 48" Price: $49.99 |
| 49 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 50 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 52 |
596481401 |
Pulleys This part replaces 532175820. Price: $22.99 |
| 56 |
532155986 |
BAR.ADJUST.WHEEL.ANTI.SCALP.BL Price: $17.99 |
| 57 |
532156941 |
RIVET.PIN.HEAD.YELLOW. Price: $4.99 |
| 91 |
529846201 |
SERVICE KIT BRKT.NOSEROLLER.RH This part replaces 532180535. Price: $5.99 |
| 94 |
532176066 |
NOSE ROLLER 48" Price: $11.99 |
| 95 |
529846101 |
SERVICE KIT BRKT.NOSEROLLER.LH This part replaces 532180534. Price: $5.99 |
| 97 |
532178515 |
WASHER Price: $5.99 |
| 98 |
532179479 |
SPRING PRIMARY DRIVE Price: $3.99 |
| 99 |
532193195 |
PULLEY.V.IDLER This part replaces 532184058. Price: $49.99 |
| 100 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 110 |
532175016 |
ARM, SPRING SECONDARY Price: $4.99 |
| 112 |
532174387 |
LEVER, TENSION RELIEF LINK Price: $14.99 |
| 113 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 Price: $3.99 |
| 114 |
532174384 |
LEVER ASM, TENSION RELIEF Price: $8.99 |
| 115 |
532174609 |
ARM, SPRING TENSION RELIEF Price: $4.99 |
| 116 |
596434404 |
Bolts This part replaces 532184219. Price: $4.99 |
| 117 |
532133957 |
WHEEL GAGE DONUT Price: $11.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 121 |
532174371 |
SPRING.DRIVE.SECONDARY.48".DEC Price: $5.99 |
| 122 |
532174606 |
BUSHING, PIVOT TENSION RELIEF Price: $3.99 |
| 126 |
532174372 |
ARM, IDLER PRIMARY DECK Price: $9.99 |
| 130 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 132 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 182 |
594092501 |
Rods This part replaces 532179127. Price: $5.99 |
| 183 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
| 184 |
532173979 |
KEEPER BELT IDLER PLATED Price: $4.99 |
