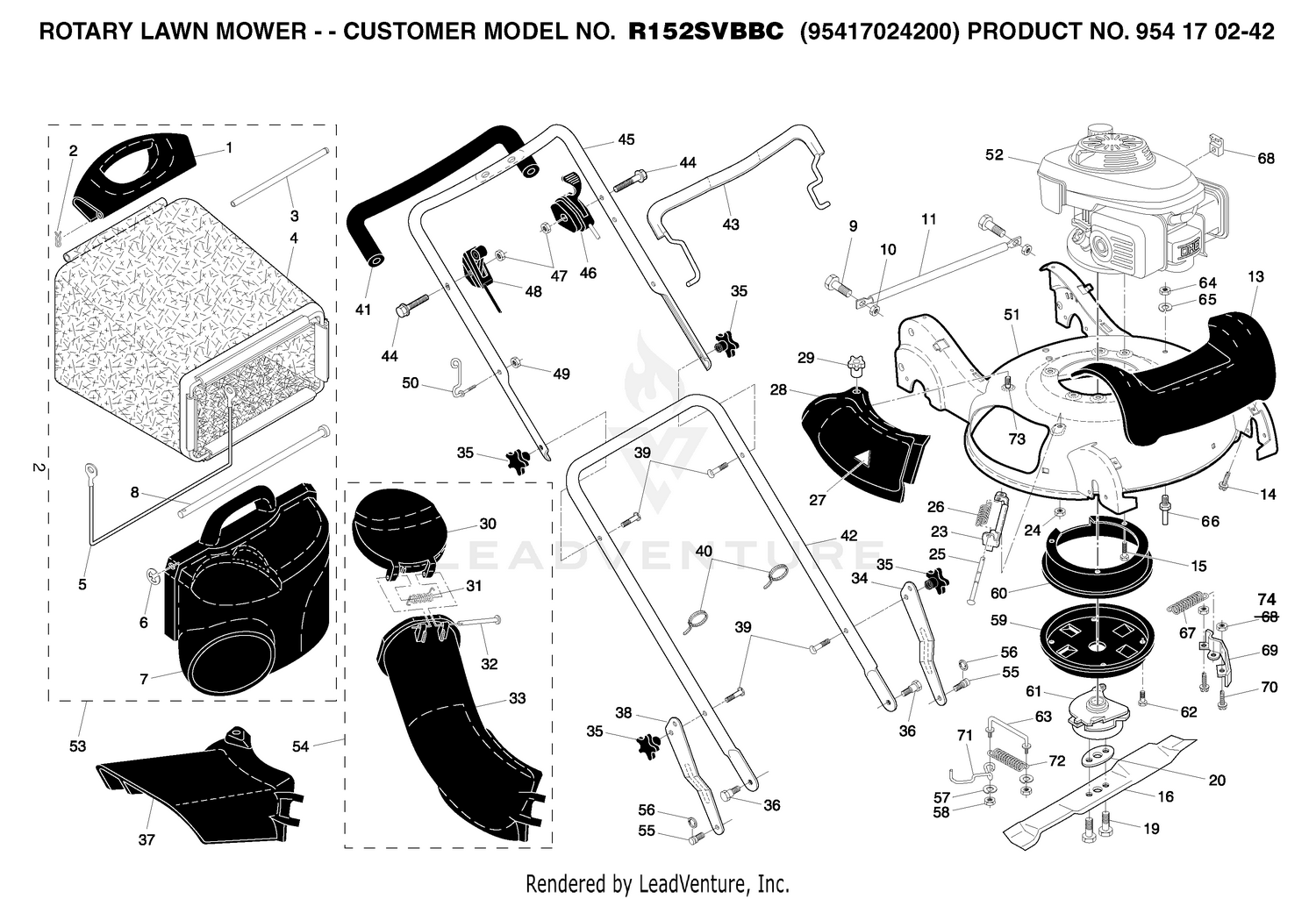

| Ref | Part Number | Description |
|---|
| 1 |
532190582 |
HANDLE.GRASSBAG.REAR.H-GRAY Price: $12.99 |
| 2 |
532065322 |
COTTER PIN (3 2)(2 2MC) Price: $3.99 |
| 3 |
532183483 |
ROD.REAR.HANDLE.YELLOW Price: $4.99 |
| 4 |
532194086 |
NEEDS DESCRIPTION Price: Call Us |
| 6 |
812000014 |
E-RING Price: $3.99 |
| 7 |
532188498 |
DOOR.GRASSBAG.H-GRAY This part replaces 532190581. Price: $43.99 |
| 8 |
532183479 |
ROD, PIVOT Price: $12.99 |
| 9 |
872140405 |
BOLT T Price: $3.99 |
| 10 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 11 |
532188359 |
TUBE.SKIRT.HV.RWGD.BLACK This part replaces 532190692. Price: $27.99 |
| 13 |
586531501 |
COVER.FRONT.21.HI-VAC.BLK This part replaces 532190519. Price: $9.99 |
| 14 |
532194189 |
SCREW.HWH.13-16-5.8.BZP This part replaces 532184572. Price: $4.99 |
| 15 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 16 |
532180459 |
BLADE.21".BBC Price: $22.99 |
| 19 |
532193407 |
NEEDS DESCRIPTION Price: Call Us |
| 20 |
532193409 |
NEEDS DESCRIPTION Price: Call Us |
| 23 |
532183609 |
BRACKET.ASM.HINGE Price: $4.99 |
| 24 |
532191730 |
NUT.HEX.FLANGE.1/4 This part replaces 532751152. Price: $3.99 |
| 25 |
532183445 |
ROD.HINGE.1/4"3.82" Price: $5.99 |
| 26 |
532183446 |
SPRING.MULCH.DOOR Price: $4.99 |
| 27 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532182166. Price: $3.99 |
| 28 |
532188507 |
DOOR.MULCH This part replaces 532190515. Price: $9.99 |
| 29 |
532183447 |
KNOB.MULCH.DOOR Price: $4.99 |
| 30 |
532190580 |
CHUTE.DOOR.21.HV.H-GRAY Price: $14.99 |
| 31 |
532183478 |
SPRING Price: $6.99 |
| 32 |
532183445 |
ROD.HINGE.1/4"3.82" Price: $5.99 |
| 33 |
532188504 |
DISCHARGE CHUTE, PLASTIC This part replaces 532190578. Price: $27.99 |
| 34 |
532187063 |
BRKT.ADJ.LOWER.HDL.LH This part replaces 532190619. Price: $8.99 |
| 35 |
532185588 |
KNOB.HANDLE.STAR.HUSQ.GRAY Price: $5.99 |
| 36 |
532194187 |
SCREW.5/16X.680.TRIM.H This part replaces 532183465. Price: $5.99 |
| 37 |
532185996 |
GUARD.CLIP.ON.21.HV.GRAY Price: $21.99 |
| 38 |
532190621 |
BRACKET.ADJ.LOWER.HDL.RT.GREY Price: $5.99 |
| 39 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 40 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 41 |
532182748 |
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) Price: $7.99 |
| 42 |
532187096 |
HANDLE.LOWER.GREY Price: $27.99 |
| 43 |
583754701 |
BAIL.CONTROL.HV.BBC.BLACK This part replaces 532186299. Price: $34.99 |
| 44 |
532189937 |
SCREW Price: $3.99 |
| 45 |
532186296 |
HANDLE.ASM.UPPER.W/GRIP Price: $44.99 |
| 46 |
532196541 |
CONTROL.BBC.HV.GRY/ORG Price: $49.99 |
| 47 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 48 |
532191257 |
THROTTLE CONTROL Price: $44.99 |
| 49 |
532184569 |
HEX NUT Price: $2.99 |
| 50 |
532188501 |
GUIDE.ROPE.WALK.MOWER Price: $12.99 |
| 51 |
532194088 |
NEEDS DESCRIPTION Price: Call Us |
| 53 |
532194087 |
NEEDS DESCRIPTION Price: Call Us |
| 54 |
532189014 |
CHUTE.LOWER.ASM.WALK.MOWER Price: $32.99 |
| 55 |
532194192 |
STUD.SHOULDER.T45.BZP This part replaces 532188628. Price: $4.99 |
| 56 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 57 |
532053998 |
WASHER Price: $3.71 |
| 58 |
873510600 |
NUT Price: $4.99 |
| 59 |
532188546 |
BELT COVER, LOWER This part replaces 532190931. Price: $12.99 |
| 60 |
532190930 |
COVER.BELT.BBC.AW.TOP Price: $22.99 |
| 62 |
817021008 |
SCREW This part replaces 532750097. Price: $3.99 |
| 63 |
532180188 |
LINK.TORQUE.BBC Price: $12.99 |
| 64 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 65 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 66 |
532182131 |
STUC.GUIDE.BELT.RWGD Price: $14.99 |
| 67 |
532180393 |
SPRING.BBC Price: $4.99 |
| 68 |
532190903 |
BRACKET.THROTTLE Price: $5.99 |
| 69 |
532188525 |
CLUTCH/BRAKE.BZP This part replaces 532190929. Price: $3.99 |
| 70 |
596582501 |
Bolts This part replaces 874780410. Price: $2.99 |
| 71 |
532188545 |
BELT KEEPER Price: $9.99 |
| 72 |
532180394 |
SPRING.LINK.BBC Price: $2.99 |
| 73 |
532188634 |
STUD.INSERT Price: $4.99 |
| 74 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
