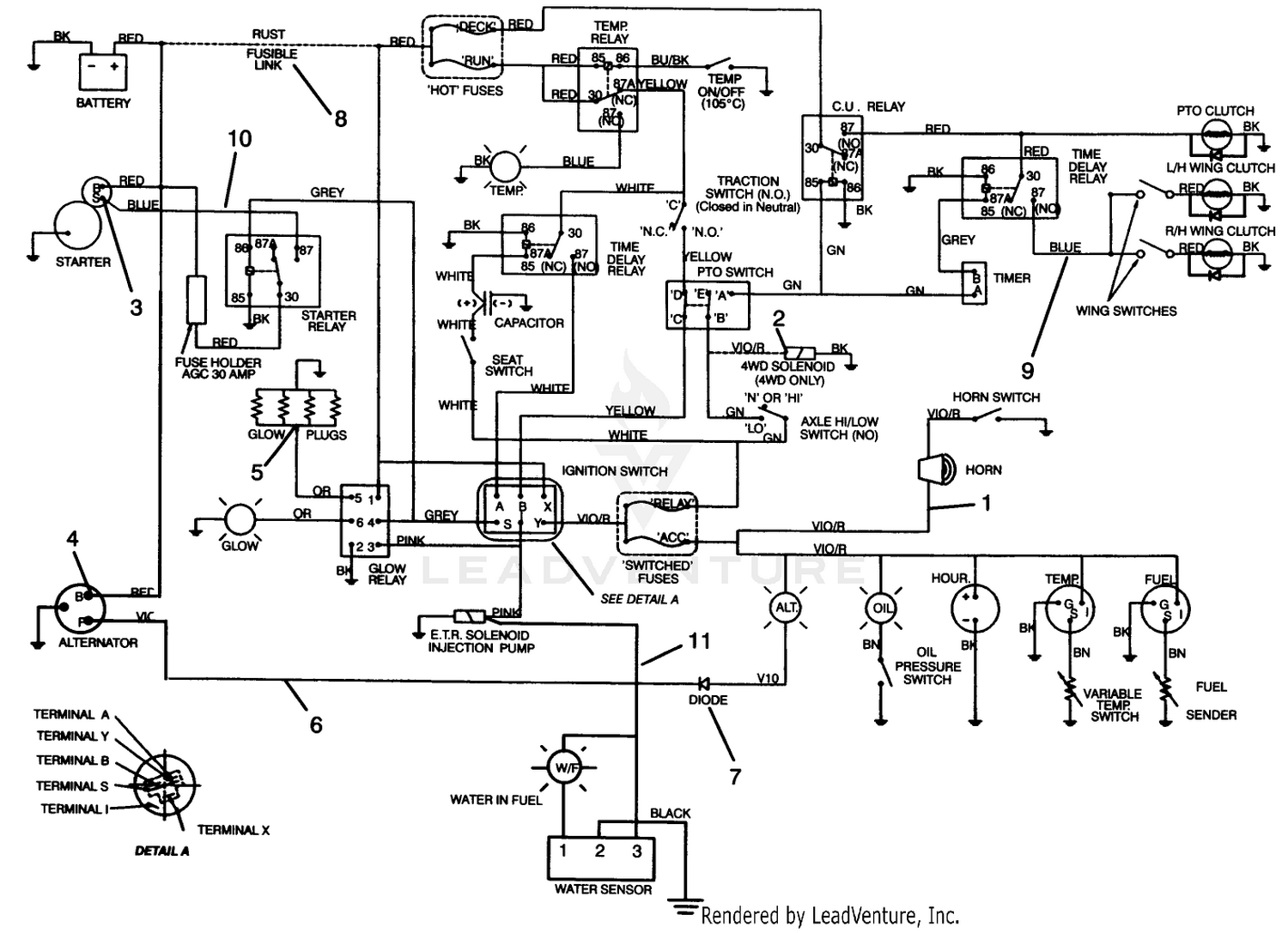

Electrical Schematic
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 86-5470 | DISCONTINUED Price: Call Us |
| 2 | 76-4880 | CONNECTOR Price: $10.76 |
| 3 | 68-9400 | NUT-FLANGE This part replaces 48-7930. Price: $2.29 |
| 4 | 48-7890 | NUT-HEX Price: $0.25 |
| 5 | 48-7880 | NUT-HEX Price: $0.25 |
| 6 | 86-5820 | DISCONTINUED Price: Call Us |
| 7 | 86-7470 | DIODE ASM Price: $27.38 |
| 8 | 67-7180 | WIRE Price: $16.80 |
| 9 | 86-1910 | WIRE HARNESS-DECK Price: $326.77 |
| 10 | 77-4200 | DISCONTINUED Price: Call Us |
