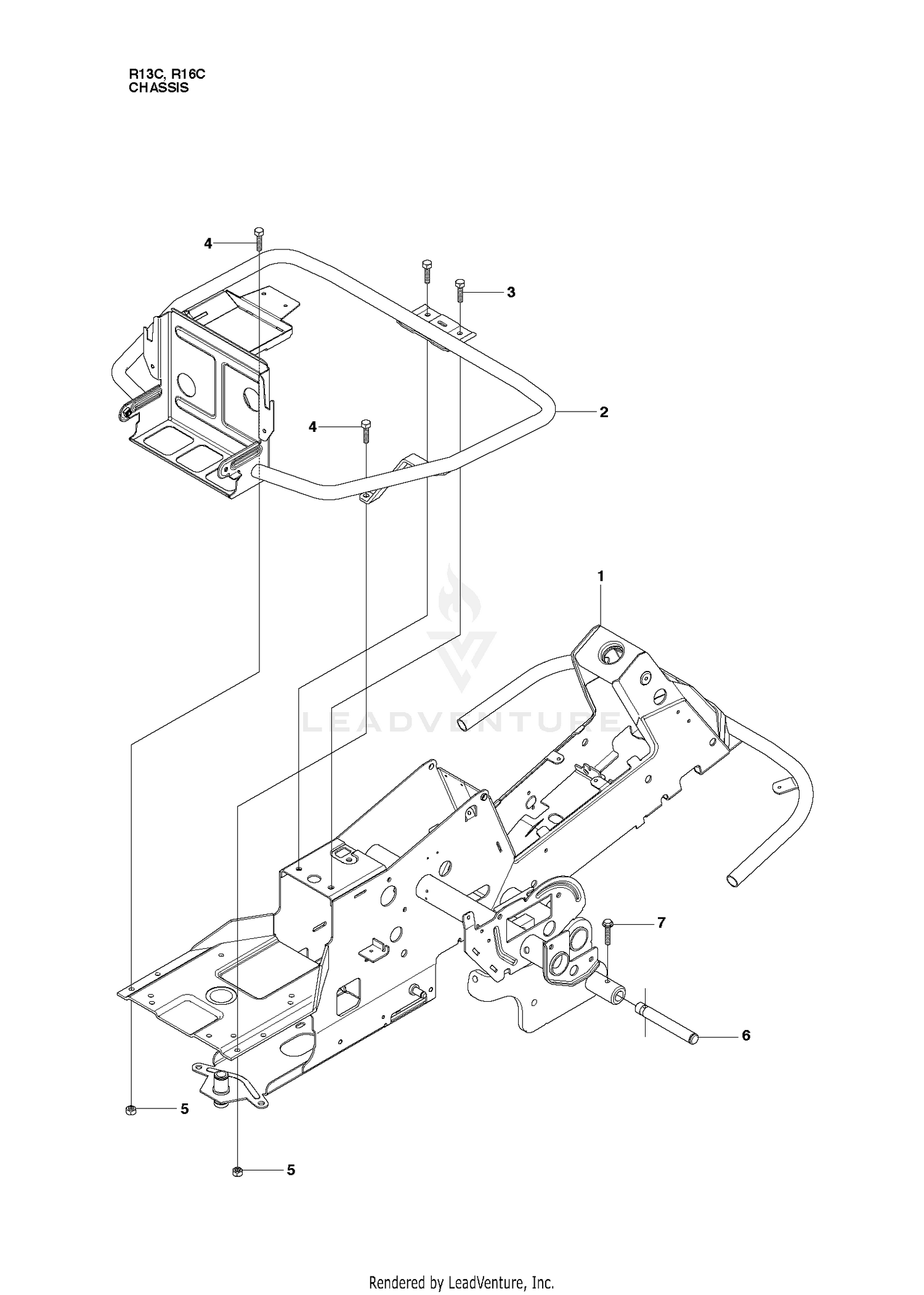

CHASSIS / FRAME
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 544842301 | FRAME Price: $699.99 |
| 1 | 92-0450-03 | BRACKET-PIN Price: $19.10 |
| 2 | 544244502 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 92-0448 | PIN-PIVOT Price: $100.36 |
| 3 | 106-5247-03 | TRACTION PEDAL ASM Price: $244.19 |
| 4 | 71-0440 | ABRASIVE-PEDAL Price: $15.80 |
| 4 | 725245171 | SCREW Price: $2.08 |
| 5 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 5 | 95-3857 | SCREW-HSBH Price: $4.09 |
| 6 | 535470801 | AXLE Price: $32.99 |
| 6 | 80-7730 | SPACER Price: $1.97 |
| 7 | 2411-36 | BEARING-END, ROD Price: $32.13 |
| 7 | 725245961 | BOLT FLANGE - M8X40\ Price: $5.99 |
| 8 | 92-7609 | SHAFT-SPRING Price: $62.79 |
| 9 | 3220-3 | NUT-HJ Price: $0.28 |
| 10 | 92-7608-03 | BRACKET-SPRING Price: $16.86 |
| 11 | 3256-5 | WASHER-FLAT Price: $0.27 |
| 12 | 92-7610 | RETAINER-SPRING Price: $26.52 |
| 13 | 32121-11 | PIN-ROLL Price: $0.47 |
| 14 | 3234-4 | SCREW-HHF Price: $0.50 |
| 15 | 104-7201 | NUT-HF Price: $0.69 |
| 16 | 321-9 | SCREW-HH Price: $0.27 |
| 17 | 33093-00 | WASHER-FLAT Price: $0.70 |
| 18 | 2411-41 | ROD END-BALL JOINT Price: $40.28 |
| 19 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 20 | 3272-7 | PIN-COTTER Price: $0.25 |
| 21 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 22 | 71-0450 | ABRASIVE-PEDAL, REAR Price: $10.39 |
| 23 | 3234-14 | SCREW-HHF Price: $0.61 |
| 24 | 256-156 | BUSHING-FLANGE Price: $12.99 |
