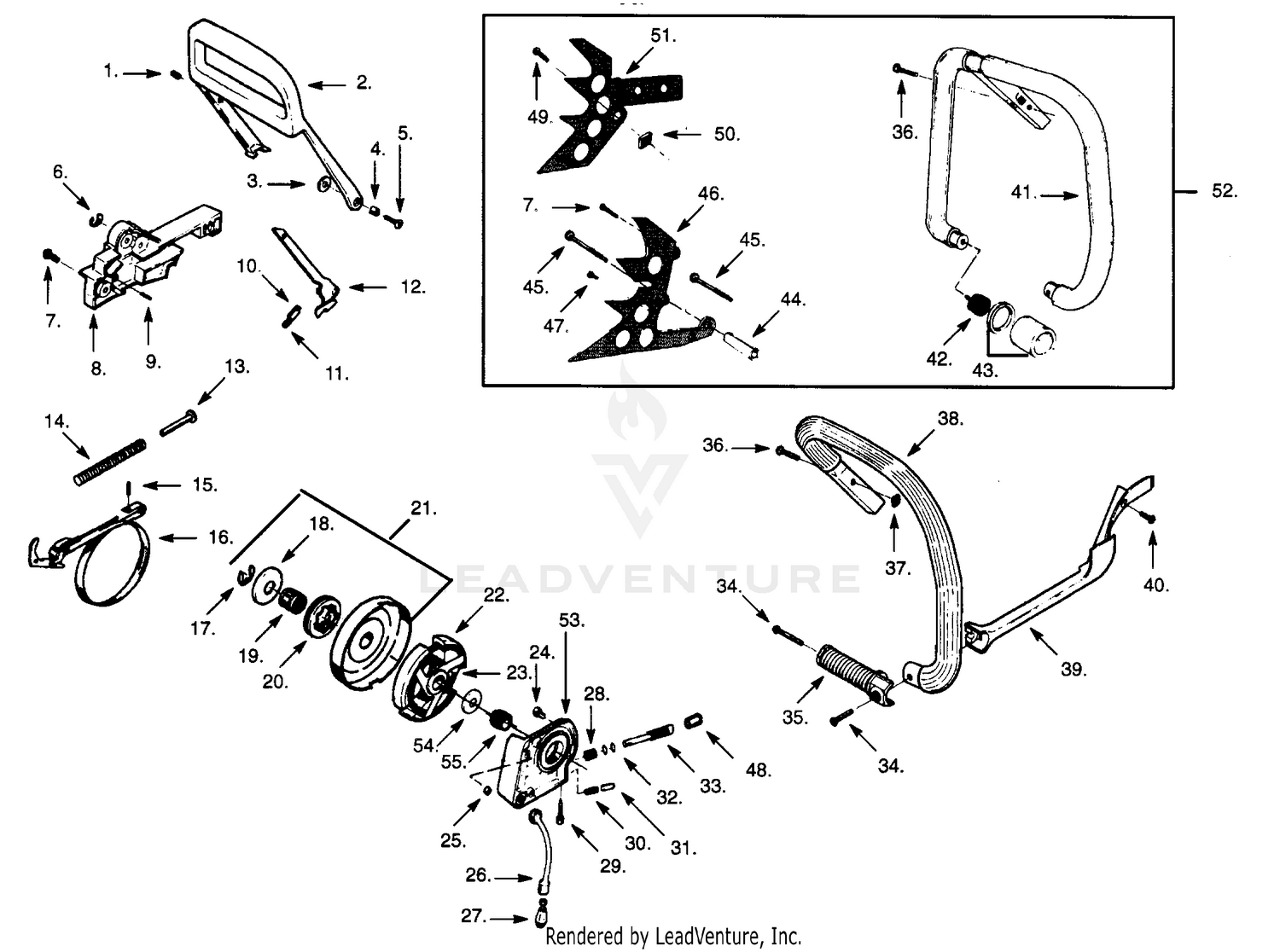

HANDLEBAR
Parts (73)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 108-9081 | RH SIDE PLATE ASM Price: $307.43 |
| 1 | 721430350 | Pin Price: $1.99 |
| 2 | 108-9080 | LH SIDE PLATE ASM Price: $307.43 |
| 2 | 506093802 | Actuator Price: $24.99 |
| 3 | 104-3396 | SCREW-HH Price: $0.75 |
| 3 | 503234502 | Washer Price: $2.99 |
| 4 | 503436101 | Bushing Price: $2.99 |
| 4 | 99-8662 | TUBE-SPRING Price: $21.55 |
| 5 | 3218-5 | NUT-JAM Price: $0.27 |
| 5 | 503200225 | Screw Price: $1.99 |
| 6 | 735311020 | E-Clip Price: $1.99 |
| 6 | 87-7270 | WASHER-THRUST Price: $0.89 |
| 7 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 7 | 503200216 | Screw Price: $2.99 |
| 8 | 3290-357 | NUT-HHF, WHIZ Price: $0.61 |
| 8 | 506093401 | Brake Housing Price: $5.99 |
| 9 | 108-9084 | SPRING-COMPRESSION Price: $17.61 |
| 9 | 720127050 | Pin Price: $2.99 |
| 10 | 503436701 | Block Price: $8.99 |
| 11 | 503436501 | Spring Price: $3.99 |
| 12 | 110-4069 | BRACKET Price: $5.57 |
| 12 | 503436901 | Actuator Arm Price: $12.99 |
| 13 | 503435801 | Pin Price: $2.99 |
| 14 | 503408101 | Spring Price: $3.99 |
| 14 | 92-2762 | PIN-HAIR Price: $1.09 |
| 15 | 119-4162 | SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 15 | 720123500 | Pin Price: $0.99 |
| 16 | 119-8010-03 | KICKSTAND Price: $34.60 |
| 16 | 506094502 | Band Price: $37.99 |
| 17 | 107-7400 | PIN-LYNCH Price: $9.56 |
| 17 | 503272101 | E-Clip Price: $2.99 |
| 18 | 110-4058 | BRACKET-CHAIN Price: $32.43 |
| 18 | 503752401 | Cup Washer Price: $3.99 |
| 19 | 107-2951 | FRAME Price: $239.55 |
| 19 | 503432001 | Clutch Bearing Price: $12.99 |
| 20 | 107-2979 | BOLT-SHOULDER Price: $3.94 |
| 20 | 505303661 | Rim-3/8x8 Price: $12.13 |
| 21 | 3234-19 | SCREW-HHF Price: $1.73 |
| 22 | 503524601 | Clutch Ass'y. Price: $54.99 |
| 22 | 67-9410 | WASHER Price: $2.04 |
| 23 | 108-4279 | SPACER-FRAME Price: $8.34 |
| 23 | 503560401 | Clutch Spring Price: $4.99 |
| 24 | 108-4284 | TUBE-SUPPORT Price: $60.29 |
| 24 | 725524355 | Screw Price: $3.33 |
| 25 | 106-3937 | CARRIER FRAME ASM Price: $489.45 |
| 25 | 501288501 | Seal Ring Price: $4.99 |
| 26 | 503426701 | Oil Pickup Tube Price: $11.99 |
| 27 | 501544102 | Oil Pickup Price: $9.99 |
| 28 | 503615801 | Spring Price: $3.33 |
| 29 | 503421301 | Adjusting Screw Price: $4.99 |
| 30 | 503422401 | Spring Price: $3.99 |
| 31 | 503421401 | Pin Price: $4.99 |
| 32 | 503230054 | Washer Price: $1.99 |
| 33 | 503421202 | Pump Piston Price: $14.99 |
| 34 | 503210632 | Screw Price: $3.99 |
| 35 | 503428201 | Spring Price: $22.99 |
| 36 | 503200230 | Screw Price: $2.99 |
| 37 | 503226504 | NUT This part replaces 503226501. Price: $2.99 |
| 38 | 503425802 | Handlebar Price: $54.99 |
| 39 | 503425102 | Brace Price: $17.99 |
| 40 | 503210619 | Screw Price: $1.99 |
| 41 | 503435702 | Handlebar Price: Call Us |
| 42 | 504125014 | Mount Price: $32.99 |
| 43 | 503437401 | Spacer Price: $8.99 |
| 44 | 506132802 | Spacer Price: Call Us |
| 45 | 503200265 | Screw Price: $3.99 |
| 46 | 503434201 | Inner Spur Price: $17.99 |
| 47 | 503200710 | SCREW M5 X 10 This part replaces 503200210. Price: $2.99 |
| 48 | 503624901 | Dust Shield Price: $4.99 |
| 49 | 503200212 | Screw Price: $1.99 |
| 50 | 503226504 | NUT This part replaces 503226501. Price: $2.99 |
| 51 | 503434301 | Outer Spur Price: $24.99 |
| 55 | 503421501 | Pump Drive Worm Gear Price: Call Us |
