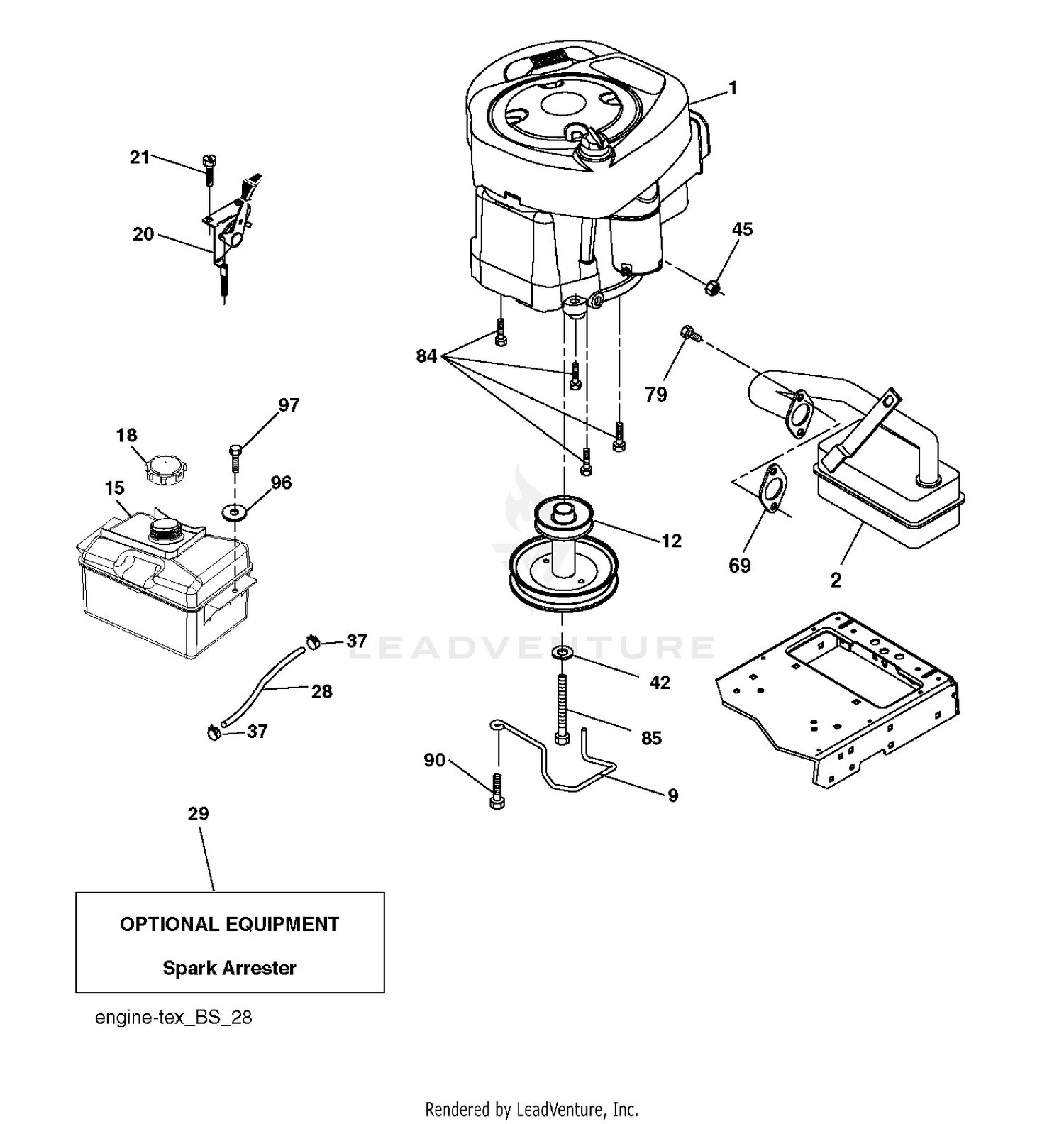

| Ref | Part Number | Description |
|---|
| 2 |
532179758 |
MUFFLER Price: $70.99 |
| 9 |
532194319 |
KEEPER.BELT.ENGINE.3.25 Price: $7.99 |
| 010 |
112-7026 |
WHEEL BEARING CASE ASM This part replaces 98-9480. Price: $196.85 |
| 12 |
532140186 |
PULLEY ENGINE Price: $55.99 |
| 15 |
581289901 |
FUEL.TANK.ASM.1.5.GAL.NON-EPA This part replaces 532407545. Price: $54.99 |
| 18 |
581075501 |
CAP.FUEL.TANK.SS/SNO.EPA.DOME This part replaces 532430220. Price: $14.99 |
| 020 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 20 |
532176636 |
CONTROL.TH/CK.C.BLACK This part replaces 532183897. Price: $22.99 |
| 21 |
532416358 |
SCREW.#10 X 0.750.BOS THREAD Price: $2.99 |
| 28 |
532137040 |
LINE.FUEL.20 Price: $3.99 |
| 29 |
532137180 |
ARRESTER SPARK (OPTIONAL) Price: $128.99 |
| 030 |
131-6554 |
GASKET-CASE, BEARING This part replaces 98-9634. Price: $7.12 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 040 |
112-7046 |
COVER-CASE, BEARING This part replaces 98-9487. Price: $66.00 |
| 42 |
539990247 |
LOCKWASHER.7/16 This part replaces 810040700. Price: $1.99 |
| 45 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 873510400. Price: $2.69 |
| 050 |
112-0180 |
SEAL-OIL This part replaces 98-9483. Price: $58.48 |
| 060 |
98-9635 |
GASKET-COVER, BEARING CASE Price: $12.61 |
| 69 |
532272293 |
Gasket Eng 1 313 Id Tin Plated This part replaces 532165291. Price: $7.99 |
| 070 |
98-9352 |
BOLT Price: $0.80 |
| 79 |
532192334 |
SCREW.SOCKET HD.5/16-1 Price: $2.99 |
| 080 |
98-7568 |
BOLT Price: $0.84 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 85 |
532150280 |
SUB= 150280 This part replaces 871170764. Price: $3.99 |
| 090 |
99-8361 |
CASE-BEARING, MAIN Price: $222.76 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 095 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 96 |
819091416 |
WASHER Price: $3.99 |
| 100 |
98-9485 |
BOLT-CASE, BEARING Price: $22.80 |
| 110 |
99-8360 |
CASE-BEARING, MAIN Price: $103.70 |
| 120 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 130 |
105-3716 |
MAIN BEARING CASE ASM Price: $289.08 |
