| Ref | Part Number | Description |
|---|
| 1 |
98-7697 |
BOLT Price: $1.08 |
| 2 |
98-7660 |
WASHER-PLAIN This part replaces 98-7698. Price: $0.28 |
| 3 |
98-7692 |
BOLT Price: $0.92 |
| 4 |
112-7047 |
STAY-DYNAMO This part replaces 98-9573. Price: $14.95 |
| 5 |
98-9584 |
PULLEY-FAN Price: $89.56 |
| 6 |
98-9360 |
BOLT Price: $2.35 |
| 7 |
99-7527 |
WASHER-SPRING This part replaces 98-9368. Price: $1.02 |
| 8 |
98-9366 |
WASHER-PLAIN Price: $0.28 |
| 9 |
98-9700 |
TERMINAL ASM Price: $3.16 |
| 10 |
98-9701 |
TERMINAL Price: $0.56 |
| 11 |
98-9702 |
SLEEVE Price: $0.56 |
| 12 |
98-9703 |
TERMINAL Price: $1.47 |
| 13 |
98-9704 |
SLEEVE Price: $2.39 |
| 14 |
98-9602 |
LOCK COUPLER ASM Price: $17.36 |
| 15 |
98-9699 |
TERMINAL Price: $0.89 |
| 16 |
98-9698 |
CONNECTOR Price: $1.83 |
| 17 |
98-9697 |
CONNECTOR Price: $3.22 |
| 18 |
98-9696 |
COUPLER ASM Price: $6.53 |
| 19 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 20 |
98-9676 |
V-BELT Price: $31.01 |
| 21 |
98-9473 |
PULLEY-DRIVE, FAN Price: $319.19 |
| 22 |
98-9585 |
BOLT Price: $15.20 |

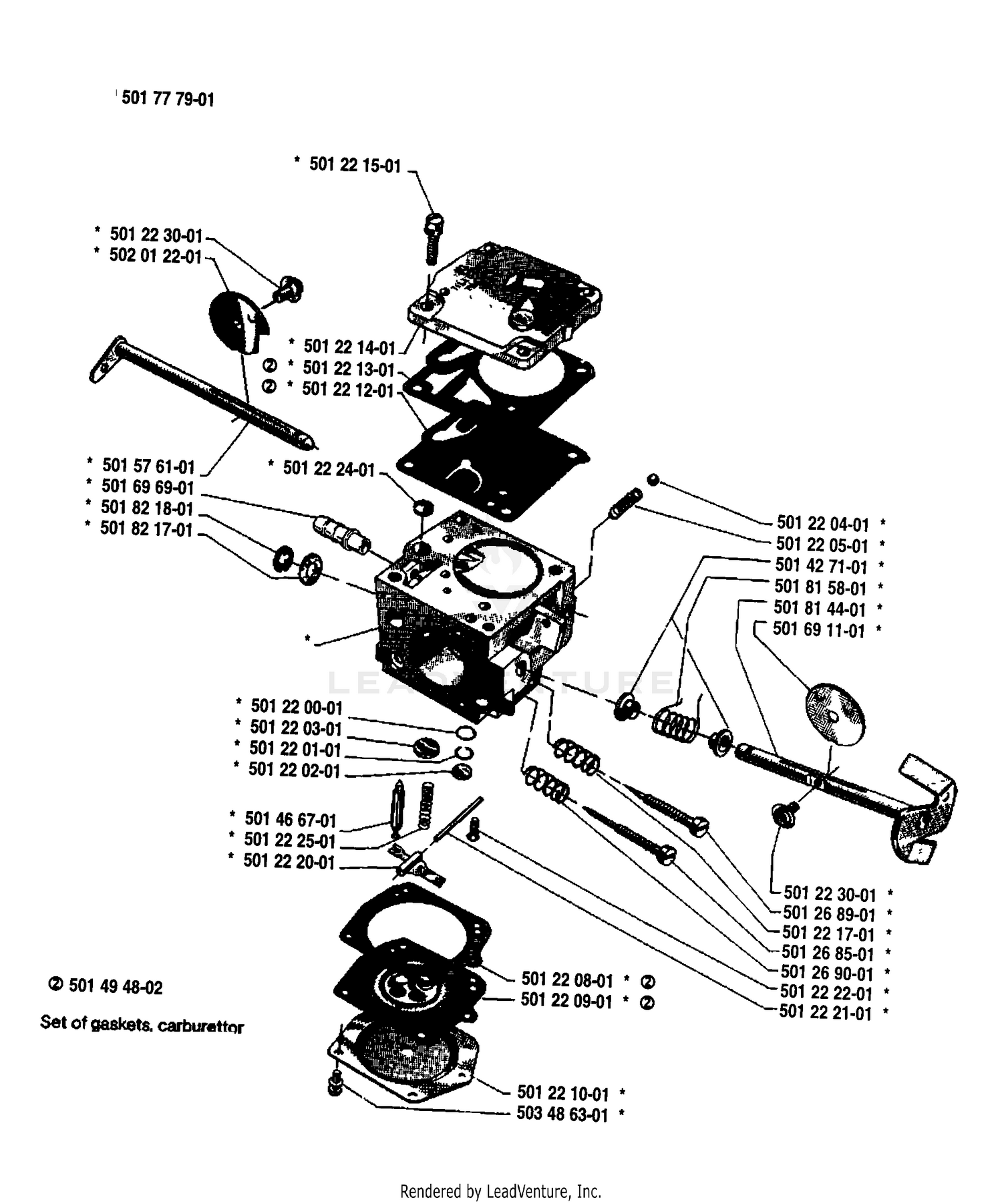

| 501220001 |
501220001 |
SCREEN Price: $0.99 |
| 501220101 |
501220101 |
LOCKING RING Price: $0.69 |
| 501220201 |
501220201 |
PLUG (TIL 179-60X) Price: $2.25 |
| 501220301 |
501220301 |
Plug Price: $0.85 |
| 501220401 |
501220401 |
BALL Price: $11.99 |
| 501220501 |
501220501 |
SPRING Price: $3.99 |
| 501220801 |
501220801 |
GASKET, METERING SIDE Price: $3.99 |
| 501220901 |
501220901 |
METERING DIAPHRAGM Price: $14.99 |
| 501221001 |
501221001 |
CAP Price: $5.99 |
| 501221201 |
501221201 |
FUEL PUMP DIAPHRAGM Price: $7.99 |
| 501221301 |
501221301 |
GASKET, PUMP SIDE Price: $3.99 |
| 501221401 |
501221401 |
CAP Price: $27.99 |
| 501221501 |
501221501 |
SCREW Price: $3.99 |
| 501221701 |
501221701 |
SPRING Price: $3.99 |
| 501222001 |
501222001 |
LEVER Price: $4.99 |
| 501222101 |
501222101 |
SHAFT Price: $6.99 |
| 501222201 |
501222201 |
SCREW Price: $1.30 |
| 501222401 |
578004601 |
FILTER This part replaces 501222401. Price: $0.99 |
| 501222501 |
501222501 |
SPRING Price: $3.99 |
| 501223001 |
503652701 |
SCREW This part replaces 501223001. Price: $4.99 |
| 501268501 |
501268501 |
IDLE ADJ. SCREW Price: $17.99 |
| 501268901 |
501268901 |
NEEDLE H Price: $6.99 |
| 501269001 |
501269001 |
SPRING Price: $4.99 |
| 501427101 |
501427101 |
Bushing Price: $1.00 |
| 501494802 |
501494802 |
DIAPHRAGM SET Price: $17.99 |
| 501576101 |
501576101 |
CHOKE SHAFT AND LEVER Price: $9.99 |
| 501691101 |
501691101 |
THROTTLE FLAP Price: $6.99 |
| 501696901 |
503801301 |
CONNECTION This part replaces 501696901. Price: $8.99 |
| 501777901 |
501777901 |
CARBURETOR Price: $129.99 |
| 501814401 |
501814401 |
THROTTLE SHAFT Price: $6.99 |
| 501815801 |
501815801 |
SPRING Price: $2.07 |
| 501821701 |
501821701 |
WASHER Price: $2.99 |
| 501821801 |
501821801 |
RETAINING RING Price: $7.99 |
| 502012201 |
502012201 |
CHOKE FLAP Price: $2.62 |
| 503486301 |
503486301 |
COVER SCREW Price: $3.99 |
