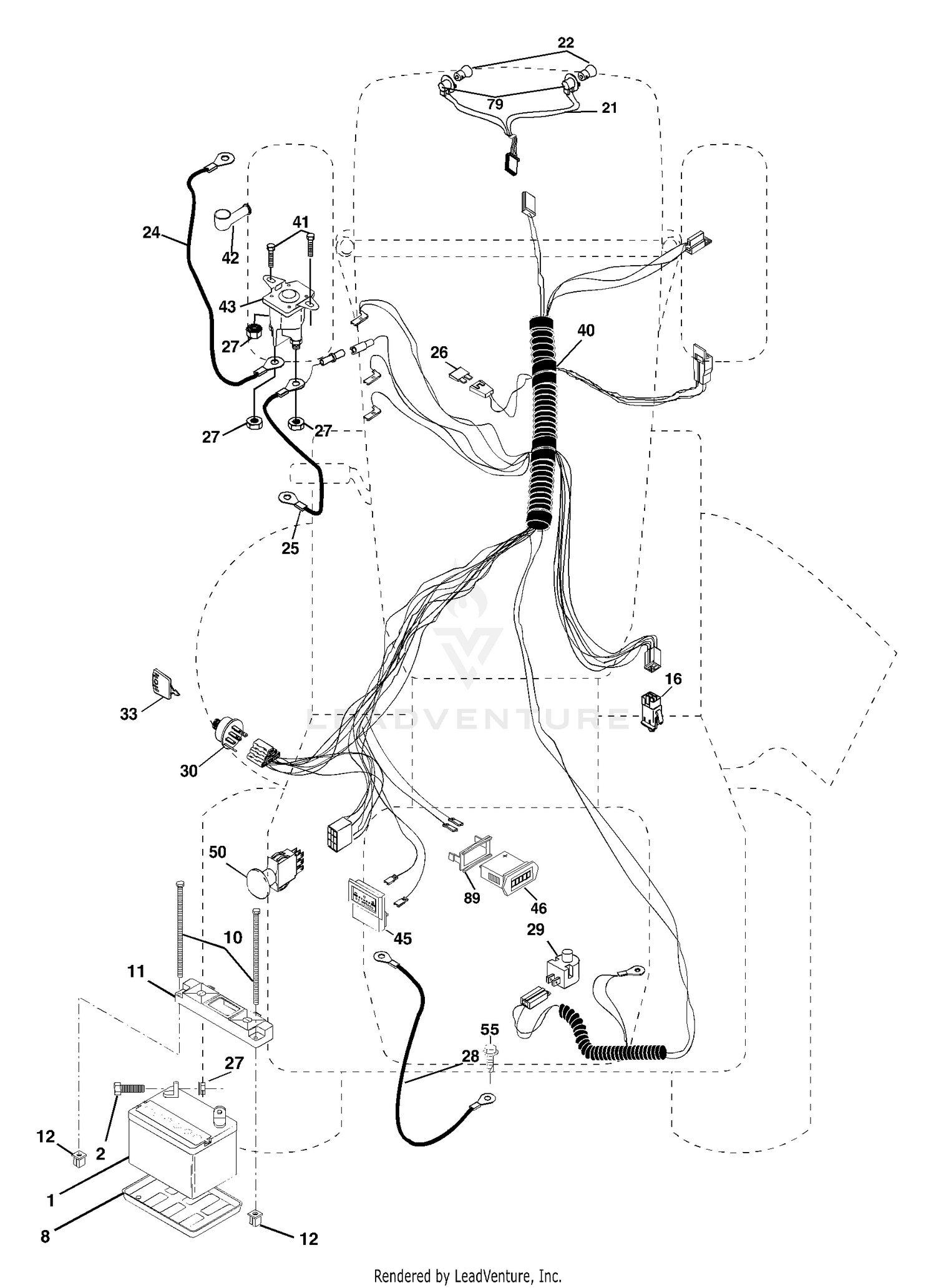

| Ref | Part Number | Description |
|---|
| 1 |
106-8059 |
KIT-ENGINE KUBOTA This part replaces 108-1361. Price: $9,147.51 |
| 1 |
163465 |
Battery Price: Call Us |
| 2 |
106-8069 |
MUFFLER-EXHAUST Price: $620.16 |
| 2 |
74760412 |
Bolt, Hex 1/4-20 x 3/4 Price: Call Us |
| 3 |
33004-00 |
NUT-HF Price: $0.34 |
| 4 |
105-2523-03 |
BRACKET-MUFFLER Price: $34.40 |
| 5 |
33114-016 |
SCREW-HH Price: $0.27 |
| 6 |
32128-37 |
NUT-HF Price: $3.63 |
| 7 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 8 |
131-1821 |
MOUNT-ENGINE This part replaces 53-9680. Price: $105.39 |
| 8 |
7603J |
Tray, Battery Price: Call Us |
| 9 |
53-9480 |
WASHER-SNUBBER Price: $3.87 |
| 10 |
145211 |
Bolt, Battery, Front 1/4-20 x 7-1/2 Price: Call Us |
| 10 |
324-11 |
SCREW-HH Price: $3.05 |
| 11 |
150109 |
Holddown, Battery, Front Price: Call Us |
| 11 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 12 |
145769 |
Nut, Push, Nylon, Battery, Front 1/4 Price: Call Us |
| 12 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 13 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 14 |
3274-106 |
SCREW-HSH Price: $5.77 |
| 15 |
105-2519-03 |
CLAMP-CRADDLE Price: $58.64 |
| 16 |
176138 |
Switch, Interlock Price: Call Us |
| 16 |
323-44 |
SCREW-HH Price: $3.69 |
| 17 |
110-9679-03 |
GUARD-ALTERNATOR Price: $63.13 |
| 18 |
105-2556-03 |
BRACE-ALTERNATOR, UPPER Price: $60.30 |
| 19 |
105-4276 |
GUIDE-BELT, PTO Price: $18.17 |
| 20 |
105-0052-03 |
BRACKET-GUIDE, BELT Price: $21.03 |
| 21 |
175688 |
Harness, Light Price: Call Us |
| 21 |
81-1280 |
SCREW-HHF Price: $1.69 |
| 22 |
4152J |
Bulb Light #1156 Price: Call Us |
| 22 |
98-9584 |
PULLEY-FAN Price: $89.56 |
| 23 |
98-9346 |
SENDER-TEMPERATURE Price: $74.58 |
| 24 |
104-4246 |
FAN-ENGINE This part replaces 107-9096. Price: $154.04 |
| 24 |
8860R |
Cable Starter Price: Call Us |
| 25 |
146148 |
Cable Price: Call Us |
| 25 |
99-8343 |
GASKET-MUFFLER This part replaces 98-9611. Price: $14.99 |
| 26 |
175158 |
Fuse Price: Call Us |
| 27 |
3257-30 |
KEY-WOODRUFF Price: $5.35 |
| 27 |
73510400 |
Nut, Hex, Keps 1/4-20 unc Price: Call Us |
| 28 |
145491 |
Cable, Ground Price: Call Us |
| 29 |
121305X |
Switch, Seat Price: Call Us |
| 29 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 30 |
175566 |
Switch, Ignition Price: Call Us |
| 30 |
38-7820 |
BEARING-BALL Price: $13.99 |
| 31 |
104-3408-03 |
HUB-FAN Price: $165.47 |
| 32 |
32136-3 |
NUT-SHH Price: $1.22 |
| 33 |
140403 |
Key Price: Call Us |
| 33 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 36 |
104-3463-03 |
FRONT MOUNT ASM Price: $103.56 |
| 37 |
104-3464-03 |
MOUNT-FRAME, FRONT (LH) Price: $44.16 |
| 38 |
43-0090 |
SCREW-HH Price: $8.05 |
| 39 |
324-6 |
SCREW-HH Price: $0.81 |
| 40 |
188031 |
Harness, Ignition Price: Call Us |
| 40 |
75-9900-01 |
SUPPORT-ENGINE, FRONT Price: $226.52 |
| 41 |
105-0057 |
STUD-RETAINER, BELT Price: $10.04 |
| 41 |
17720408 |
Screw Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 42 |
104-3406 |
PULLEY-ENGINE, MACHINING V This part replaces 104-3406-03. Price: $319.58 |
| 42 |
131563 |
Cover Terminal Price: Call Us |
| 43 |
178861 |
Solinoid w/brass plunger Price: Call Us |
| 43 |
3257-33 |
KEY-WOODRUFF Price: $1.76 |
| 44 |
302-10 |
FITTING-GREASE Price: $2.64 |
| 45 |
122822X |
Ammeter Price: Call Us |
| 45 |
3241-5 |
SCREW-SET Price: $0.61 |
| 46 |
110-5236 |
HUB-ENGINE Price: $30.97 |
| 46 |
169635 |
Hourmeter Price: Call Us |
| 47 |
32120-69 |
RING-SNAP Price: $2.78 |
| 48 |
32120-22 |
RING-SNAP, INTERNAL Price: $2.29 |
| 49 |
43-3720 |
COLLAR-BEARING Price: $249.41 |
| 50 |
174652 |
Switch, PTO Price: Call Us |
| 50 |
251-252 |
BEARING Price: $98.35 |
| 51 |
3234-18 |
SCREW-HHF Price: $0.87 |
| 52 |
3290-224 |
LOCKWASHER-PYRAMID Price: $33.25 |
| 53 |
63-1400 |
ROD-BELT Price: $17.83 |
| 54 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 55 |
104-3465-03 |
MOUNT-FRAME, FRONT (RH) Price: $44.16 |
| 55 |
17490508 |
Screw, Thd. Roll. 5/16-18 x 1/2 Price: Call Us |
| 56 |
321-4 |
SCREW-HH Price: $0.99 |
| 57 |
104-3421-03 |
BRACKET-THROTTLE Price: $42.29 |
| 58 |
2412-31 |
CLAMP-BODEN Price: $1.56 |
| 59 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 60 |
3217-5 |
NUT-HEX Price: $0.25 |
| 61 |
33113-050 |
SCREW-HH Price: $0.62 |
| 62 |
48-8020 |
WASHER-SPRING Price: $1.19 |
| 63 |
33113-020 |
SCREW-HH This part replaces 48-7630. Price: $0.26 |
| 65 |
98-9676 |
V-BELT Price: $31.01 |
| 67 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 69 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 70 |
115-4513-03 |
BRACKET-MUFFLER This part replaces 105-2598-03. Price: $35.52 |
| 71 |
18-9810 |
WASHER-THRUST Price: $7.99 |
| 72 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 74 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 75 |
33013-00 |
NUT-HEX Price: $0.25 |
| 76 |
33094-00 |
WASHER-PLAIN Price: $0.25 |
| 77 |
92-1374 |
SCREW-CAP,HH Price: $1.02 |
| 79 |
175242 |
Socket Asm Bulb Twistlock Price: Call Us |
