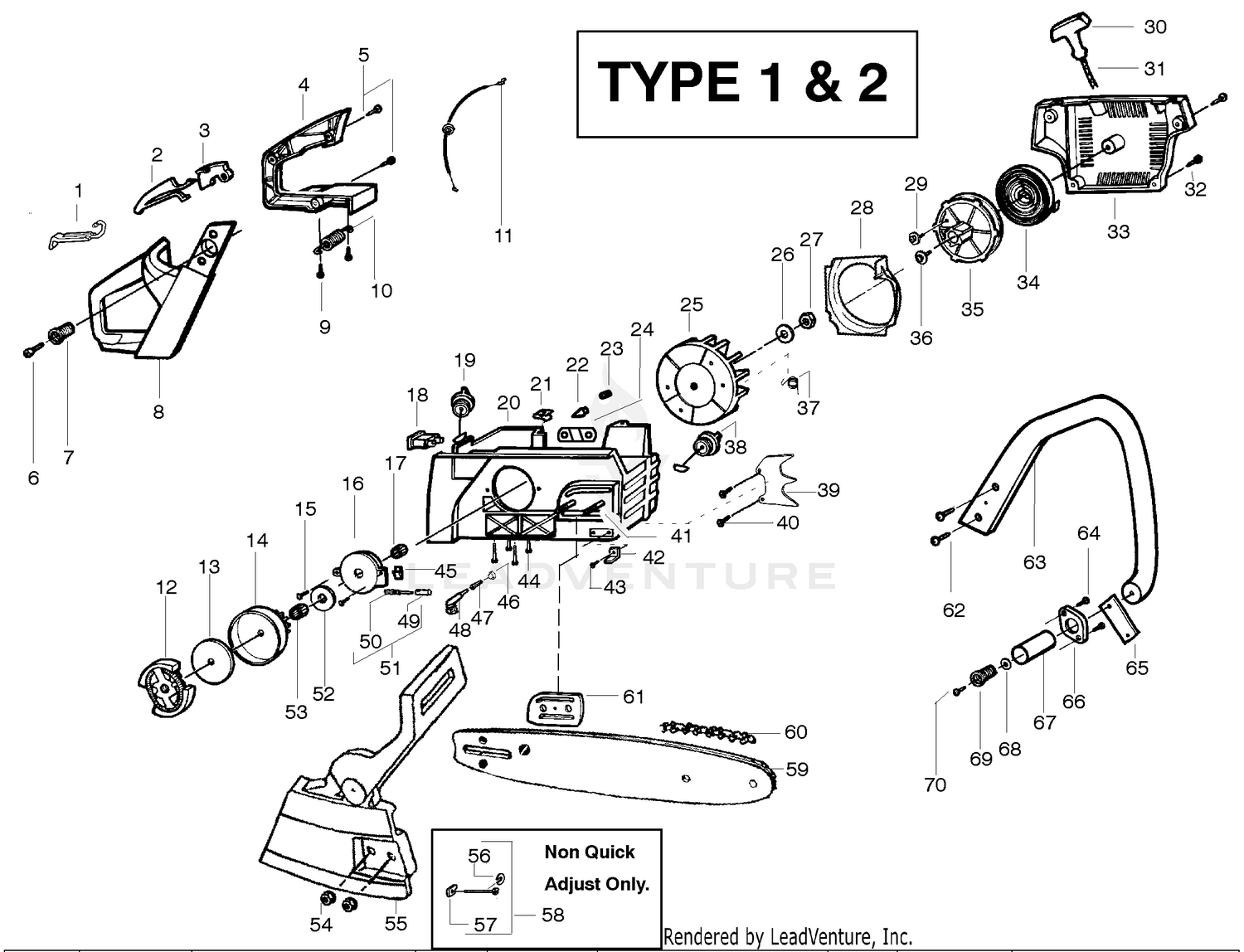

| Ref | Part Number | Description |
|---|
| 1 |
530053443 |
Choke Lever Price: $1.99 |
| 2 |
530036098 |
Throttle Lockout Price: $1.99 |
| 3 |
530036097 |
Throttle Trigger Price: $1.99 |
| 4 |
530071272 |
Cover-Handle (kit) This part replaces 530036491. Price: $63.99 |
| 5 |
530015957 |
Screw Price: $1.99 |
| 6 |
530015937 |
Screw Price: $1.99 |
| 7 |
530038985 |
Spring - Isolator Price: $1.99 |
| 8 |
530071272 |
Cover-Handle (kit) This part replaces 530036130. Price: $63.99 |
| 9 |
530015906 |
Screw Price: $1.99 |
| 10 |
530038986 |
Isolator Spring Price: $1.99 |
| 10 |
98-9621 |
OVERFLOW PIPE ASM Price: $73.29 |
| 11 |
530038471 |
Throttle Cable Price: $6.99 |
| 12 |
530014949 |
Clutch Ass'y. Price: $7.99 |
| 13 |
530015611 |
Clutch Washer Price: $1.99 |
| 14 |
530069342 |
Kit - Clutch Drum & Bearing Price: $24.99 |
| 16 |
545036801 |
PLUNGER & GEAR ASSY This part replaces 530029835. Price: $11.99 |
| 17 |
530029833 |
Oil Pump Worm Price: $3.99 |
| 18 |
530069572 |
Switch Kit Price: $4.99 |
| 19 |
530010845 |
Fuel Cap Ass'y. Price: $5.99 |
| 20 |
530037551 |
Chassis Ass'y. Price: $52.99 |
| 20 |
98-9431 |
SCREW-BLEEDER, AIR Price: $15.04 |
| 21 |
530015922 |
Speed Nut Price: $1.99 |
| 22 |
530026119 |
Check Valve Price: $1.99 |
| 23 |
530029868 |
Vent Plug Price: $1.99 |
| 24 |
530036043 |
Bar Stud Plate Price: $1.99 |
| 25 |
575635501 |
FLYWHEEL ASSY This part replaces 530039147. Price: $9.99 |
| 26 |
530015127 |
Washer Price: $1.99 |
| 27 |
530016071 |
Nut Price: $1.99 |
| 28 |
530047667 |
Baffle Plate Price: $1.99 |
| 29 |
530016080 |
Screw Price: $1.99 |
| 30 |
530056422 |
Handle-Starter This part replaces 530049797. Price: $1.99 |
| 30 |
98-7654 |
GASKET Price: $8.84 |
| 31 |
530069232 |
Rope Kit Price: $3.99 |
| 32 |
530015892 |
Screw Price: $1.99 |
| 34 |
545008005 |
RETURN SPRING This part replaces 530015891. Price: $3.99 |
| 35 |
530069313 |
Kit - Starter Pulley Price: $4.99 |
| 36 |
530015920 |
Screw Price: $1.99 |
| 37 |
530023817 |
Spring - Starter Dog Price: $1.99 |
| 38 |
530057236 |
Assy-Oil Cap This part replaces 530010846. Price: $5.99 |
| 40 |
530015886 |
Screw This part replaces 530015805. Price: $1.99 |
| 40 |
98-9624 |
OVERFLOW PIPE ASM Price: $5.18 |
| 41 |
530015877 |
Bar Bolt Price: $2.99 |
| 42 |
530029850 |
Chain Catcher Price: $1.99 |
| 43 |
530015906 |
Screw Price: $1.99 |
| 44 |
530016037 |
Screw Price: $1.99 |
| 45 |
545037101 |
OIL HOSE This part replaces 530019174. Price: $6.99 |
| 46 |
530056533 |
Filter-Oil This part replaces 530030189. Price: $2.99 |
| 47 |
530056533 |
Filter-Oil This part replaces 530037821. Price: $2.99 |
| 48 |
545047801 |
Pickup-Oil This part replaces 530037057. Price: $2.99 |
| 49 |
545036801 |
PLUNGER & GEAR ASSY This part replaces 530029834. Price: $11.99 |
| 50 |
545036801 |
PLUNGER & GEAR ASSY This part replaces 530029838. Price: $11.99 |
| 50 |
98-7672 |
CLIP-PIPE Price: $2.58 |
| 52 |
530015907 |
Thrust Washer Price: $1.99 |
| 53 |
530032119 |
Clutch Bearing Price: $4.99 |
| 54 |
530015917 |
Bar Mounting Nut Price: $0.99 |
| 55 |
108-2866 |
NOZZLE HOLDER KIT Price: $438.88 |
| 55 |
530054819 |
Assy-ChainBrake This part replaces 530054804. Price: $27.99 |
| 56 |
530038593 |
Retainer-Bar Adjust Price: $0.99 |
| 57 |
530015826 |
Bar Adjusting Pin Price: $1.99 |
| 59 |
952044375 |
Bar 18" Standard Price: Call Us |
| 59 |
952044377 |
Bar 20" Standard Price: Call Us |
| 59 |
952044577 |
Bar 16" Standard Price: Call Us |
| 59 |
952044815 |
Bar 20" Quick Adjust Price: Call Us |
| 60 |
952051301 |
Chain 16" (66/.325-.050") Price: $23.99 |
| 60 |
952051310 |
Chain 20" (78/.325-050") Price: Call Us |
| 60 |
952051313 |
Chain 18" (72/.325-.050") Price: Call Us |
| 61 |
530047855 |
Bar Plate Price: $3.99 |
| 62 |
530015814 |
Screw Price: $1.49 |
| 63 |
530038327 |
Handle Price: $27.79 |
| 64 |
530015775 |
Screw Price: $1.99 |
| 65 |
530036113 |
Front Strap Price: $2.99 |
| 66 |
530036101 |
Isolator Plate Price: $1.99 |
| 67 |
530036142 |
Spring Sleeve Price: Call Us |
| 68 |
530015123 |
Washer Price: $1.99 |
| 69 |
530038985 |
Isolator spring Price: $1.99 |
| 70 |
98-7676 |
GASKET Price: $2.73 |
| 75 |
98-7677 |
SEAL-HEAT Price: $10.17 |
| 80 |
98-9622 |
PIPE-INJECTION Price: $74.03 |
| 90 |
98-9654 |
PIPE-INJECTION Price: $76.86 |
| 100 |
98-9655 |
PIPE-INJECTION Price: $82.26 |
| 110 |
98-7682 |
CLAMP-PIPE Price: $6.37 |
| 120 |
98-7683 |
CLAMP-PIPE Price: $3.66 |
| 130 |
98-7684 |
SCREW (W/WASHER) Price: $0.44 |
| 140 |
98-9623 |
PLUG-GLOW Price: $93.76 |
| 150 |
98-9631 |
CORD-PLUG, GLOW Price: $12.41 |
