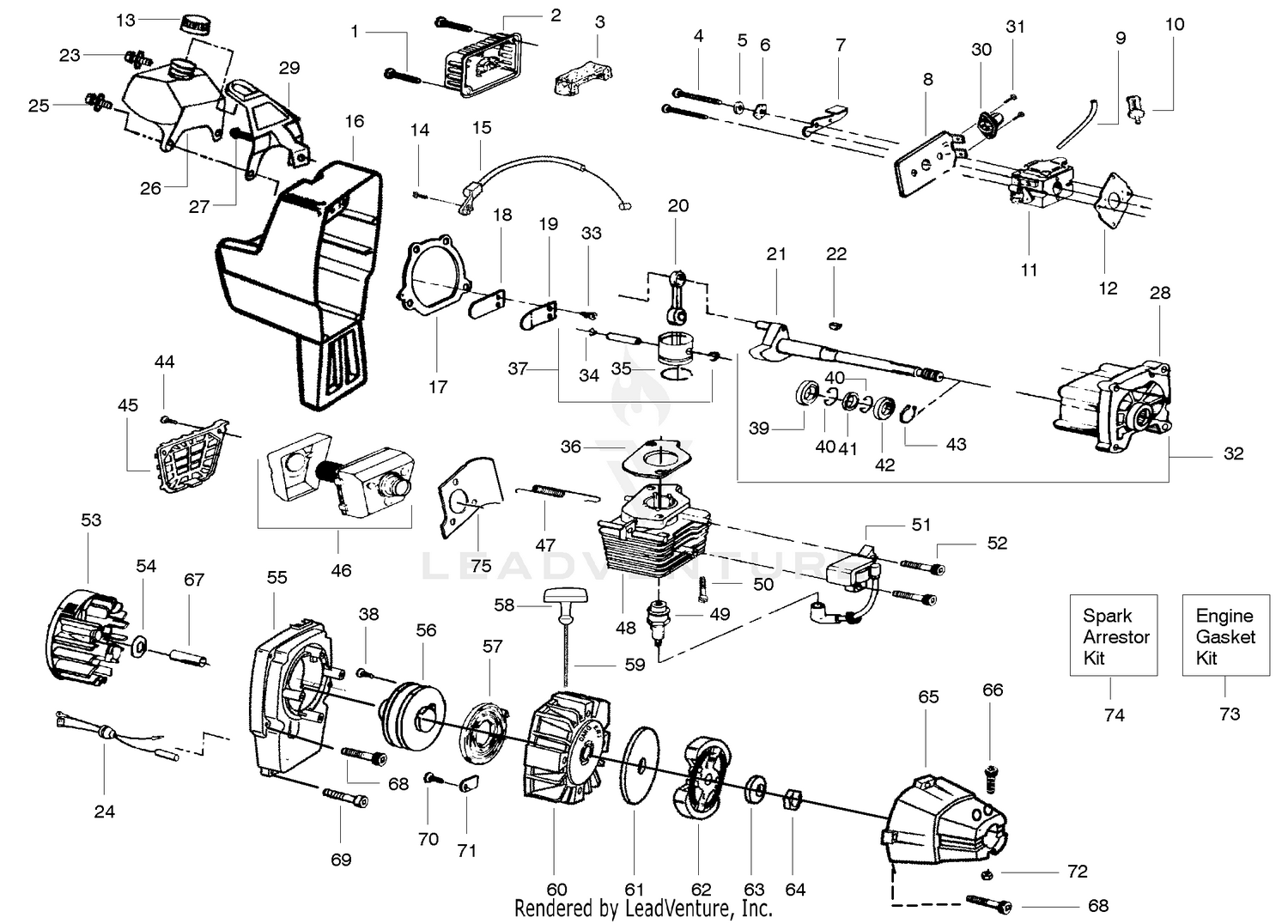

Engine
Parts (69)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530015773 | Screw Price: $1.99 |
| 1 | SGH08701-03 | HEAD-TINE, ADAPTER Price: $272.95 |
| 2 | 530027529 | Air Filter Cover Price: $3.42 |
| 3 | 530027530 | Air Filter Price: $1.99 |
| 4 | 530015849 | Screw Price: $1.99 |
| 5 | 530015852 | Choke Spacer Price: $1.99 |
| 6 | 530015254 | Washer Price: $1.99 |
| 7 | 530038103 | Choke Shutter Price: $1.99 |
| 8 | 530037930 | Air Filter Plate Price: $2.99 |
| 9 | 530069247 | Fuel Line Kit Price: $3.99 |
| 10 | 530095646 | Assy-Fuel Pickup This part replaces 530014362. Price: $2.99 |
| 12 | 530019156 | Gasket-Carburetor Price: $3.99 |
| 13 | 530014347 | Fuel Cap Ass'y. Price: $4.99 |
| 14 | 530015775 | Screw Price: $1.99 |
| 15 | 530047040 | Throttle Cable Ass'y. Price: $8.99 |
| 16 | 530027923 | Shroud Price: $8.24 |
| 17 | 530019154 | Gasket-C'case/Shroud Price: $1.99 |
| 18 | 530027593 | Reed Valve Price: $1.99 |
| 19 | 530027594 | Reed Stop Price: $1.99 |
| 20 | 530010960 | Connecting Rod Ass'y. Price: $14.99 |
| 21 | 530010934 | Crankshaft Ass'y. Price: $24.99 |
| 22 | 530015126 | Flywheel Key Price: $1.99 |
| 23 | 530015843 | Screw Price: $1.99 |
| 24 | 530047145 | Leadwire/Grommet Ass'y. Price: $2.99 |
| 25 | 530015771 | Screw Price: $1.99 |
| 26 | 530038166 | Assy-Fuel Tank Price: $19.99 |
| 27 | 530016386 | SCREW This part replaces 530015810. Price: $5.99 |
| 29 | 530029370 | Bracket-Fuel tank Price: $7.99 |
| 30 | 530038874 | Bulb Ass'y. Price: $5.99 |
| 31 | 530016091 | Screw Price: $1.99 |
| 33 | 545227101 | SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 34 | 530015162 | Piston Pin Retainer Price: $1.99 |
| 35 | 530025875 | Piston Ring Price: $4.99 |
| 36 | 530019267 | GASKET CYL W/ ADHESIVE This part replaces 530019178. Price: $2.99 |
| 38 | 530016080 | Screw Price: $1.99 |
| 39 | 530032103 | Inner Bearing Price: Call Us |
| 40 | 530015787 | Retaining Ring Price: $1.99 |
| 41 | 530019158 | Crankshaft Seal Price: $2.99 |
| 42 | 530032102 | Outer Bearing Price: $8.99 |
| 43 | 530015789 | Retaining Ring-C'shaft Price: $2.99 |
| 44 | 530015717 | Screw Price: $1.99 |
| 45 | 530027781 | Muffler Guard Price: $1.99 |
| 46 | 530069310 | Muffler Kit Price: $9.99 |
| 47 | 530036409 | Muffler Spring Price: $1.99 |
| 48 | 530069626 | Cylinder Kit Price: $1.92 |
| 49 | 503235112 | Spark Plug This part replaces 952030201. Price: $5.99 |
| 50 | 530001624 | Screw Price: $1.99 |
| 51 | 530039134 | Ignition Module Price: $44.99 |
| 52 | 530015816 | Screw Price: $1.99 |
| 53 | 530039189 | Flywheel Ass'y. Price: $22.99 |
| 54 | 530016030 | Washer Price: $1.99 |
| 55 | 530027947 | Fan Housing Price: $11.99 |
| 57 | 545008015 | SPRING STARTER This part replaces 530027531. Price: $2.99 |
| 58 | 530027569 | Starter Handle Price: $1.99 |
| 59 | 530069232 | Rope Kit Price: $3.99 |
| 60 | 530014009 | Pulley Housing Ass'y. Price: $5.84 |
| 61 | 530094189 | Washer-Clutch Price: $2.99 |
| 62 | 530069254 | Clutch Ass'y. Kit Price: $8.99 |
| 63 | 530015796 | Washer-Bevel Price: $1.99 |
| 64 | 530001733 | Nut Price: $2.99 |
| 65 | 530014017 | Clutch Housing Price: $24.99 |
| 66 | 530015767 | Screw Price: $1.99 |
| 67 | 530027511 | Spacer-Clutch Price: $4.99 |
| 68 | 530015770 | Screw Price: Call Us |
| 69 | 530015769 | Screw Price: $1.99 |
| 70 | 530015496 | Screw Price: $1.99 |
| 71 | 530027523 | Retainer Price: $2.99 |
| 72 | 530015768 | Locknut Price: $1.99 |
| 74 | 952701612 | Spark Arrestor Kit Price: Call Us |
