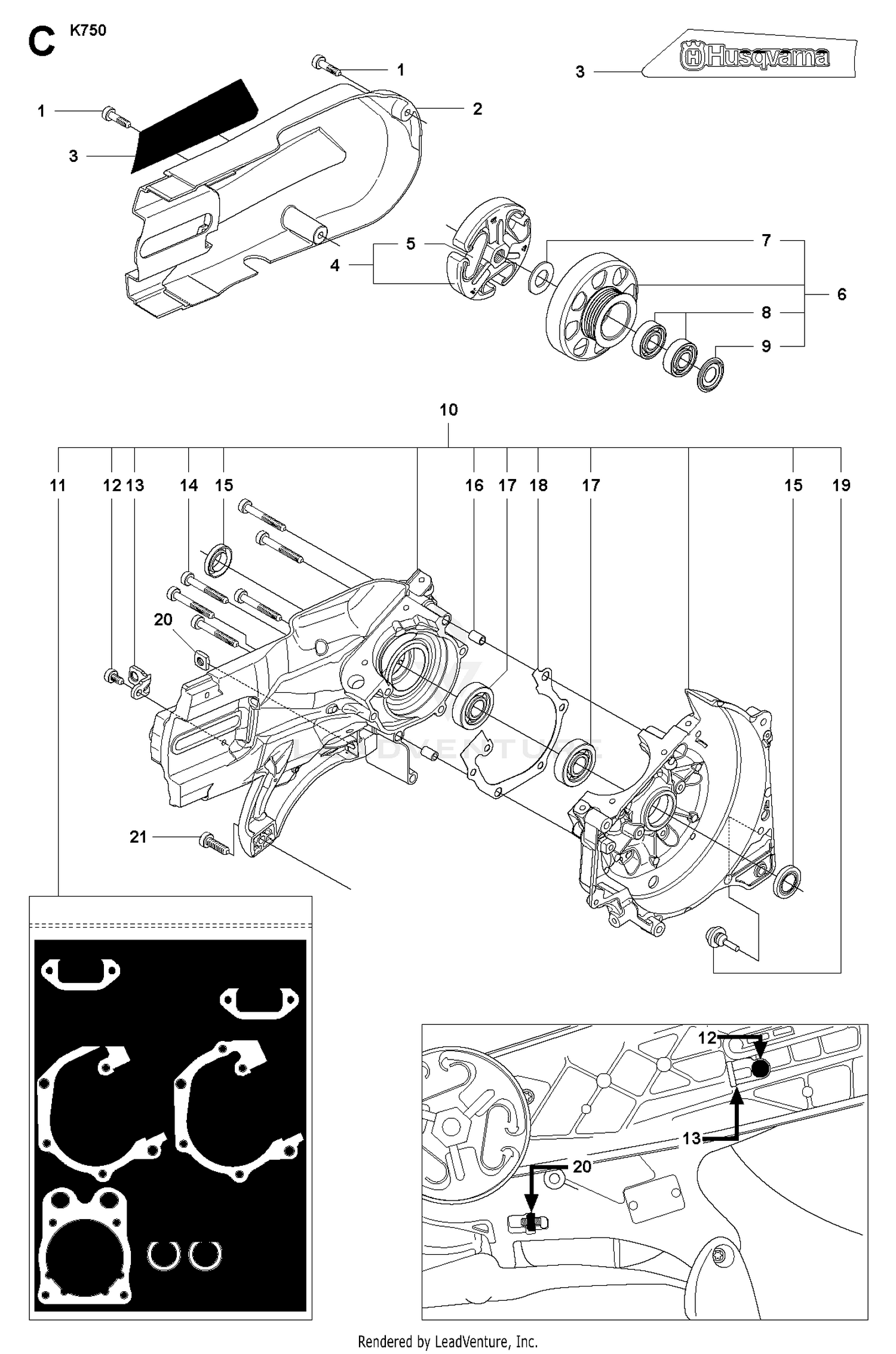

CRANKCASE 2
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503215321 | SCREW Price: $3.99 |
| 2 | 581485901 | BELT GUARD REAR ASSY WITH LABE This part replaces 506369103. Price: $27.99 |
| 3 | 544891101 | LABEL Price: $5.99 |
| 5 | 503744301 | CLUTCH SPRING Price: $4.99 |
| 7 | 503230070 | WASHER Price: $3.99 |
| 8 | 738210104 | BALL BEARING Price: $9.99 |
| 11 | 581357402 | GASKET KIT K760-II This part replaces 506385305. Price: $29.99 |
| 12 | 503200312 | SCREW Price: $5.99 |
| 13 | 544007801 | BRACKET Price: $4.99 |
| 14 | 503215341 | SCREW Price: $3.99 |
| 15 | 503260204 | SEALING RING Price: $11.99 |
| 16 | 593806001 | GUIDE BUSHING This part replaces 501270801. Price: $4.99 |
| 17 | 738220225 | BALL BEARING-6202-C3 SKF Price: $19.99 |
| 18 | 506377003 | GASKET Price: $4.99 |
| 19 | 503846101 | BUFFER Price: $4.99 |
| 20 | 503226504 | NUT Price: $4.99 |
| 21 | 544061201 | SCREW Price: $3.99 |
| 22 | 506412301 | GASKET Price: $4.99 |
| 23 | 588932501 | GASKET K760 This part replaces 506376902. Price: $5.99 |
| 24 | 506377002 | GASKET Price: $4.99 |
| 25 | 506376701 | GASKET Price: $7.99 |
| 26 | 544219302 | INSERT Price: $3.99 |
