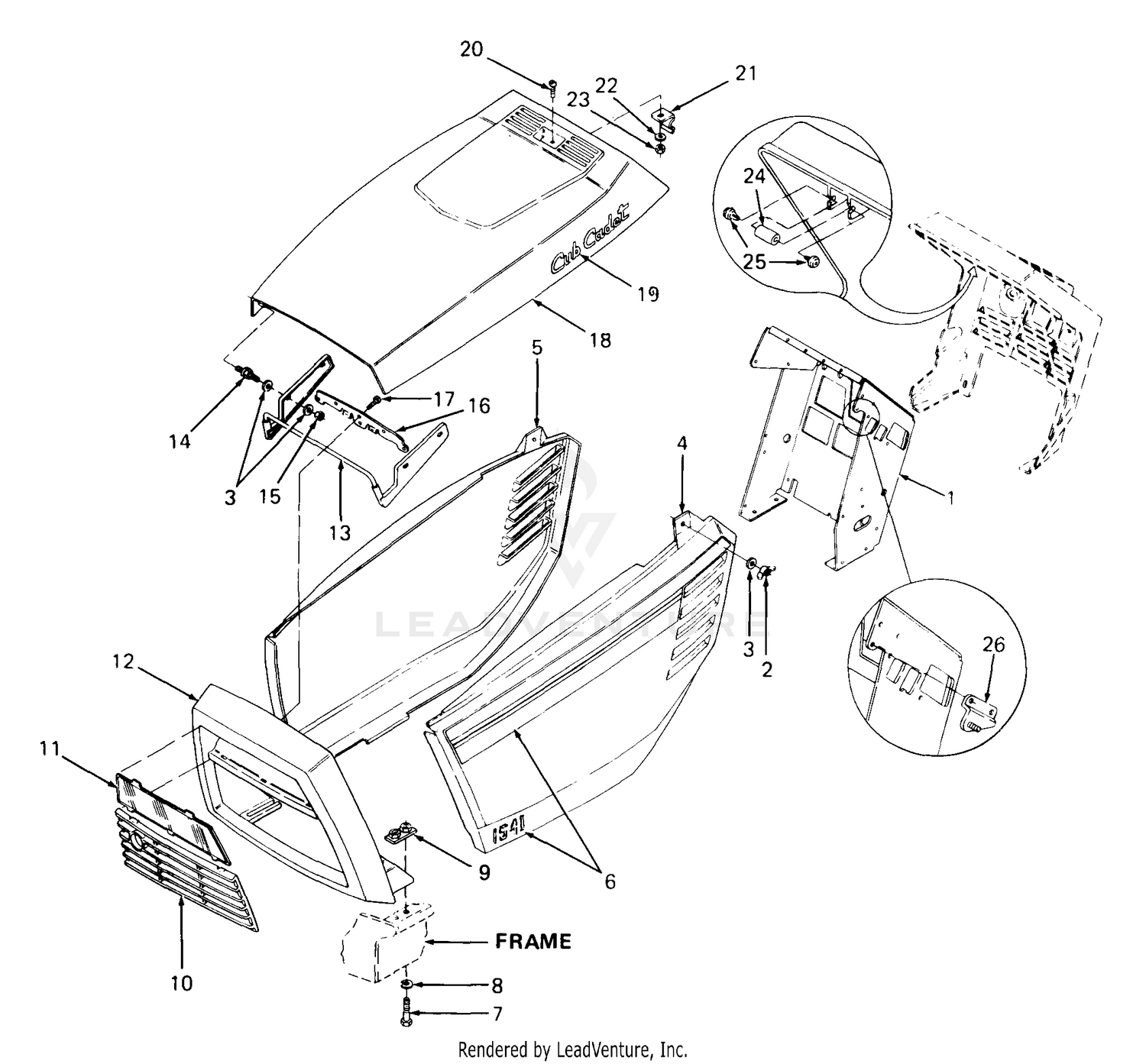

| Ref | Part Number | Description |
|---|
| 1 |
323-6 |
SCREW-HH Price: $0.66 |
| 1 |
703-1951 |
PEDESTAL Not Available Price: |
| 2 |
32128-21 |
NUT-HF Price: $0.39 |
| 2 |
712-3044 |
NUT, 1/4 WING Not Available Price: |
| 3 |
736-0463 |
Washer, Flat, .251 X .62 X .052 Thk Price: $3.91 |
| 3 |
92-7472 |
REAR TUBE ASM Price: $185.79 |
| 4 |
731-3091 |
PANEL, LH SIDE Not Available Price: |
| 4 |
92-7473 |
REAR TUBE ASM Price: $239.26 |
| 5 |
731-3092 |
PANEL, RH SIDE Not Available Price: |
| 5 |
76-8350 |
STOP-AXLE Price: $10.92 |
| 6 |
759-3556 |
DECAL KIT (LH) PANEL Not Available Price: |
| 6 |
93-7247 |
WASHER-THRUST Price: $3.46 |
| 7 |
237-58 |
O-RING Price: $2.18 |
| 7 |
710-0376 |
Screw, 5/16-18 X 1 Znd Hex Hd Cap This part replaces 710-3002. Price: $3.66 |
| 8 |
340-126 |
NUT-BULKHEAD Price: $4.61 |
| 8 |
936-0119 |
Washer, Lock, 5/16 This part replaces 736-0119. Price: $4.29 |
| 9 |
703-0008 |
GRILLE HOUSING RETAINER Not Available Price: |
| 9 |
92-7536 |
HOSE-HYD Price: $196.76 |
| 10 |
105-9818 |
HOSE-HYD This part replaces 92-7537. Price: $287.57 |
| 10 |
731-3099 |
GRILLE INSERT Not Available Price: |
| 11 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 11 |
931-3102 |
GRILLE LENS This part replaces 731-3102. Price: $36.19 |
| 12 |
3256-29 |
WASHER-FLAT Price: $2.59 |
| 12 |
759-3773 |
GRILLE-ASSEMBLY RD HL Not Available This part replaces 759-3527. Price: |
| 13 |
703-1829-0499 |
HOOD HINGE ASSEMBLY (CUB BEIGE) Not Available This part replaces 703-1829. Price: |
| 13 |
94-8000 |
NUT-HEX Price: $2.65 |
| 14 |
32151-96 |
RING-RETAINING Price: $0.54 |
| 14 |
710-3214 |
STUD-DOUBLE ENDED Not Available Price: |
| 15 |
71-4580 |
BEARING Price: $80.51 |
| 15 |
912-0107 |
Hex L-Nut 1/4-20 Thd This part replaces 712-0107. Price: $4.06 |
| 16 |
703-1856 |
PLATE, HINGE Not Available Price: |
| 16 |
71-4590 |
WASHER-THRUST Price: $3.32 |
| 17 |
237-166 |
O-RING Price: $10.46 |
| 17 |
710-0748 |
SCREW #12-14 x .500 Not Available Price: |
| 18 |
340-9 |
FITTING-HYD, STRAIGHT Price: $67.47 |
| 18 |
931-3089B |
HOOD Not Available This part replaces 731-3089. Price: |
| 19 |
237-81 |
O-RING Price: $2.76 |
| 19 |
979-3536 |
LABEL-CCC SCRIPT Not Available This part replaces 779-3536. Price: |
| 20 |
710-3217 |
Screw, Truss Hd, #8-32 X .38 Lg Price: $5.94 |
| 20 |
92-7386 |
HYD MOTOR ASM Price: $2,754.42 |
| 21 |
340-142 |
FITTING-ELBOW-90 Price: $65.90 |
| 21 |
732-3063A |
Clip, Hood Latch Price: Call Us |
| 22 |
325-4 |
SCREW-HH Price: $0.95 |
| 22 |
736-0310 |
Washer, Flat, .16 X .38 X .045 Thk Price: $3.50 |
| 23 |
912-3072 |
HEX NUT KEPS #8-32 Not Available This part replaces 712-3072. Price: |
| 23 |
94-3099 |
GEAR - DRIVEN, 10 PITCH Price: $177.13 |
| 24 |
32120-15 |
RING-SNAP, EXT Price: $1.20 |
| 24 |
911-3296 |
LATCH PIN Not Available This part replaces 711-3296. Price: |
| 25 |
710-0286 |
Screw, Phillips Hd Truss Mach, 1/4-20 X .50 Lg Price: $3.86 |
| 25 |
94-3098 |
GEAR - DRIVEN, 10 PITCH Price: $199.13 |
| 26 |
340-70 |
NUT-LOCK Price: $2.10 |
| 26 |
703-1955 |
BRACKET ASSY, LH PANEL MTG Not Available Price: |
| 27 |
92-7553 |
TUBE-REAR DRAIN Price: $174.40 |
| 28 |
92-7495 |
STEERING TUBE ASM Price: $148.27 |
| 29 |
92-7494 |
REAR STEARING TUBE ASM Price: $150.03 |
| 30 |
74-5700 |
BEARING-NEEDLE, ROLLER Price: $27.84 |
| 31 |
92-7534 |
HOSE-HYD Price: $123.48 |
| 32 |
98-7825 |
DISCONTINUED ,ORDER PIECE PARTS This part replaces 93-7780. Price: Call Us |
| 33 |
86-5910 |
TIRE-6 PLY Price: $114.98 |
| 34 |
120-8909 |
RIM This part replaces 217-125. Price: $198.53 |
| 35 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 36 |
74-5500 |
BOLT-WHEEL Price: $10.84 |
| 37 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 38 |
237-42 |
O-RING Price: $2.78 |
| 39 |
353-508 |
PLUG-HH Price: $7.96 |
| 40 |
92-7539 |
HOSE-HYD Price: $134.23 |
| 41 |
92-7538 |
HOSE ASM Price: $167.59 |
| 42 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 43 |
32151-104 |
RING-RETAINING, EXTERNAL Price: $4.85 |
| 44 |
121-3653 |
CYLINDER-HYD This part replaces 94-8141. Price: $725.74 |
| 45 |
92-5839 |
JOINT-BALL Price: $207.89 |
| 46 |
92-5833 |
SPACER-JOINT, BALL Price: $20.71 |
| 47 |
92-5844 |
DISCONTINUED Price: Call Us |
| 48 |
32136-14 |
NUT-HST Price: $3.38 |
| 49 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 50 |
92-5836 |
WASHER Price: $5.34 |
| 51 |
237-78 |
O-RING Price: $3.85 |
| 52 |
340-97 |
FITTING-ELBOW, 90 DEG Price: $36.21 |
| 53 |
92-7604 |
DISCONTINUED Price: Call Us |
| 54 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 55 |
94-8115 |
DISCONTINUED Price: Call Us |
| 56 |
325-33 |
SCREW-HH Price: $11.49 |
| 57 |
92-7646 |
ELBOW-BULKHEAD, 45 DEG Price: $105.61 |
| 58 |
69-8910 |
WASHER Price: $1.70 |
| 59 |
69-8900 |
SPACER Price: $14.26 |
| 60 |
92-7552-03 |
DISCONTINUED This part replaces 92-7552. Price: Call Us |
| 61 |
240-7 |
GROMMET-RUBBER Price: $16.51 |
| 62 |
106-6774 |
JOINT-BALL This part replaces 92-5838. Price: $79.04 |
| 63 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 64 |
237-22 |
O-RING Price: $2.43 |
| 65 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 66 |
88-1550 |
STOP - 4WD AXLE Price: $47.56 |
| 67 |
94-2806 |
ADAPTOR-STUD, WHEEL Price: $57.68 |
| 68 |
100-3895-03 |
WEIGHT-WHEEL This part replaces 94-3052. Price: $841.13 |
| 69 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 70 |
3213-14 |
SCREW-HH Price: $8.01 |
| 531002407 |
531002407 |
TANK Price: $54.99 |
| 531002408 |
531002408 |
TANK Price: $64.99 |
| 531002410 |
531002410 |
VALVE Price: $14.99 |
| 531002411 |
531002411 |
GROMMET Price: $7.99 |
| 531002413 |
531004738 |
RETURN PIPE/HOSE This part replaces 531002413. Price: $6.99 |
| 531002414 |
591375401 |
KIT FUEL FILTER This part replaces 531002414. Price: $8.99 |
| 531002415 |
531002415 |
CLIP Price: $5.99 |
| 531002416 |
531002416 |
SLEEVE Price: $4.99 |
| 531002417 |
531002417 |
SLEEVE Price: $6.99 |
