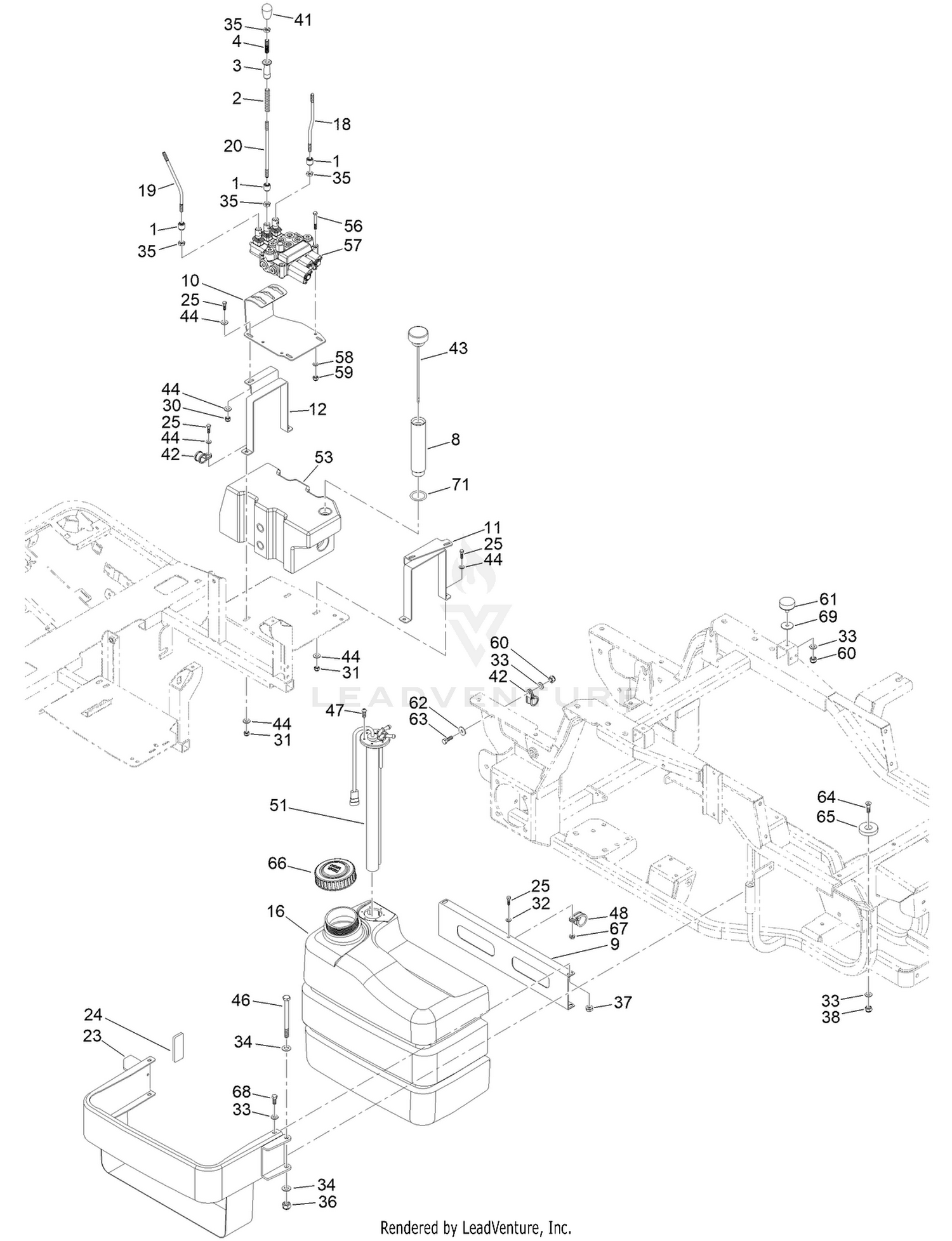

Fuel and Oil Tank Assembly
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 134-0696 | CONNECTOR Price: $7.91 |
| 2 | 134-0697 | SPRING Price: $3.32 |
| 3 | 134-0698 | KNOB Price: $16.50 |
| 4 | 134-0699 | SPRING Price: $3.32 |
| 8 | 134-0786 | EXTENSION Price: $34.29 |
| 9 | 134-0787 | RAIL-CROSS Price: $23.54 |
| 10 | 134-0792 | SUPPORT-VALVE, AUX Price: $21.86 |
| 11 | 134-0794 | CLAMP-BAND Price: $36.38 |
| 12 | 134-0795 | CLAMP-BAND Price: $33.35 |
| 16 | 134-1989 | TANK-FUEL Price: $216.01 |
| 18 | 134-0905 | LEVER-VALVE, AUX Price: $16.94 |
| 19 | 134-0906 | LEVER-VALVE, AUX Price: $12.87 |
| 20 | 134-0907 | LEVER-VALVE, AUX Price: $7.08 |
| 23 | 134-0959 | SUPPORT-TANK, FUEL Price: $90.83 |
| 24 | 134-0982 | GROMMET-RUBBER, TANK Price: $6.73 |
| 25 | 134-1009 | SCREW Price: $0.32 |
| 30 | 134-1041 | NUT Price: $0.25 |
| 31 | 134-1042 | NUT Price: $0.25 |
| 32 | 134-1044 | WASHER Price: $0.25 |
| 33 | 134-1045 | WASHER Price: $0.25 |
| 34 | 134-1046 | WASHER Price: $0.25 |
| 35 | 134-1078 | NUT Price: $0.25 |
| 36 | 134-1079 | NUT Price: $0.42 |
| 37 | 134-1082 | NUT Price: $0.36 |
| 38 | 134-1092 | NUT Price: $0.25 |
| 41 | 134-1179 | KNOB Price: $5.50 |
| 42 | 134-1197 | CLAMP Price: $4.87 |
| 43 | 134-1210 | CAP-OIL Price: $15.54 |
| 44 | 134-1234 | WASHER Price: $0.25 |
| 46 | 134-1295 | SCREW Price: $2.79 |
| 47 | 134-1312 | SCREW Price: $0.85 |
| 48 | 134-1318 | CLAMP Price: $3.84 |
| 51 | 134-0573 | FLOAT Price: $103.08 |
| 53 | 134-0635 | TANK-OIL Price: $174.34 |
| 56 | 134-1118 | SCREW Price: $0.22 |
| 57 | 134-0582 | DISTRIBUTOR Price: $772.82 |
| 58 | 134-1044 | WASHER Price: $0.25 |
| 59 | 134-1042 | NUT Price: $0.25 |
| 60 | 134-1038 | NUT Price: $0.32 |
| 61 | 134-1338 | PAD-RUBBER Price: $7.08 |
| 62 | 134-3126 | WASHER Price: $0.25 |
| 63 | 134-1015 | SCREW Price: $0.46 |
| 64 | 134-1121 | SCREW Price: $0.95 |
| 65 | 134-0759 | SUPPORT Price: $12.47 |
| 66 | 134-1988 | CAP-TANK, DIESEL Price: $37.91 |
| 67 | 134-1084 | NUT Price: $0.25 |
| 68 | 134-1010 | SCREW Price: $0.32 |
| 69 | 134-8239 | WASHER Price: $0.81 |
