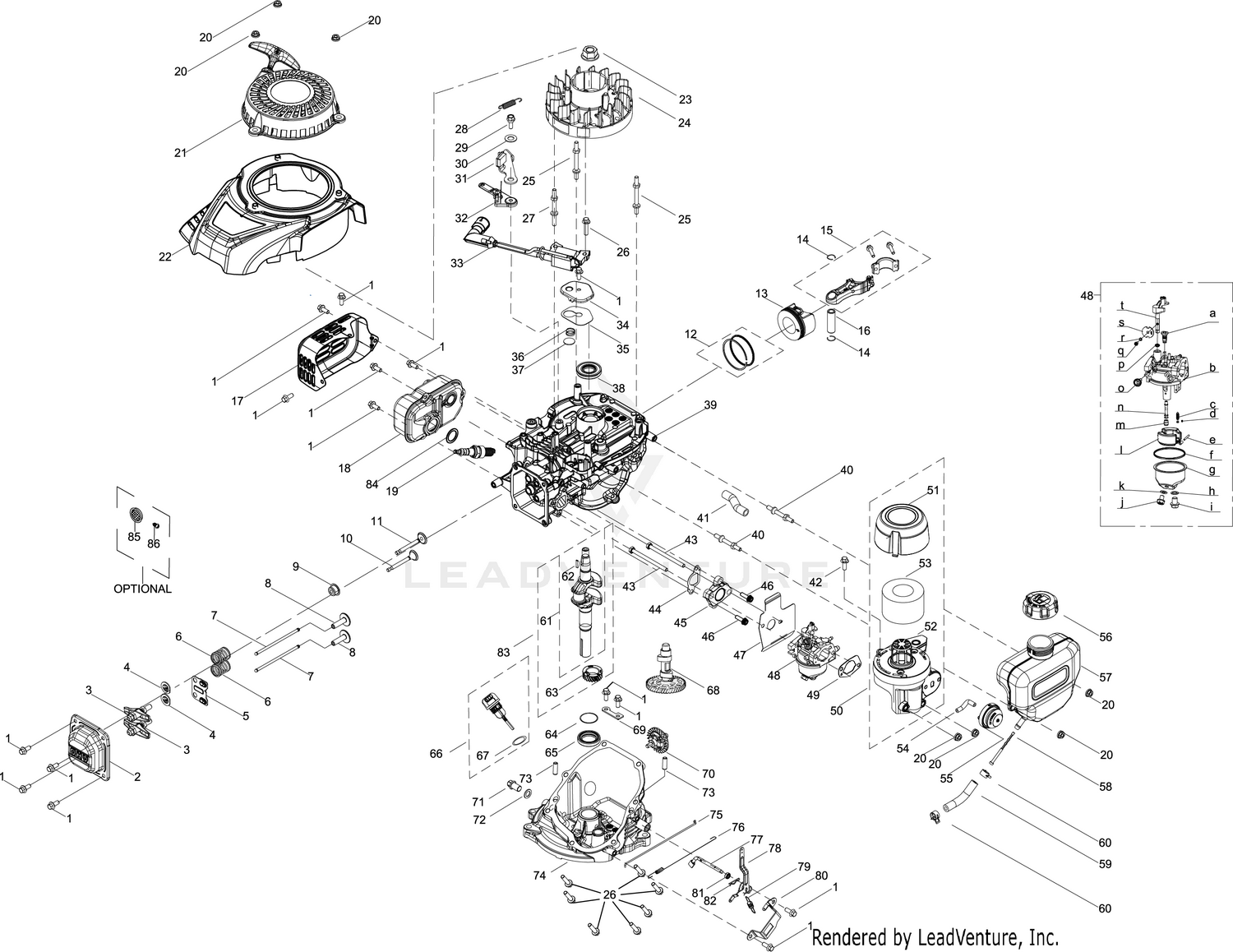

1P51RUA General Assembly
Parts (104)
| Ref | Part Number | Description |
|---|---|---|
| a | None | Idle Jet Assembly |
| b | 751P22241 | CARB BODY HOUSING Price: $14.80 |
| c | 793P00165A | NEEDLE VALVE Price: $4.13 |
| d | 732P05138A | NEEDLE VALVE SPRING Price: $2.63 |
| e | 711P06053A | FLOAT PIN Price: $2.45 |
| f | 721-04710A | FLOAT BOWL O-RING Price: $2.15 |
| g | 608P05002 | FUEL BOWL Price: $4.92 |
| h | 951-11348A | FUEL BOWL GASKET Price: $5.07 |
| i | 710-04945 | BOLT M8-1 x 10 Price: $3.66 |
| j | 710-04938 | FUEL DRAIN PLUG Price: $3.66 |
| k | 951-11349A | FUEL DRAIN PLUG GASKET Price: $3.66 |
| l | 731P09155A | FLOAT Price: $2.39 |
| m | None | Main Jet |
| n | None | Emulsion Tube |
| o | 710P06038A | SPEED IDLE SCREW Price: $2.45 |
| p | 721P04714A | CARB SHAFT GASKET Price: $1.22 |
| q | 710-06230 | SCREW-3Mx6 Price: $2.98 |
| r | 736P05209A | LOCK WASHER 3MM Price: $2.45 |
| s | 708P05096A | THROTTLE PLATE Price: $2.45 |
| t | 711P06814 | THROTTLE SHAFT Price: $2.45 |
| 1 | 710-04916 | BOLT M6-1 x 14 GR8.8 Price: $3.86 |
| 2 | 751P15154B | VALVE COVER Price: $3.95 |
| 3 | 951-11606A | ROCKER ARM Price: $29.12 |
| 4 | 908-04094A | VALVE RETURN SPRING Price: $3.20 |
| 5 | 751P15178A | PUSH ROD GUIDE Price: $1.74 |
| 6 | 751P12004A | VALVE SPRING Price: $1.74 |
| 7 | 751P15177A | PUSH ROD Price: $1.70 |
| 8 | 951-11607A | TAPPET Price: $6.12 |
| 9 | 921-04237A | INTAKE VALVE SEAL Price: $7.20 |
| 10 | 951-14641A | EXHAUST VALVE Price: $8.71 |
| 11 | 951-14640A | INTAKE VALVE Price: $8.71 |
| 12 | 751P19470A | PISTON RING SET Price: $5.36 |
| 13 | 751P19468A | PISTON Price: $15.54 |
| 14 | 951-11603A | WRIST PIN CLIP Price: $2.90 |
| 15 | 651P05335A | CONNECTING ROD Price: $6.99 |
| 16 | 751P19469A | PISTON PIN Price: $2.27 |
| 17 | 751P15133B | MUFFLER GUARD Price: $8.26 |
| 18 | 751P22238 | MUFFLER Price: $7.96 |
| 19 | 951-10292A | SPARK PLUG (F6RTC/RN11YC/BPR6ES) Price: $6.35 |
| 20 | 712-05015 | HEX NUT Price: $5.78 |
| 21 | 951-05320A | STARTER RECOIL ASSEMBLY Price: $57.94 |
| 22 | 631P05345A | ENGINE SHROUD Price: $6.49 |
| 23 | 712-04287A | FLYWHEEL NUT M14-1.5 Price: $5.33 |
| 24 | 925-06190A | ENGINE FLYWHEEL Price: $84.73 |
| 25 | 710-06208 | STUD M6 x 75 Price: $5.59 |
| 26 | 710-04919 | BOLT M6-1 x 25 GR8.8 Price: $3.86 |
| 27 | 710-06209 | STUD M6 x 73 Price: $5.59 |
| 28 | 932-05379A | ENGINE BRAKE SPRING Price: $3.56 |
| 29 | 911-06531 | ENGINE BRAKE PIN M6-1.0 MM Price: $31.48 |
| 30 | 736-05145A | FLAT WASHER 10x20x1.0 MM Price: $3.32 |
| 31 | 951-15098 | ENGINE BRAKE ARM Price: $7.25 |
| 32 | 951-05306 | ENGINE BRAKE LOWER BRACKET Price: $52.46 |
| 33 | 925-06488 | IGNITION COIL Price: $31.48 |
| 34 | 708-05172 | BREATHER COVER PLATE Price: $1.27 |
| 35 | 721-04830A | BREATHER GASKET Price: $1.92 |
| 36 | 732-04718A | BREATHER VALVE SPRING Price: $3.30 |
| 37 | 951-11614A | BREATHER VALVE Price: $3.13 |
| 38 | 921-04700A | UPPER SEAL Price: $7.39 |
| 39 | 751P19471 | CRANKCASE Price: $79.91 |
| 41 | 735P05144 | BREATHER HOSE Price: $0.63 |
| 42 | 710-04968 | BOLT M6 x 16 Price: $5.77 |
| 43 | 710-06220 | BOLT M6X80 Price: $0.39 |
| 44 | 721-04833A | CARBURETOR INSULATION GASKET Price: $1.82 |
| 45 | 751P15138A | CARBURETOR INSULATOR Price: $3.77 |
| 46 | 710-06195 | BOLT M6X20 Price: $0.27 |
| 47 | 721-04832A | CARBURETOR GASKET Price: $1.83 |
| 48 | 651P08615 | CARBURETOR Price: $29.38 |
| 49 | 951-14419A | AIR FILTER BASE GASKET Price: $7.08 |
| 50 | NSCO | Not Serviceable/ Components Only Price: Call Us |
| 51 | 931-11695A | AIR FILTER COVER Price: $2.84 |
| 52 | 931-05507A | AIR FILTER BASE Price: $8.05 |
| 53 | 951-15137A | AIR FILTER - FOAM Price: $8.55 |
| 54 | 735P05143 | PRIMER HOSE Price: $0.70 |
| 55 | 951-05177A | PRIMER ASSEMBLY Price: $12.83 |
| 56 | 651P05182 | FUEL CAP ASSEMBLY Price: $2.60 |
| 57 | 751P22415 | FUEL TANK Price: $12.24 |
| 58 | 951-12296A | FUEL FILTER Price: $8.68 |
| 59 | 735P05142A | FUEL HOSE Price: $6.43 |
| 60 | 951-11700A | CARBURETOR HOSE CLAMP Price: $3.60 |
| 61 | 751P15141 | CRANKSHAFT Price: $39.06 |
| 62 | 751P10307A | WOODRUFF KEY Price: $2.01 |
| 63 | 931-10288A | GEAR Price: $8.18 |
| 64 | 736-04491A | THRUST WASHER Price: $3.30 |
| 65 | 751P22208 | LOWER CRANKSHAFT SEAL Price: $2.44 |
| 66 | 651P05334A | DIPSTICK ASSEMBLY Price: $3.56 |
| 67 | 721-04839A | DIPSTICK SEAL Price: $1.70 |
| 68 | 751P19473A | CAMSHAFT Price: $8.91 |
| 70 | 951-05336A | GEAR GOVERNOR Price: $7.77 |
| 71 | 710-04906 | OIL DRAIN PLUG Price: $5.86 |
| 72 | 736-04440A | FLAT WASHER Price: $6.01 |
| 73 | 715-05058 | DOWEL PIN 7X20 Price: $0.27 |
| 74 | 751P15152A | CRANKCASE COVER Price: $63.26 |
| 75 | 751P15144 | THROTTLE LINKAGE Price: $3.30 |
| 76 | 732P05411 | THROTTLE LINKAGE SPRING Price: $3.54 |
| 77 | 751P15143 | GOVERNOR ARM SHAFT Price: $1.28 |
| 78 | 651P05327 | GOVERNOR ARM ASSEMBLY Price: $2.48 |
| 79 | 951-14411 | GOVERNOR SPRING Price: $8.34 |
| 80 | 708-05179 | COMPONENT BRACKET Price: $1.56 |
| 81 | 751P15150 | GOVERNOR SEAL Price: $0.92 |
| 82 | 714-04078A | COTTER PIN Price: $3.19 |
| 83 | 651P05347 | CRANKSHAFT Price: $42.76 |
| 84 | 751P22239 | MUFFLER GASKET Price: $1.70 |
| 85 | 951-10351A | SPARK ARRESTOR Price: $48.91 |
| 86 | 710-04983 | SCREW M3.5 x 9.5 Price: $3.65 |
