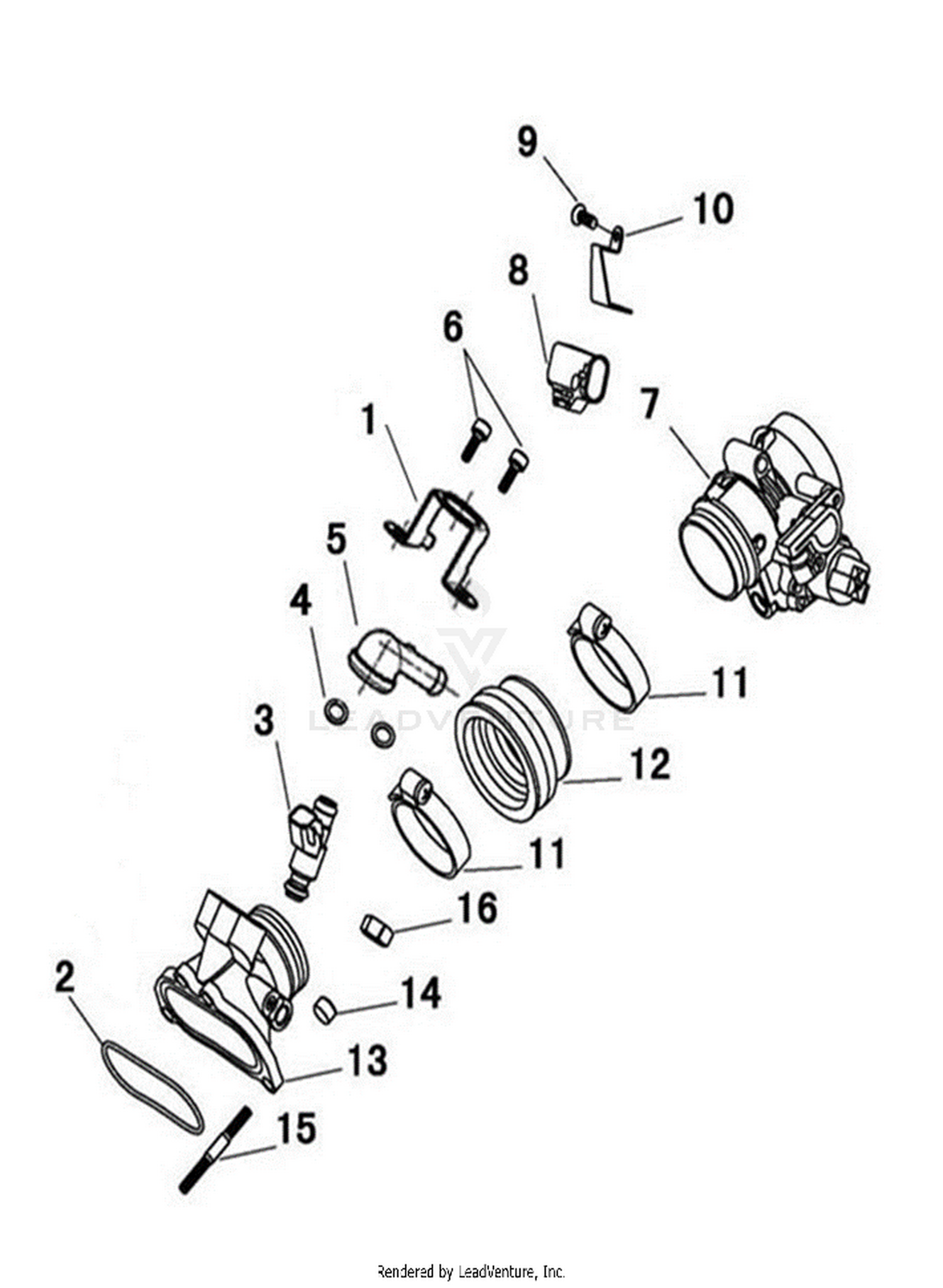

| Ref | Part Number | Description |
|---|
| 1 |
503-01274 |
FUEL INJECTOR CLAMP Price: $9.09 |
| 2 |
503-00942 |
INTAKE TUBE SEAL Price: $8.80 |
| 3 |
503-00943P |
FUEL INJECTOR Price: $184.62 |
| 4 |
503-00922 |
ALUMINUM WASHER 6X12X1.5 Price: $5.36 |
| 5 |
503-01271 |
FUEL INJECTOR FIXED SEAT Price: $6.13 |
| 6 |
503-01270 |
HEX SOCKET HEAD CAP SCREW M6 x 12 Price: $3.98 |
| 7 |
503-01330 |
THROTTLE BODY ASSEMBLY Price: $497.89 |
| 8 |
503-00947 |
TEMPERATURE/PRESSURE SENSOR Price: $442.09 |
| 9 |
503-00948 |
CROSS RECESSED PANHEAD SCREW Price: $3.49 |
| 10 |
503-00949 |
PRESS PLATE Not Available Price: |
| 11 |
503-00950 |
HOSE CLAMP ASSEMBLY Price: $12.55 |
| 12 |
503-00951 |
INTAKE TUBE JOINT STRAIGHT Price: $102.39 |
| 13 |
503-00952 |
INTAKE TUBE ASSEMBLY Price: $40.31 |
| 14 |
503-00953 |
BUSHING Price: $16.15 |
| 15 |
503-00954 |
STUD M6X32 Price: $5.36 |
