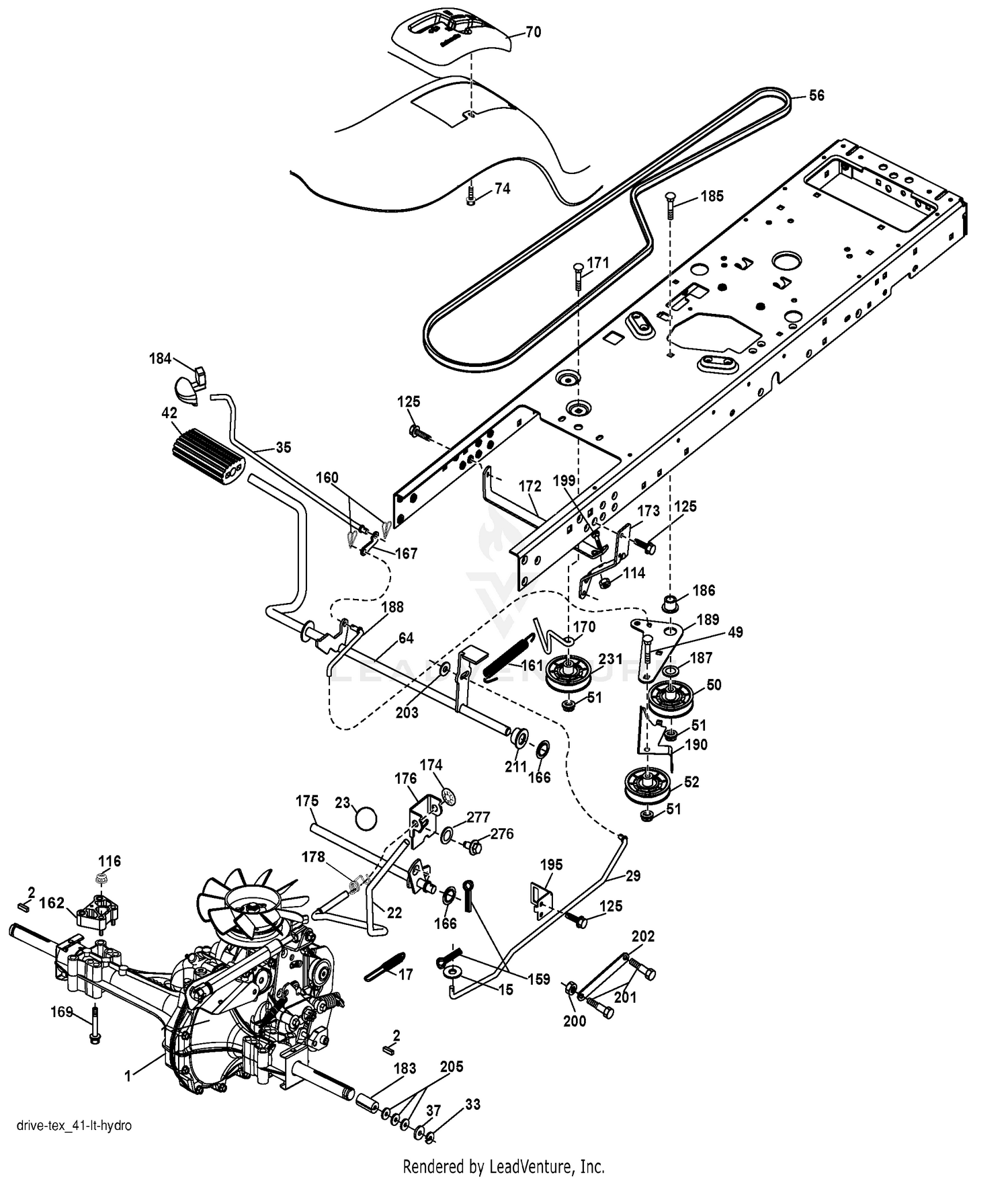

| Ref | Part Number | Description |
|---|
| 1 |
408799 |
Transaxle, Hydro Gear 351-0510 (See Transaxle Breakdown) Price: Call Us |
| 2 |
123583X |
Key Square Price: Call Us |
| 10 |
144-4020 |
KIT-FUEL PUMP, SERVICE This part replaces 107-0122. Price: $192.50 |
| 15 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 17 |
197296 |
Spring, Brake Price: Call Us |
| 20 |
98-7612 |
FILTER-FUEL Price: $10.48 |
| 22 |
197660 |
Rod Shift Price: Call Us |
| 23 |
409154X421 |
Knob Price: Call Us |
| 29 |
197659 |
Rod, Brake Price: Call Us |
| 30 |
99-8343 |
GASKET-MUFFLER This part replaces 98-9611. Price: $14.99 |
| 33 |
12000001 |
Ring E Price: Call Us |
| 35 |
197722 |
Rod, Brake, Park Price: Call Us |
| 37 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 40 |
98-7611 |
CONTROLLER-GLOW This part replaces 107-9097. Price: $316.53 |
| 42 |
8883R |
Cover, Foot Pedal Price: Call Us |
| 49 |
72110614 |
Bolt Price: Call Us |
| 50 |
194327 |
Pulley Idler Flat Price: Call Us |
| 50 |
98-9719 |
THERMOSWITCH Price: $98.79 |
| 51 |
73900600 |
Lock Nut 3/8-16 Price: Call Us |
| 52 |
194326 |
Idler V-Groove 910" Offset Price: Call Us |
| 56 |
140218 |
V-Belt, Drive Price: Call Us |
| 60 |
108-0638 |
BOTTLE-OVERFLOW Price: $33.20 |
| 64 |
196200 |
Shaft Asm. Pedal Brake Control Price: Call Us |
| 70 |
105-3754 |
CAP Price: $7.08 |
| 70 |
193220X428 |
Console Price: Call Us |
| 74 |
142432 |
Screw 1/4 x 1/2 Price: Call Us |
| 80 |
105-3755 |
GASKET Price: $5.57 |
| 90 |
105-3756 |
PLATE Price: $45.83 |
| 100 |
107-7827 |
KUBOTA#16622-8916-4 Price: Call Us |
| 110 |
98-9705 |
STARTER ASM Price: $663.57 |
| 114 |
73800500 |
Nut Lock 5/16-18 UNC Price: Call Us |
| 116 |
73900500 |
Nut Lock Hex Flange 5/16-18 Price: Call Us |
| 125 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 159 |
76020412 |
Pin Cotter 1/8 x 3/4 Price: Call Us |
| 160 |
169484 |
Retainer Clip Price: Call Us |
| 161 |
195403 |
Spring, Return, Clutch Price: Call Us |
| 162 |
195785 |
Spacer Transaxle Price: Call Us |
| 166 |
197290 |
Nut Push .625 Price: Call Us |
| 167 |
405257 |
Latch Brake Parking Price: Call Us |
| 169 |
74490560 |
Bolt 5/16-18 x 3.75 Price: Call Us |
| 170 |
194322 |
Keeper Belt Centerspan Price: Call Us |
| 171 |
72110622 |
Bolt Price: Call Us |
| 172 |
197655 |
Strap Torque RH Price: Call Us |
| 173 |
197656 |
Strap Torque LH Price: Call Us |
| 174 |
197289 |
Nut Push Price: Call Us |
| 175 |
197653 |
Shaft Asm Shift Price: Call Us |
| 176 |
196214 |
Arm Clevis Rod Shift Price: Call Us |
| 178 |
197456 |
Spring Shift Price: Call Us |
| 183 |
137057 |
Spacer Axle Price: Call Us |
| 184 |
198403X505 |
Handle Parking Brake Price: Call Us |
| 185 |
72110620 |
Bolt Price: Call Us |
| 186 |
194321 |
Spacer Retainer Price: Call Us |
| 187 |
19133210 |
Washer Price: Call Us |
| 188 |
194323 |
Link Clutch Ground Drive Price: Call Us |
| 189 |
194317 |
Bellcrank Ground Drive Price: Call Us |
| 190 |
194318 |
Keeper Bellcrank Ground Drive Price: Call Us |
| 195 |
198012 |
Bracket Brake Rod Price: Call Us |
| 199 |
72140508 |
Bolt 5/16-18 UNC x 1 Price: Call Us |
| 200 |
73930500 |
Nut Centerlock 5/16-18 UNC Price: Call Us |
| 201 |
169612 |
Bolt Shoulder 5/16-18 UNC Price: Call Us |
| 202 |
197715 |
Link Transaxle Price: Call Us |
| 203 |
19111116 |
Washer 11/32 x 11/16 x 16 Ga. Price: Call Us |
| 205 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 211 |
196212 |
Bushing Price: Call Us |
| 226 |
74780716 |
Bolt 7/16-14 x 1 Gr 5 Price: Call Us |
| 227 |
405296 |
Washer Serrated Price: Call Us |
