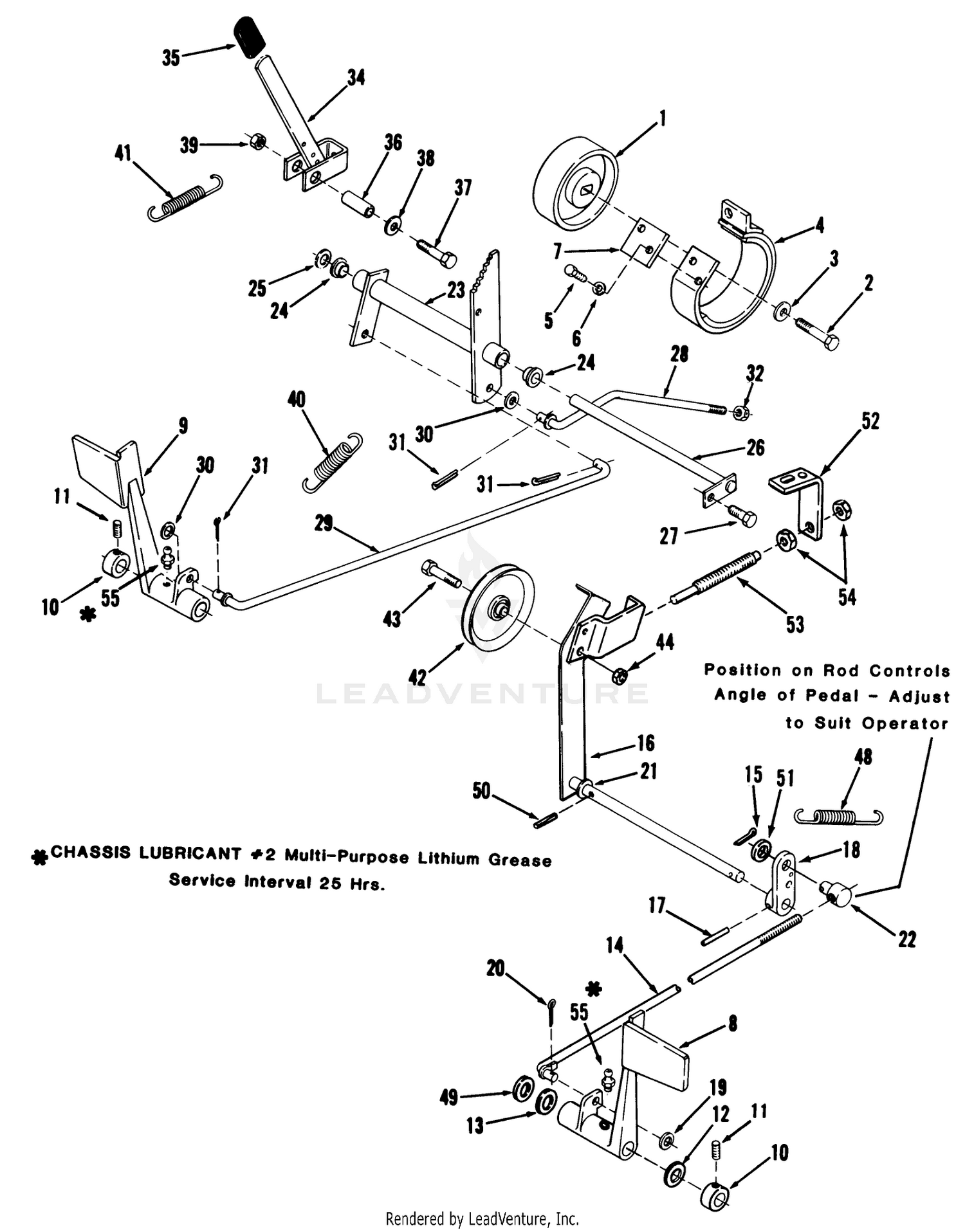

| Ref | Part Number | Description |
|---|
| 1 |
106719 |
DRUM-BRAKE Price: $92.99 |
| 2 |
110234 |
SCREW-HEX HD CAP Price: $3.14 |
| 3 |
2844 |
WASHER Price: $2.69 |
| 4 |
9593 |
BRAKE BAND ASM Price: $148.99 |
| 5 |
321-3 |
SCREW-HH This part replaces 908002. Price: $0.28 |
| 6 |
3253-3 |
WASHER-LOCK This part replaces 920081. Price: $0.31 |
| 7 |
94-6696-03 |
PLATE-BRAKE This part replaces 9598. Price: $6.25 |
| 8 |
114814 |
DISCONTINUED Price: Call Us |
| 9 |
94-3706-01 |
PEDAL-BRAKE, GEAR This part replaces 114813. Price: $107.83 |
| 10 |
83-2770 |
DISCONTINUED This part replaces 1085. Price: Call Us |
| 11 |
3245-32 |
SCREW-HSH This part replaces 909848. Price: $3.59 |
| 12 |
7896 |
WASHER-BOWED Price: $0.60 |
| 13 |
1278 |
WASHER Price: $1.89 |
| 14 |
103347 |
ROD AND GUIDE ASM Price: $33.29 |
| 15 |
3272-6 |
PIN-COTTER This part replaces 932008. Price: $0.25 |
| 16 |
114132 |
DISCONTINUED Price: Call Us |
| 17 |
933190 |
DISCONTINUED Price: Call Us |
| 18 |
105896-03 |
ARM-CLUTCH ROD This part replaces 105896. Price: $36.73 |
| 19 |
920248 |
WASHER-NYLON Price: $0.56 |
| 20 |
3272-10 |
PIN-COTTER This part replaces 932016. Price: $0.25 |
| 21 |
3765 |
SHIM-WASHER Price: $1.00 |
| 22 |
101161 |
TRUNNION Price: $12.68 |
| 23 |
103543-03 |
BELCRANK ASM This part replaces 103543. Price: $51.42 |
| 24 |
7879 |
BUSHING-FLANGED Price: $14.36 |
| 25 |
3256-26 |
WASHER-FLAT This part replaces 920011. Price: $0.39 |
| 26 |
106417 |
ROD ASM Price: $31.84 |
| 27 |
926694 |
DISCONTINUED Price: Call Us |
| 28 |
105900 |
ROD-REAR BRAKE Price: $34.25 |
| 29 |
105886 |
ROD Price: $57.22 |
| 30 |
920248 |
WASHER-NYLON Price: $0.56 |
| 31 |
3272-10 |
PIN-COTTER This part replaces 932016. Price: $0.25 |
| 32 |
3296-39 |
NUT-LOCK, NI This part replaces 915663. Price: $2.29 |
| 34 |
106451-03 |
BRAKE LEVER ASM This part replaces 106451. Price: $15.56 |
| 35 |
6820 |
GRIP Price: $1.45 |
| 36 |
102025 |
DISCONTINUED Price: Call Us |
| 37 |
323-9 |
SCREW-HH This part replaces 908037. Price: $1.29 |
| 38 |
3256-24 |
WASHER-FLAT This part replaces 920009. Price: $0.28 |
| 39 |
32128-19 |
NUT-HF This part replaces 102809. Price: $0.99 |
| 40 |
107677 |
SPRING-BRAKE Price: $4.81 |
| 41 |
103628 |
SPRING-EXTENSION Price: $7.14 |
| 42 |
95-7668 |
PULLEY-V, IDLER This part replaces 7451. Price: $18.59 |
| 43 |
106193 |
BOLT-SPECIAL HEX Price: $5.99 |
| 44 |
3296-39 |
NUT-LOCK, NI This part replaces 915663. Price: $2.29 |
| 48 |
108035 |
SPRING-CLUTCH Price: $8.17 |
| 49 |
9202254 |
WASHER This part replaces 920225. Price: $2.09 |
| 50 |
933267 |
PIN-SPIROL Price: $0.57 |
| 51 |
3256-24 |
WASHER-FLAT This part replaces 920009. Price: $0.28 |
| 52 |
114131 |
BRKT-DAMPER *B Price: $17.53 |
| 53 |
104-5095 |
KIT-CLASSIC CLUTCH DAMPER This part replaces 114134. Price: $272.22 |
| 54 |
32146-20 |
NUT-HEX This part replaces 915090. Price: $3.23 |
