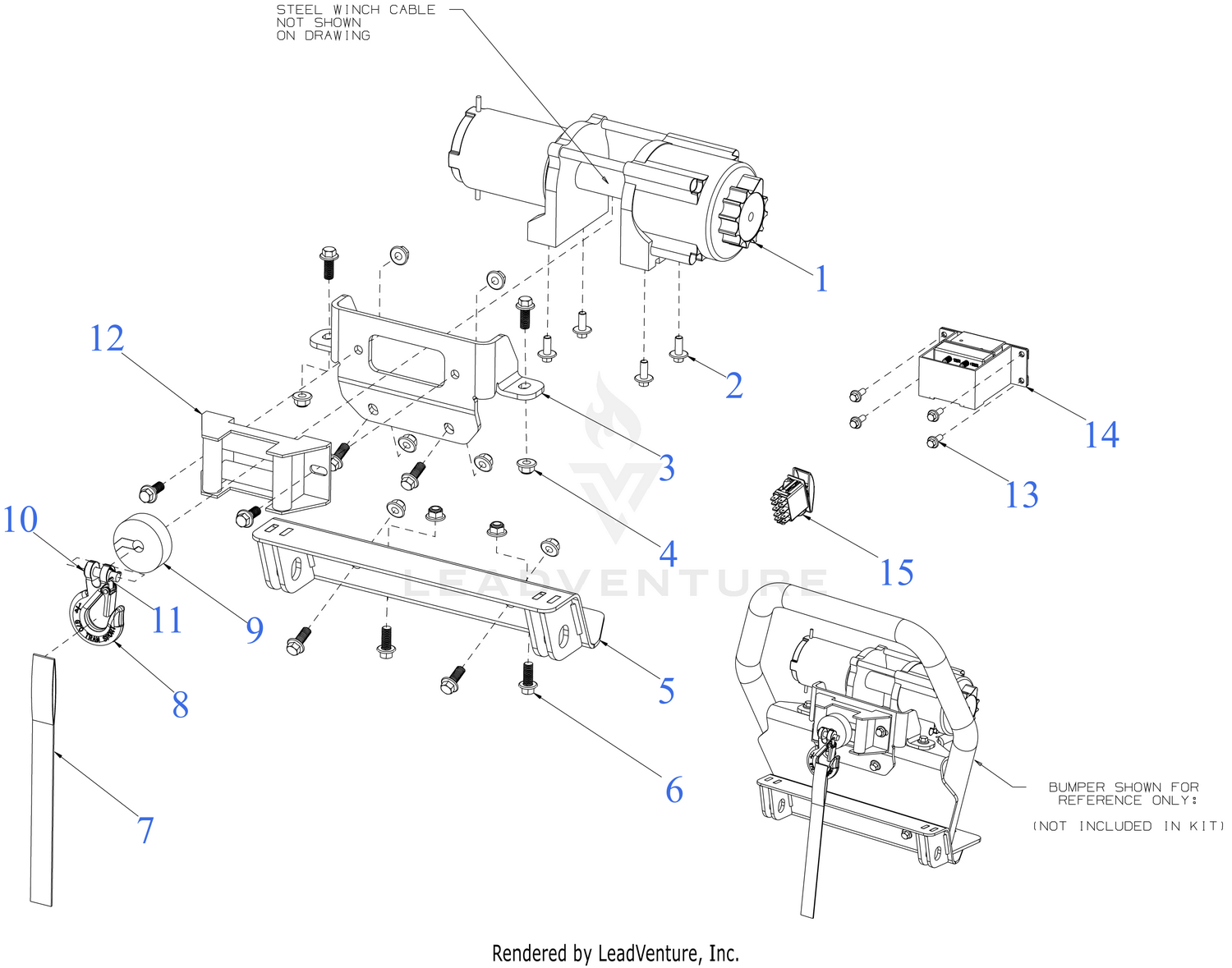

General Assembly
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503-00881 | WINCH 3500 LBS Price: $684.16 |
| 2 | 503-00042 | HEXAGON FLANGE BOLT M8X20 Price: $6.38 |
| 3 | N/A | BRKT:RLR |
| 4 | 503-01375 | LOCK NUT M10X1.25 Price: $6.13 |
| 5 | N/A | BRKT:HGR:PLOW |
| 6 | 503-00409 | HEX FLANGE BOLT M10X1.25X20 Price: $5.36 |
| 7 | 503-00888 | LATCH Price: $12.55 |
| 8 | 503-00889A | LOAD HOOK Price: $22.71 |
| 9 | 503-00900 | PLASTIC CLASP Price: $26.44 |
| 10 | 503-00901 | PIN 9.5X40 Price: $10.03 |
| 11 | 503-01882 | PIN - COTTER 2X30 Price: $3.94 |
| 12 | 503-00893 | WINCH GUIDE PULLEY Price: $77.20 |
| 13 | 503-00011 | HEXAGON FLANGE BOLT M6X16 Price: $5.48 |
| 14 | 503-00890A | WINCH RELAY Price: $94.05 |
| 15 | 503-01700 | SWITCH - WINCH Price: $61.85 |
