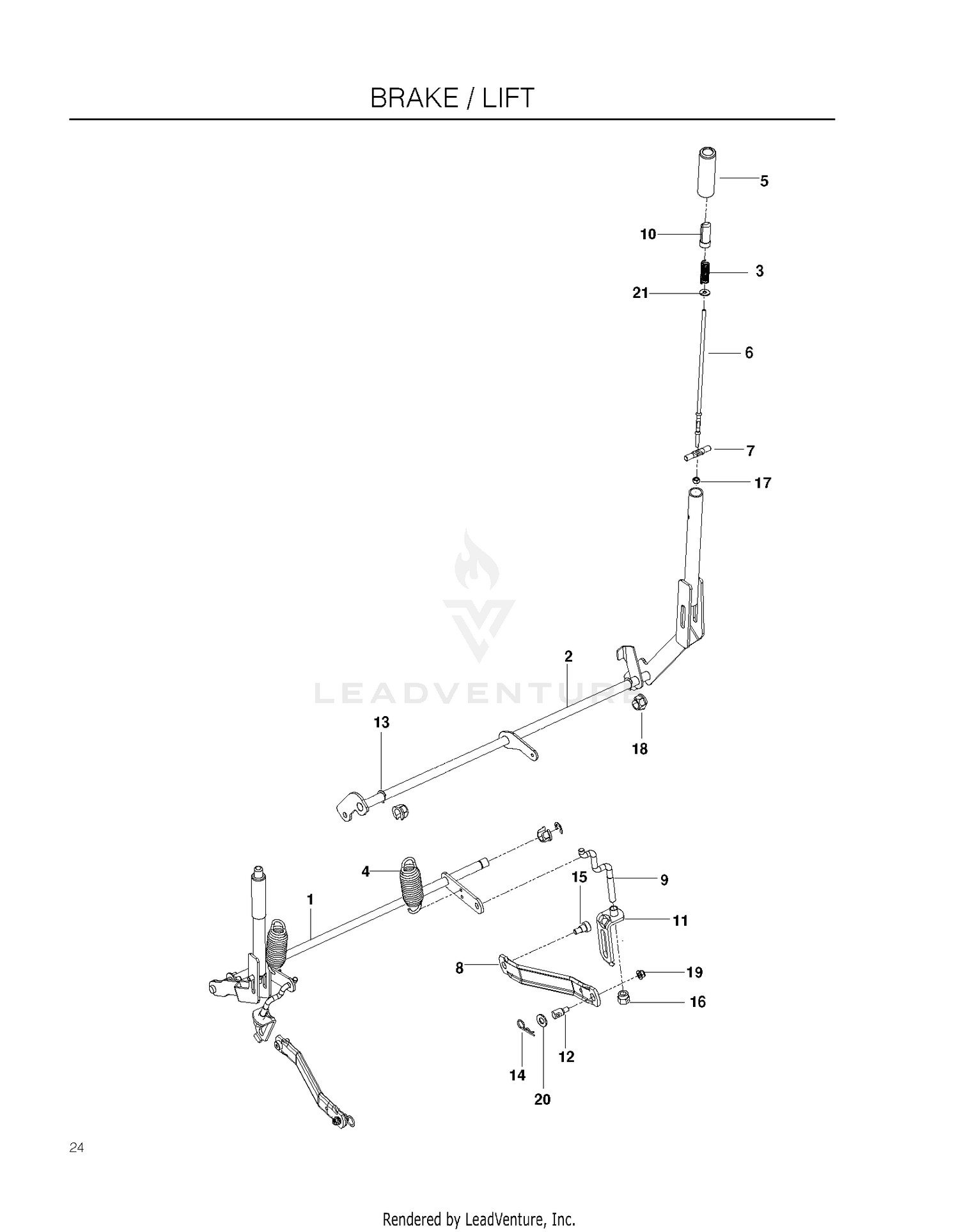

| Ref | Part Number | Description |
|---|
| 1 |
586760203 |
LEVER RZ DECK LIFT WELDMENT DE This part replaces 574216604. Price: $39.99 |
| 1 |
93-5440-03 |
BUMPER ASM Price: $222.85 |
| 2 |
33006-00 |
NUT-HF Price: $1.22 |
| 2 |
580435801 |
SUBASM.SHAFT.BRAKE.WLDMNT.MED This part replaces 522710804. Price: $69.99 |
| 3 |
2410-42 |
CAP-END Price: $11.62 |
| 3 |
510030702 |
Springs This part replaces 510030701. Price: $3.99 |
| 4 |
33106-030 |
SCREW-HHF Price: $1.15 |
| 4 |
596482001 |
Springs This part replaces 539118762. Price: $6.99 |
| 5 |
510207201 |
GRIP, HANDLE, BLACK 4" Price: $5.99 |
| 5 |
93-5594-03 |
GUARD-MUFFLER ASM Price: $220.91 |
| 6 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 6 |
510422902 |
Rods This part replaces 510422901. Price: $4.99 |
| 7 |
583629301 |
ROD.LATCH.RELEASE This part replaces 516008801. Price: $4.99 |
| 7 |
95-5622 |
HANGER-RUBBER Price: $34.18 |
| 8 |
531169201 |
SERVICE KIT ARM ARM.SUSPENSION This part replaces 532195185. Price: $12.99 |
| 8 |
93-5023 |
SPACER Price: $8.77 |
| 9 |
33104-035 |
SCREW-HHF Price: $0.88 |
| 9 |
587623001 |
LINK.ASM.RZ.LIFT.SERVICE This part replaces 525847201. Price: $9.99 |
| 10 |
510207301 |
BUTTON, PUSH, BLACK Price: $4.99 |
| 10 |
93-5946 |
MUFFLER W/ SPARK ARRESTOR Price: $757.04 |
| 11 |
2112-6 |
CLAMP-MUFFLER Price: $7.53 |
| 11 |
587623001 |
LINK.ASM.RZ.LIFT.SERVICE This part replaces 522858601. Price: $9.99 |
| 12 |
33124-020 |
SCREW-CARR Price: $0.88 |
| 12 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 13 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 13 |
539105069 |
E-RING 5/8 Price: $2.99 |
| 14 |
33004-00 |
NUT-HF Price: $0.34 |
| 14 |
596273101 |
Pins This part replaces 539976989. Price: $2.99 |
| 15 |
33104-020 |
SCREW-HHF Price: $2.07 |
| 15 |
596241101 |
Bolts This part replaces 539113621. Price: $2.99 |
| 16 |
589464902 |
NUT.LIFT LNK.7/16-2 This part replaces 532175994. Price: $3.99 |
| 16 |
95-2637-03 |
GUARD-SHAFT Price: $59.47 |
| 17 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 18 |
510184901 |
PLASTIC NUT Price: $4.99 |
| 19 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 20 |
539976982 |
WASHER 5/8 FLAT Price: $3.99 |
