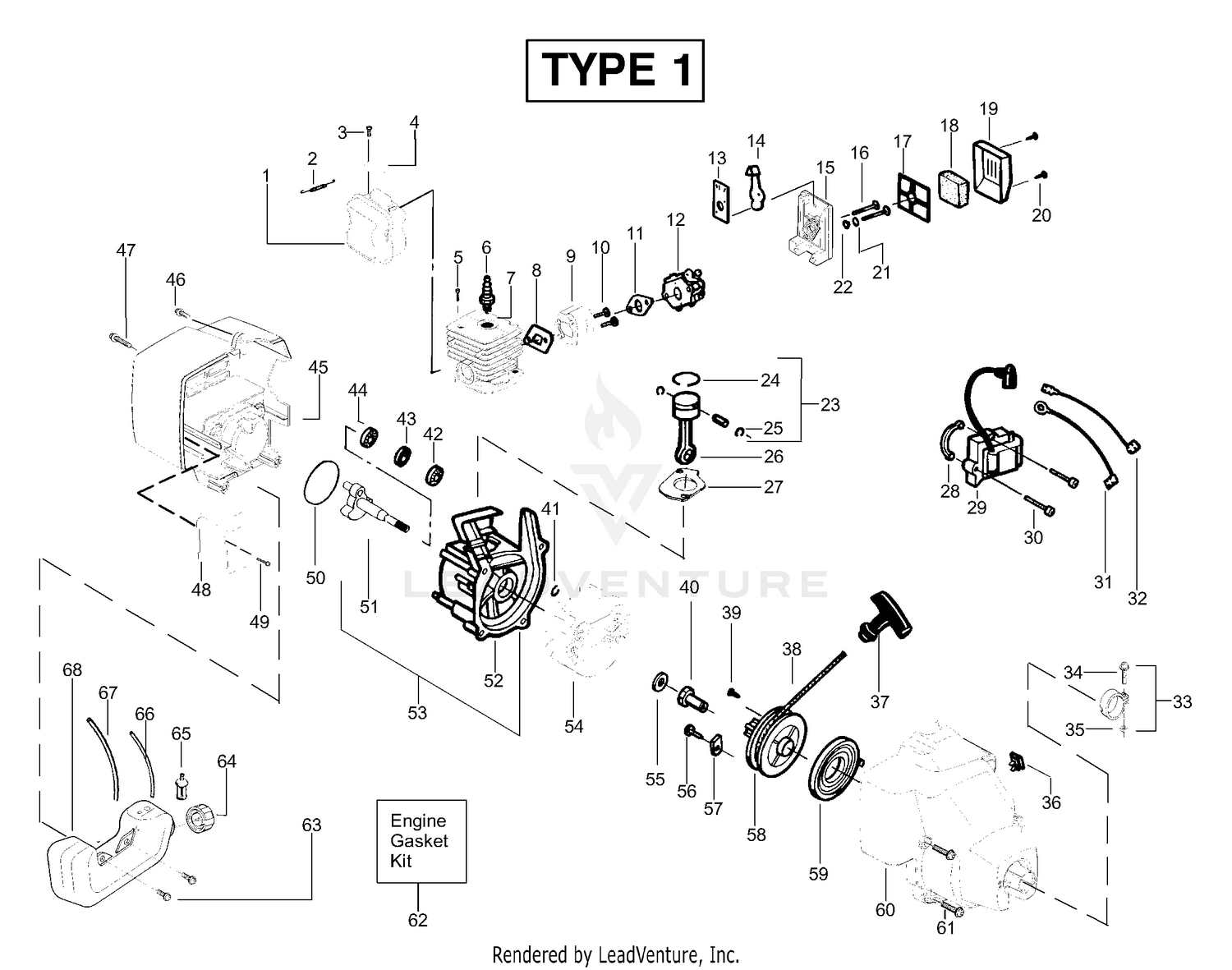

Engine Assembly Type 1

Engine Assembly Type 1

Parts (78)

RefPart NumberDescription
1 111-5084 ROOF Price: $1,293.23
2 111-5311 WASHER Price: Call Us
2 530042088 Spring-Muffler Price: $1.99
3 09369 SETSCREW M8 X 30 Price: $1.40
3 530015241 Screw-Screen Price: $1.99
4 111-5265 BRACKET-NUMBER PLATE Price: $91.80
4 530071361 Kit-Spark Arrestor Price: $4.99
5 111-5264 COVER Price: $337.97
5 530015953 Screw-Cylinder Price: $1.99
6 09475 WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40
6 952030249 Spark Plug (RCJ 6Y) Price: $3.99
7 09368 SCREW Price: $1.40
7 530012416 Cylinder This part replaces 530071359. Price: $17.99
8 09441 NUT M8 NYL INSERT T TYPE Price: $1.39
8 530071363 Gasket-Cylind./Carb. Price: $5.99
9 09472 WASHER-PLAIN Price: $1.25
9 545030402 CARBURETOR ADAPTOR This part replaces 530056403. Price: $8.99
10 09362 SCREW M6 X 16 HEX HD ZINC Price: $1.42
10 530016309 Screw Price: $1.99
11 09438 NUT M6 X 1.5 PLAIN Price: $1.39
11 530071363 Gasket-Carb. Price: $5.99
12 09262 WASHER 1/4 X 3/4 GALV ROOFING This part replaces 61-11-001. Price: $1.40
12 530071443 Kit - Carburetor Ass'y (C1U-W10) Price: $19.32
12 530071628 Kit - Carburetor Ass'y (C1U-W10B) Price: $34.99
13 09363 SETSCREW M6 X 20 Price: $1.31
13 530038747 Choke Plate Mounting Price: $1.99
14 111-5310 WASHER Price: Call Us
14 530038686 Shutter-Choke Price: $1.99
15 530052431 Air Box Price: $1.99
16 111-5373 DISCONTINUED Price: Call Us
16 530016353 Screw Price: $1.99
17 111-5371 NOZZLE-WASHER Price: $5.83
17 530036569 Plate - Filter Support Price: $1.99
18 111-7992 HOSE-WASHER Price: Call Us
18 530036575 Foam-Air Filter Price: $1.99
19 530054414 Cover-Air Filter Price: $3.99
20 530015892 Screw Price: $1.99
21 530015852 Spacer-Choke Price: $1.99
22 530015254 Washer Price: $1.99
24 545154001 RING PISTON This part replaces 530055120. Price: $1.99
25 530015162 Retainer-Piston Pin Price: $1.99
26 530049817 CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99
27 530071363 Gasket-Cylinder Price: $5.99
28 530036145 Spacer-Module Price: $1.99
29 530055160 Ignition Module Price: $34.99
30 530015954 Screw Price: $1.99
31 581425901 SWITCH, GROUND WIRE This part replaces 530014662. Price: $1.99
32 530014663 Assy-Leadwire Price: $5.99
34 530016381 Screw-Nose Cone Price: $2.99
35 530016382 Nut-Nose Cone Price: $2.99
36 530071356 Kit-On/Off Switch Price: $4.99
37 530027569 Handle-Starter Price: $1.99
38 530069232 Kit - Rope Price: $3.99
39 530016080 Screw Price: $1.99
40 530038604 Coupling-Drive Price: $1.99
41 530015941 Retain. Ring-C'shaft Price: $1.99
42 530055728 Outer Bearing Price: $6.99
43 530071615 Kit-C'case Seal Price: $4.99
44 530032125 Inner Bearing Price: $11.99
45 530056710 Shroud-Rear Price: $14.99
46 530015934 Screw Price: $1.99
47 530016386 SCREW This part replaces 530015810. Price: $5.99
48 530055351 Shield-Heat Price: $2.99
49 530015805 Screw Price: $1.99
50 530071363 O-Ring-C'case/Shrd Price: $5.99
51 530054753 Assy-Crankshaft Price: $27.99
54 545221701 FLYWHEEL ASSY This part replaces 530069886. Price: $8.99
55 530015828 Washer-Flat Price: $1.99
56 530015775 Screw Price: $1.99
57 530027523 Retainer-Can Price: $2.99
59 545008010 STARTER SPRING This part replaces 530042085. Price: $3.99
60 530056706 Assy.-Fan Hsg Price: $17.99
61 530016386 SCREW This part replaces 530015810. Price: $5.99
63 530016379 Retainer Price: $2.99
64 530014347 Assy-Fuel Cap Price: $4.99
65 530095646 Assy-Fuel Pickup Price: $2.99
66 530069247 Kit-Fuel Line (Small) Price: $3.99
67 530069216 Kit-Fuel Line (Large) Price: $3.99
