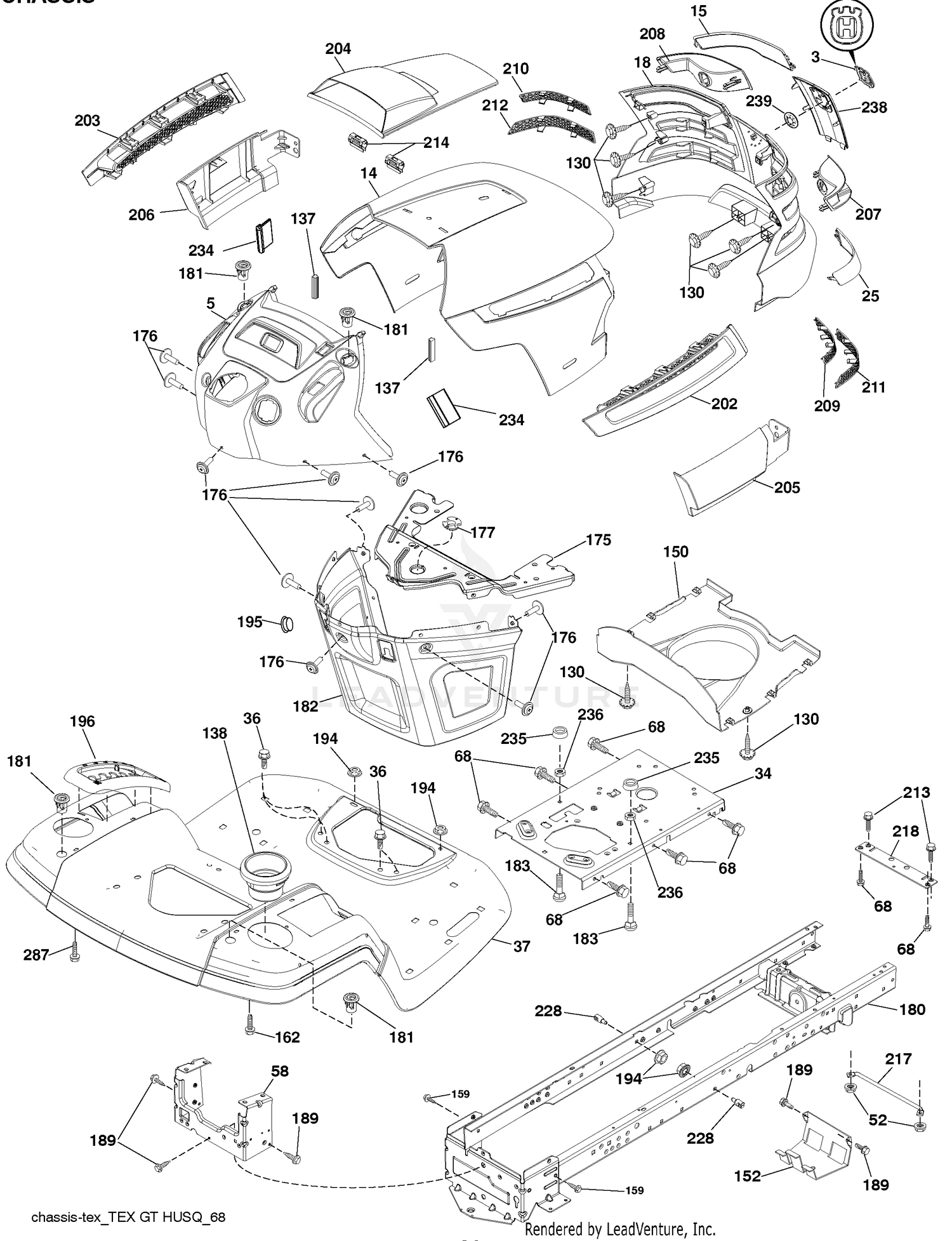

| Ref | Part Number | Description |
|---|
| 1 |
75-3480 |
FRAME-UPPER Price: $323.32 |
| 2 |
108-6703 |
ADJUSTER-SEAT This part replaces 66-8530. Price: $183.47 |
| 3 |
532430771 |
LOGO.HUSQ.GT.LT.CROWN.H Price: $5.99 |
| 3 |
66-8520 |
BUMPER-DOWNSTOP Price: $37.56 |
| 4 |
82-9060 |
DISCONTINUED Price: Call Us |
| 5 |
532408703 |
DASH Price: $54.99 |
| 5 |
76-1960 |
KNOB KIT This part replaces 77-2870. Price: $357.33 |
| 6 |
76-1910 |
DISCONTINUED Price: Call Us |
| 7 |
66-8560 |
NUT-PUSH Price: $5.97 |
| 8 |
76-1940 |
SPRING-EXTENSION Price: $66.03 |
| 9 |
76-1920 |
SLEEVE-BEARING Price: $22.50 |
| 10 |
106-1031 |
TENSION ADJUSTER KNOB ASM This part replaces 76-1930. Price: $68.93 |
| 11 |
66-8610 |
DISCONTINUED Price: Call Us |
| 12 |
66-9290 |
SPACER-SUSPENSION Price: $3.60 |
| 13 |
75-3580 |
PLATE-SEAT Price: $213.06 |
| 14 |
532442396 |
HOOD.ASM.HUSQVARNA.GT.TEX.ORAN This part replaces 532411046. Price: $149.99 |
| 14 |
75-3510 |
BOLT-SHOULDER Price: $14.55 |
| 15 |
532198907 |
LENS.LH.TEX.GT.HUSQ.CL Price: $22.99 |
| 15 |
80-4860 |
PIN-CLEVIS Price: $6.13 |
| 16 |
75-3530 |
SPRING-COMPRESSION Price: $31.98 |
| 17 |
3285-19 |
PIN-GROOVE This part replaces 75-3540. Price: $1.79 |
| 18 |
532408607 |
GRILL.ASM.HUSQ.TG/CRD.W/TRIM Price: $129.99 |
| 18 |
75-3550 |
BUMPER-SEAT Price: $18.48 |
| 19 |
76-2940 |
BUMPER Price: $9.73 |
| 20 |
75-3570 |
TIP-VINYL Price: $2.48 |
| 21 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 22 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 23 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 24 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 25 |
32128-26 |
NUT-FLANGE Price: $5.89 |
| 25 |
532198906 |
LENS.RH.TEX.GT.HUSQ.CL Price: $32.99 |
| 26 |
3256-46 |
WASHER-FLAT Price: $5.77 |
| 27 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 28 |
93-3164 |
CAP Price: $11.64 |
| 29 |
93-3163 |
SPRING Price: $26.01 |
| 30 |
93-3165 |
BRACKET Price: $37.47 |
| 31 |
322-6 |
SCREW-HH Price: $0.45 |
| 32 |
3253-33 |
WASHER-LOCK Price: $1.19 |
| 34 |
580910801 |
PLATE.ENGINE.WELDED.CHASSIS This part replaces 532196125. Price: $59.99 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
597652401 |
SERVICE KIT FENDER.TLT.CPH.615 This part replaces 532418714. Price: $219.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 58 |
531152601 |
SERVICE KIT DRAWBAR FENDER DRA This part replaces 532412280. Price: $44.99 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 130 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 138 |
532439747 |
HOLDER.CUP.LT.GREY This part replaces 532402954. Price: $4.99 |
| 150 |
532198512 |
AIR.DUCT.HOOD.TEX.GT.HUSQ Price: $29.99 |
| 152 |
531169901 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532199535. Price: $19.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE This part replaces 532196304. Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195227 |
BUSHING, STEERING Price: $5.99 |
| 180 |
532415063 |
CHASS.WLDMNT.TL.12GA/2P.48/54 Price: $169.99 |
| 181 |
532403025 |
BUSHING.MNT.FEND.CRGO. Price: $4.99 |
| 182 |
532406859 |
DASH.LOWER.COMMON.12V.ADAPTOR Price: $84.99 |
| 183 |
595305701 |
Screws This part replaces 874520520. Price: $3.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 195 |
532404137 |
PLUG.HOLE.DASH.LOWER.12V.BLK Price: $4.99 |
| 196 |
547634701 |
CONSOLE.DECKLIFT.GREY.PKG.KIT This part replaces 532414580. Price: $17.99 |
| 202 |
532403048 |
VENT.SIDE.HOOD.HUSQ.RH.GREY Price: $7.99 |
| 203 |
532403076 |
VENT.SIDE.HOOD.HUSQ.LH.GRAY Price: $7.99 |
| 204 |
532416615 |
VENT.ASM.TORPHD.HUSQGT.LOGO.CL This part replaces 532416613. Price: $16.99 |
| 205 |
532401709 |
SKIRT.HOOD.SIDE.HUSQ.RH.GREY Price: $6.99 |
| 206 |
532401711 |
SKIRT.HOOD.SIDE.HUSQ.LH.GREY Price: $5.99 |
| 207 |
532197198 |
BEZEL.RH.TEX.GT.HUSQ Price: $19.99 |
| 208 |
532197199 |
BEZEL.LH.TEX.GT.HUSQ Price: $17.99 |
| 209 |
532199130 |
INSERT.HEX.GRILL.HUSQ.GREY Price: $4.99 |
| 210 |
532199131 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 211 |
532199132 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 212 |
532199133 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 213 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 218 |
532196395 |
X-PIECE.HOOD.STOP.NON/ Price: $6.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 234 |
532404742 |
BUMPER.HOOD.TEX.HUSQVARNA Price: $5.99 |
| 235 |
596564201 |
Spacers This part replaces 532406129. Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 238 |
532408606 |
TRIM.HUSQ.TG/CRD.SERVICE Price: $17.99 |
| 239 |
532110452 |
NUT PUSH M Price: $2.99 |
