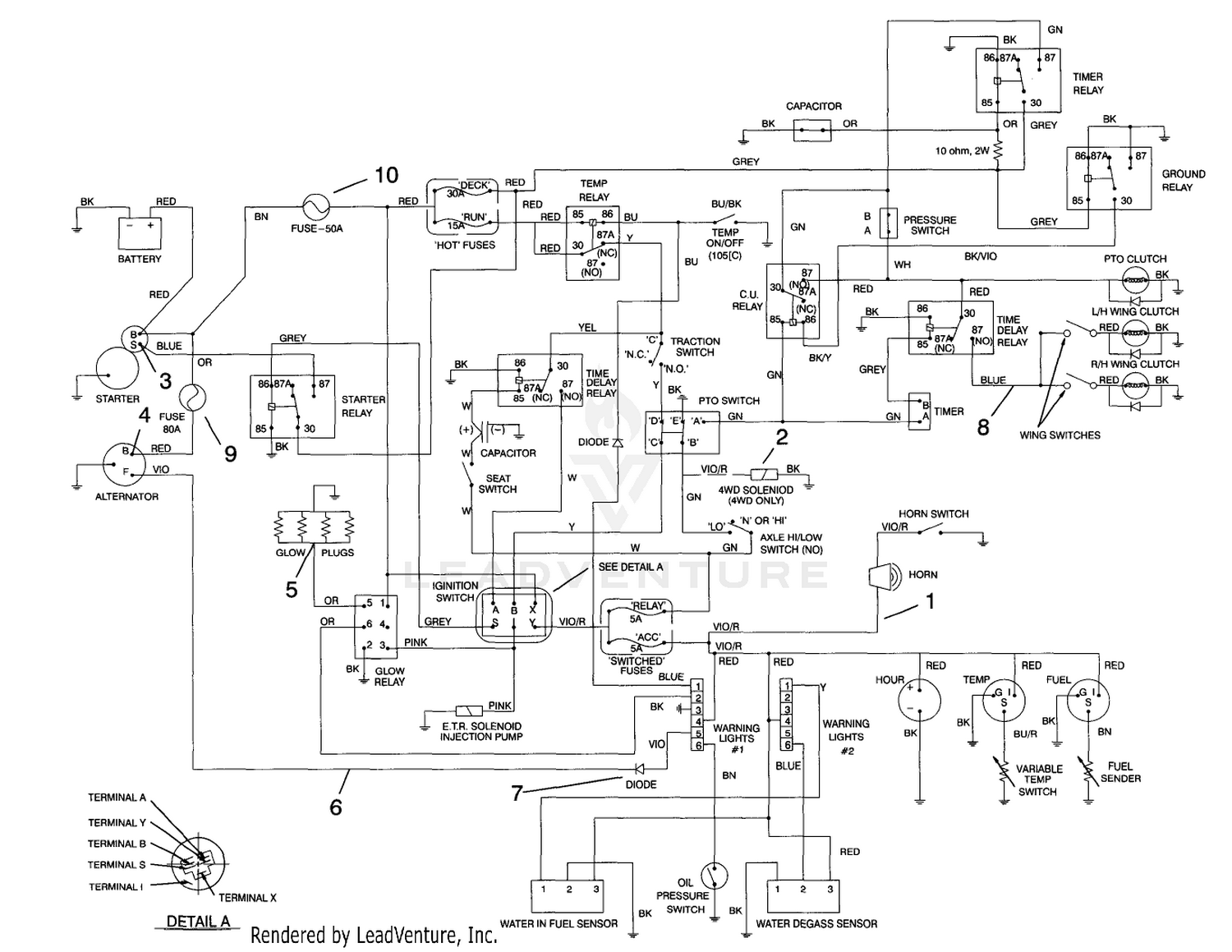

Electrical Schematic (europe)
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 86-5470 | DISCONTINUED Price: Call Us |
| 2 | 76-4880 | CONNECTOR Price: $10.76 |
| 3 | 68-9400 | NUT-FLANGE This part replaces 48-7930. Price: $2.29 |
| 4 | 48-7890 | NUT-HEX Price: $0.25 |
| 5 | 48-7880 | NUT-HEX Price: $0.25 |
| 6 | 94-5623 | MAIN HARNESS Price: $1,410.45 |
| 7 | 86-7470 | DIODE ASM Price: $27.38 |
| 8 | 86-1910 | WIRE HARNESS-DECK Price: $326.77 |
| 9 | 94-8001 | FUSE-80 AMP Price: $25.34 |
