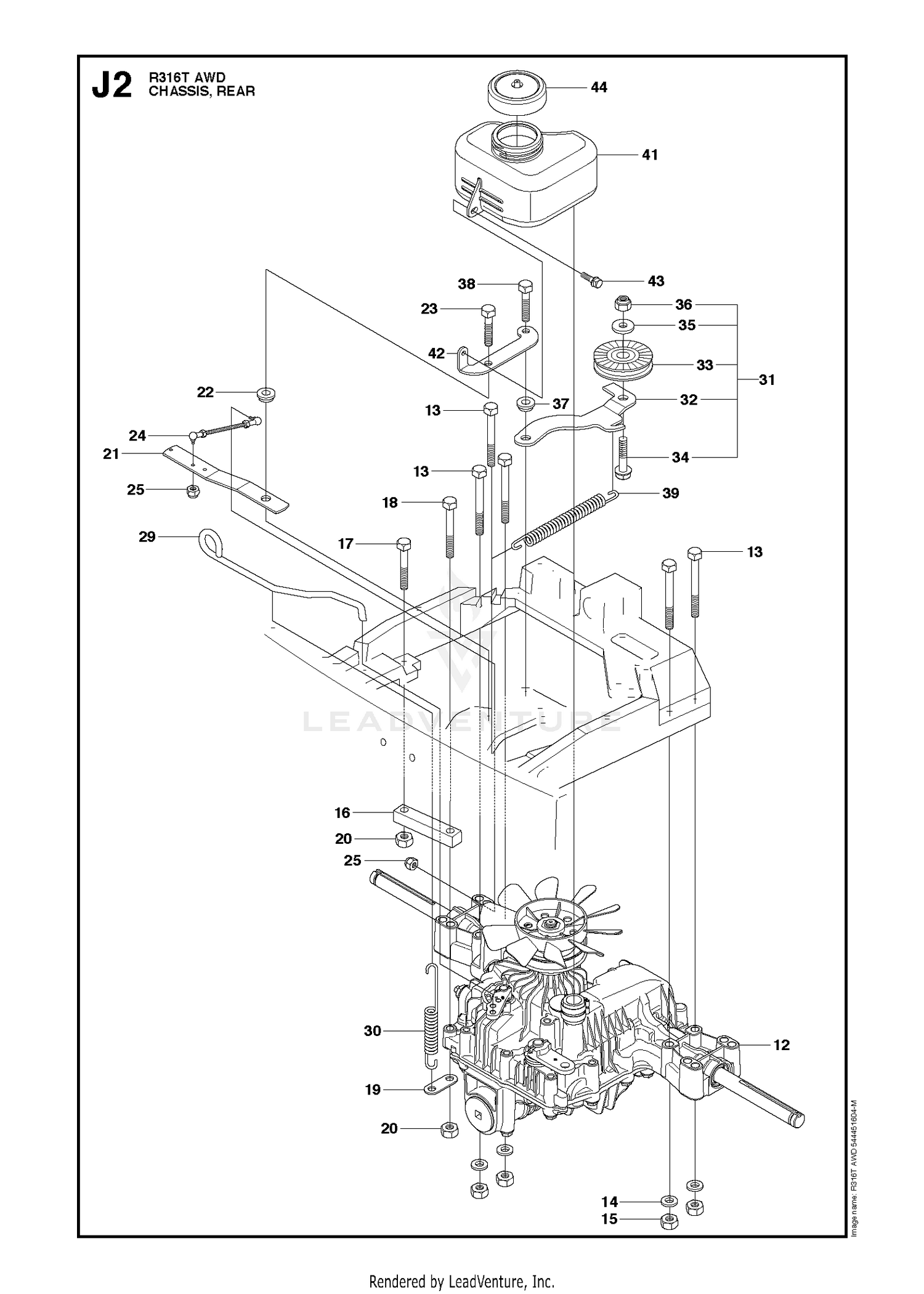

CHASSIS REAR
Parts (62)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 132-6203 | CONTROL KIT Price: $3,452.34 |
| 2 | 132-6204 | COIL KIT Price: $736.78 |
| 3 | 136-4397 | CHARGE RELIEF KIT Price: $86.77 |
| 5 | 136-4399 | SHAFT Price: $425.69 |
| 6 | 75-0460 | BEARING-BALL Price: $175.71 |
| 7 | 125-5280 | RING-RETAINING Price: $11.40 |
| 8 | 131-8616 | RING-RETAINING Price: $16.97 |
| 9 | 127-6214 | SEAL-LIP Price: $131.03 |
| 10 | 136-4398 | VALVE PLATE Price: $462.40 |
| 11 | 132-6206 | O-RING Price: $7.73 |
| 12 | 125-5288 | O-RING Price: $34.23 |
| 12 | 590716801 | TRANSMISSION K574A This part replaces 544116101. Price: $849.99 |
| 13 | 131-7388 | O-RING Price: Call Us |
| 13 | 725246751 | Hex Bolt Price: $4.99 |
| 14 | 125-5274 | SCREW Price: $8.89 |
| 14 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 15 | 125-5302 | PLUG Price: $25.48 |
| 15 | 731231801 | NUT Price: $3.99 |
| 16 | 125-5273 | NUT-SEAL Price: $21.58 |
| 16 | 506987201 | BRACKET Price: $19.99 |
| 17 | 125-5272 | SCREW Price: $9.02 |
| 17 | 725245951 | SCREW Price: $4.99 |
| 18 | 125-5283 | GASKET-CONTROL Price: $41.13 |
| 18 | 725246251 | SCREW Price: $4.99 |
| 19 | 125-5269 | RING-LOCKING Price: $4.61 |
| 19 | 506599301 | CONNECTOR Price: $5.99 |
| 20 | 125-5266 | SCREEN Price: $35.26 |
| 20 | 731231801 | NUT Price: $3.99 |
| 21 | 125-5282 | SCREW Price: $9.84 |
| 21 | 506987403 | ARM Price: $12.99 |
| 22 | 125-5270 | SCREW Price: $9.02 |
| 22 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 23 | 125-5298 | O-RING Price: $1.68 |
| 23 | 725245171 | SCREW Price: $2.08 |
| 24 | 506987501 | ROD Price: $32.99 |
| 24 | 92-1353 | SHIM KIT Price: $36.78 |
| 25 | 125-5301 | PLUG Price: $56.91 |
| 25 | 732211401 | LOCKNUT M5 Price: $2.99 |
| 26 | 75-0240 | O-RING Price: $2.36 |
| 27 | 84-0560 | O-RING Price: $4.73 |
| 28 | 69-3080 | PLUG Price: $40.47 |
| 29 | 506988201 | Rod Price: $12.71 |
| 29 | 69-3130 | PLUG Price: $62.97 |
| 30 | 506834301 | SPRING Price: $3.99 |
| 30 | 75-0170 | PLUG-THREAD, STRAIGHT Price: $18.20 |
| 31 | 125-5270 | SCREW Price: $9.02 |
| 31 | 506988401 | TENSIONER Price: $54.99 |
| 32 | 110-6485 | PIN-SLOTTED Price: $1.97 |
| 32 | 588740401 | BELT TENSIONER ARM This part replaces 506988501. Price: $14.99 |
| 33 | 136-4393 | VALVE-RELIEF, HIGH PRESSURE Price: $709.20 |
| 33 | 506946901 | PULLEY Price: $34.99 |
| 34 | 136-4392 | VALVE-RELIEF, HIGH PRESSURE Price: $709.20 |
| 35 | 132-6205 | OVERHAUL SEAL KIT Price: $239.18 |
| 35 | 734116441 | SPACER Price: $3.99 |
| 36 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 37 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 38 | 725245171 | SCREW Price: $2.08 |
| 39 | 594924101 | Springs This part replaces 506988601. Price: $3.99 |
| 41 | 544100102 | EXPANSION TANK RIDER EXTENDED This part replaces 544100101. Price: $54.99 |
| 42 | 544121701 | BRACKET Price: $6.99 |
| 43 | 725236461 | SCREW Price: $2.99 |
| 44 | 506673301 | FUEL CAP Price: $27.99 |
