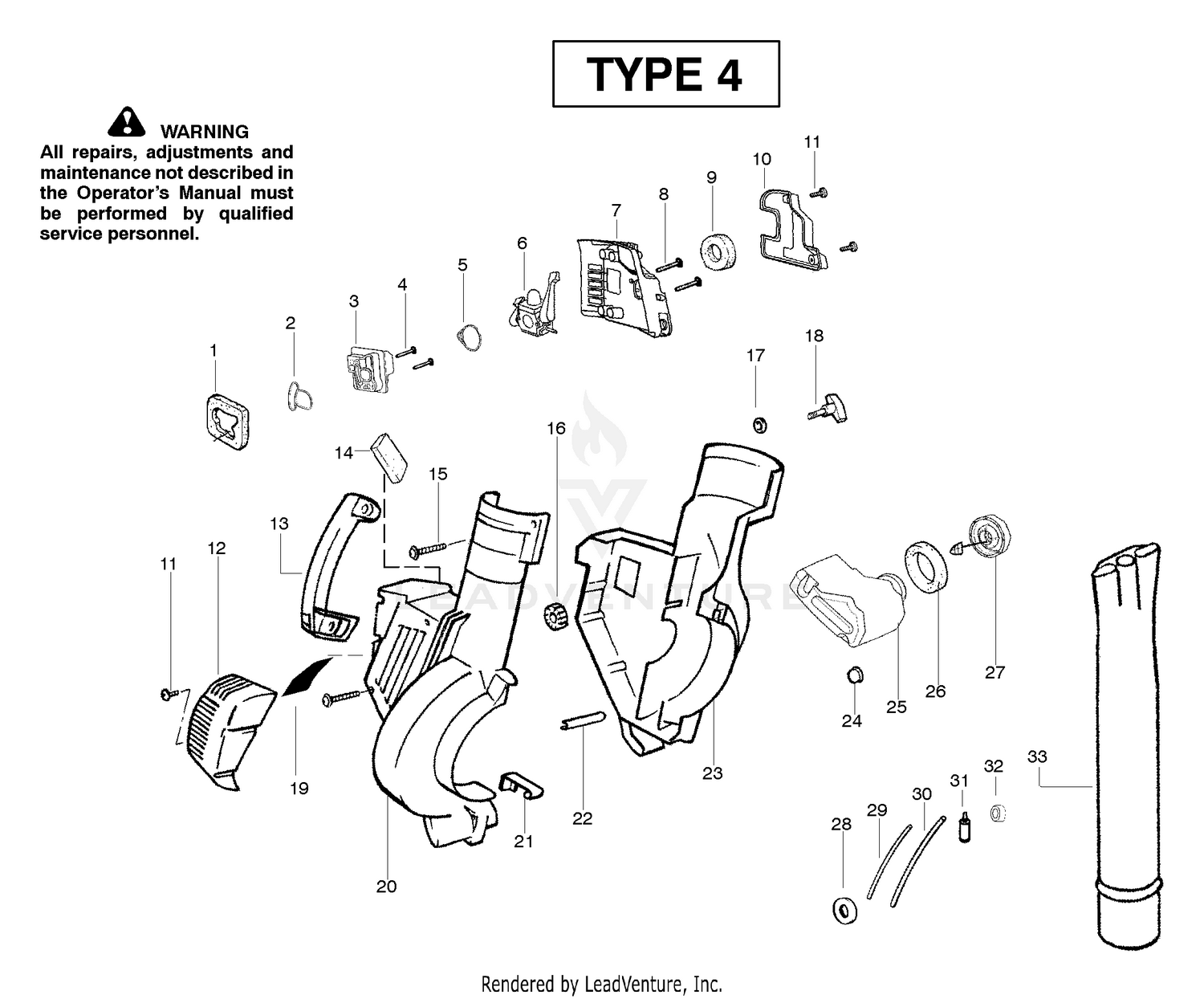

| Ref | Part Number | Description |
|---|
| 1 |
108-3158 |
HOUSING-DRIVE, BELT Price: $521.42 |
| 1 |
530071459 |
Air Dam (kit) Price: $4.99 |
| 2 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 2 |
530071458 |
Gasket-Adaptor (kit) Price: $5.99 |
| 3 |
530035561 |
Carburetor Adaptor Price: $11.99 |
| 4 |
530016309 |
Screw Price: $1.99 |
| 5 |
530071458 |
Gasket-Carburetor (kit) Price: $5.99 |
| 6 |
530071775 |
KIT CARB ASSY C1Q-W11 This part replaces 530071632. Price: $44.99 |
| 7 |
530056629 |
Air Box Price: $5.99 |
| 8 |
530015849 |
Screw-Carb. Price: $1.99 |
| 8 |
65-9560 |
ADJUSTMENT KNOB ASM Price: $190.35 |
| 9 |
530049383 |
Filter-Air Price: $1.99 |
| 9 |
65-9550 |
CAP Price: $28.33 |
| 10 |
530056581 |
Cover-Air Filter Price: $3.99 |
| 10 |
65-8090 |
BLOCK-MOUNT Price: $91.37 |
| 11 |
530016349 |
Screw Price: $1.99 |
| 11 |
65-9830 |
RAMP-QUICK UP Price: $128.27 |
| 12 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 12 |
545085001 |
Guard-Muffler Price: $11.99 |
| 13 |
530095469 |
Handle Price: $7.99 |
| 13 |
65-9810 |
SPRING-ADJUSTMENT Price: $11.26 |
| 14 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 14 |
530071459 |
Foam - 71.12mm (kit) Price: $4.99 |
| 15 |
2410-68 |
COVER-PIN Price: $0.38 |
| 15 |
530015886 |
Screw Price: $1.99 |
| 16 |
530049323 |
Isolator Price: $2.99 |
| 16 |
65-9980 |
SPACER Price: $13.03 |
| 17 |
3274-22 |
SCREW-HSH Price: $0.68 |
| 17 |
530015197 |
Nut Price: $1.99 |
| 18 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 18 |
530016322 |
Knob-Tube Clamp Price: $1.99 |
| 19 |
530071458 |
Reflector-Heat (kit) Price: $5.99 |
| 19 |
65-9340 |
BOLT-SHOULDER Price: $10.02 |
| 20 |
65-9320 |
IDLER Price: $33.55 |
| 21 |
251-328 |
BEARING-BALL Price: $14.66 |
| 21 |
530402044 |
Spring-Cover Latch Price: $3.99 |
| 22 |
117-1399 |
BOLT-CARRIAGE Price: $22.81 |
| 22 |
530049617 |
Guide-Starter Rope Price: $1.99 |
| 23 |
530059182 |
Housing-Left Price: $22.99 |
| 23 |
65-9860 |
BEARING Price: $7.60 |
| 24 |
530036792 |
Isolator-Crankcase Price: $4.99 |
| 24 |
65-9330 |
SPACER Price: $2.58 |
| 25 |
545058007 |
Assy-Fuel Tank This part replaces 530049491. Price: $22.99 |
| 25 |
92-3046 |
SPACER Price: $36.62 |
| 26 |
251-327 |
BEARING-BALL Price: $21.22 |
| 26 |
530049527 |
Gasket-Fuel Tank Price: $1.99 |
| 27 |
530057973 |
Assy - Fuel Cap w/retainer This part replaces 530049386. Price: $7.99 |
| 27 |
95-5728 |
DISCONTINUED Price: Call Us |
| 28 |
107-8198 |
COVER-HOUSING, DRIVE BELT Price: $112.44 |
| 28 |
530049656 |
Grommet-Shroud Price: $1.99 |
| 29 |
530069247 |
Kit-Line Carb/Purge Price: $3.99 |
| 29 |
65-8110 |
SPACER Price: $6.19 |
| 30 |
108-3153 |
SCREW-HSBH Price: $2.04 |
| 30 |
530069216 |
Kit-Line Tank/Purge Price: $3.99 |
| 31 |
3253-12 |
WASHER-LOCK/SP Price: $0.25 |
| 31 |
530095646 |
Assy-Fuel Pick-up Price: $2.99 |
| 32 |
530071459 |
Grommet-Fuel line (kit) Price: $4.99 |
| 33 |
323-34 |
SCREW-HH Price: $0.54 |
| 33 |
530095593 |
Tube-Blower Price: $11.99 |
