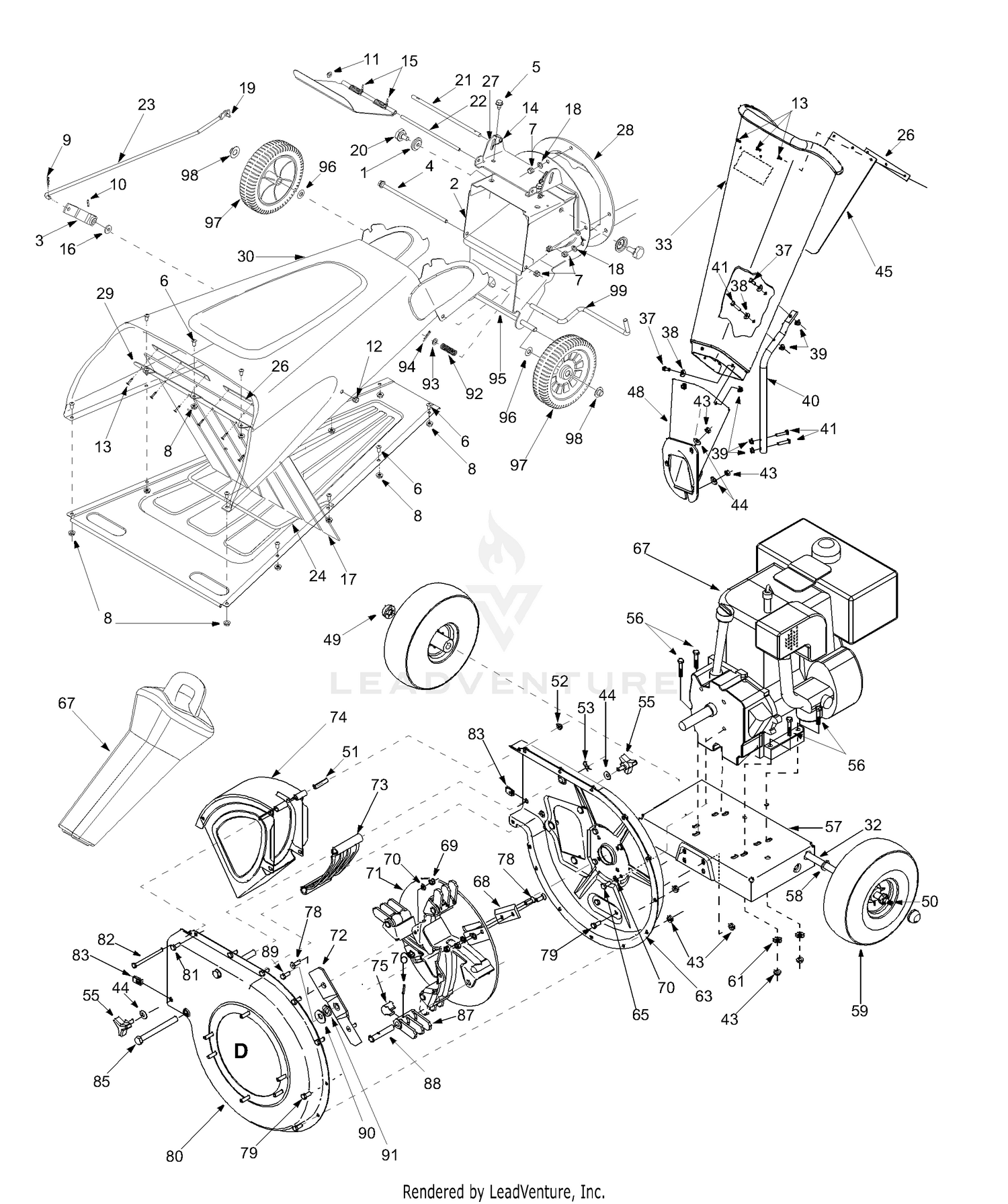

| Ref | Part Number | Description |
|---|
| 1 |
11480 |
WASHER-STOP Not Available Price: |
| 2 |
681-0118 |
INLET GUIDE ASSEMBLY Not Available Price: |
| 3 |
681-0144 |
ARM BRACKET ASSEMBLY Not Available Price: |
| 4 |
710-0542 |
SCREW 5/16-18 x 8.375 GR5 Not Available Price: |
| 5 |
710-0607 |
Hex Washer Screw: 5/16-18 x 0.5" Price: $6.06 |
| 6 |
710-3256 |
Button-Head Screw 1/4-20 x 0.5" Price: $9.56 |
| 7 |
712-0429 |
Lock Nut: 5/16-18 Price: $3.56 |
| 8 |
912-3027 |
LOCK NUT 1/4 This part replaces 712-3027. Price: $3.85 |
| 9 |
714-0104 |
Internal Cotter Pin Price: $3.90 |
| 10 |
715-0129 |
Spiral Pin Price: $4.19 |
| 11 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 12 |
726-0135 |
Speed Cap Nut Price: $5.94 |
| 13 |
728-0175 |
Pop Rivet Price: $4.04 |
| 14 |
932-0546 |
Torsion Spring 1.06" Lg This part replaces 732-0546. Price: $4.25 |
| 15 |
932-0629 |
TORSION SPRING Not Available This part replaces 732-0629. Price: |
| 16 |
735-0127 |
Rubber Washer Price: $5.94 |
| 17 |
735-0651 |
FLAP-RUBBER Not Available Price: |
| 18 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 19 |
738-0137A |
Shdr. Scr: .340 x .285 x 1/4-20 Price: $9.83 |
| 20 |
738-0946 |
SHOULDER BOLT Not Available Price: |
| 21 |
747-0531A |
BAR-RELEASE Not Available Price: |
| 22 |
747-0747 |
ROD-HOPPER DOOR Not Available Price: |
| 23 |
747-1124 |
FLAP CONTROL ROD Not Available Price: |
| 24 |
747-1125 |
BAIL RETAINER FLAP Not Available Price: |
| 26 |
781-0633 |
Chute Flap Strip Price: $9.09 |
| 27 |
781-0698 |
HOPPER BRACKET Not Available Price: |
| 28 |
781-0715-0637 |
SHREDDER PLATE Not Available This part replaces 781-0715. Price: |
| 29 |
781-0752 |
BRACKET-MT Not Available Price: |
| 30 |
781-0754 |
HOPPER UPP Not Available Price: |
| 32 |
738-0813 |
Shredder Axle Price: $46.13 |
| 33 |
753-05094 |
CHIPPER SHREDDER KIT This part replaces 731-1899. Price: $128.73 |
| 37 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 38 |
736-0173 |
Flat Washer .28 I.d. x .74 O.d. Price: $3.76 |
| 39 |
912-3027 |
LOCK NUT 1/4 This part replaces 712-3027. Price: $3.85 |
| 40 |
749-1004 |
Chipper Chute Support Price: $38.35 |
| 41 |
710-0106 |
Hex Scr. 1/4-20 x .625 (Gr. 2) Price: $3.66 |
| 43 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 44 |
736-0242 |
Bell Washer .345" I.d. x .88" Price: $3.75 |
| 45 |
735-0249A |
CHUTE FLAP This part replaces 735-0249. Price: $21.78 |
| 48 |
681-0068A |
CHIPPER CHUTE ASSEMBLY Not Available Price: |
| 49 |
726-0214 |
Push Cap 5/8" dia. Price: $9.11 |
| 50 |
934-0255 |
TUBELESS VALVE This part replaces 734-0255. Price: $3.83 |
| 51 |
950-0793 |
SPACER-.260 x .3 This part replaces 750-0793. Price: $3.15 |
| 52 |
912-3027 |
LOCK NUT 1/4 This part replaces 712-3027. Price: $3.85 |
| 53 |
714-0149B |
Internal Cotter Pin Price: $3.95 |
| 55 |
720-0170 |
Hand Knob Price: $9.85 |
| 56 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75 |
| 57 |
681-0184C |
FRAME ASSEMBLY This part replaces 781-0510B. Price: $89.70 |
| 58 |
736-0366 |
Flat Washer 1.12 x .64 x .120 Price: $3.82 |
| 59 |
934-04009 |
WHEEL ASSEMBLY (10 x 4 x 4) (GRAY) Not Available This part replaces 634-04009. Price: |
| 61 |
736-0170 |
SPECIAL WASHER Not Available Price: |
| 63 |
681-0117 |
Flail Housing Ass'y. (Inner) Price: $131.75 |
| 65 |
710-0157 |
Hex Bolt 5/16-24 x .75" Lg. Price: $3.90 |
| 67 |
731-1617 |
Tamper Plug (If Equipped) Price: $122.92 |
| 68 |
942-0544B |
CHIPPER BLADE This part replaces 742-0544. Price: $78.87 |
| 69 |
712-0411 |
Hex Top Lock Nut 5/16-24 Price: $3.71 |
| 70 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 71 |
981-04096 |
Impeller Assembly (standard) This part replaces 681-0030. Price: $527.33 |
| 72 |
942-0571 |
Blade This part replaces 742-0571. Price: $32.75 |
| 73 |
781-0457-0637 |
SHREDDER SCREEN This part replaces 781-0457. Price: $36.19 |
| 74 |
681-0094A |
DISCHARGE CHUTE ASSEMBLY This part replaces 681-0094. Price: $119.10 |
| 75 |
781-0735 |
Retaining Clip Price: $3.71 |
| 76 |
715-0166 |
Spring Roll Pin Price: $5.94 |
| 78 |
710-1054 |
Flat Head Scr. 5/16-24 x .75" Price: $3.71 |
| 79 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 80 |
681-0004A |
Flail Housing Ass'y. (Outer) Price: $168.02 |
| 81 |
N/A |
UNKNOWN |
| 82 |
710-0825 |
Hex Bolt 1/4-20 x 3.75" Price: $4.73 |
| 83 |
726-0211 |
U Nut 5/16-18 Price: $3.90 |
| 85 |
911-0835 |
CLEVIS PIN This part replaces 711-0835. Price: $11.12 |
| 87 |
719-0329 |
Flail Blade Price: $27.90 |
| 88 |
911-0833B |
Clevis Pin .496" Dia. This part replaces 711-0833B. Price: $10.60 |
| 89 |
710-1254 |
SCREW 3/8-24X2.25 GR8 Price: $6.26 |
| 90 |
736-0217 |
Lock Washer 3/8" Price: $3.86 |
| 91 |
736-0247 |
Flat Washer .406" I.d. x 1.25" Price: $8.82 |
| 92 |
932-0306A |
COMPRESSION SPRING This part replaces 732-0306. Price: $7.69 |
| 93 |
936-0117 |
FLAT WASHER This part replaces 736-0117. Price: $6.20 |
| 94 |
714-0104 |
Internal Cotter Pin Price: $3.90 |
| 95 |
711-1304 |
AXLE SHAFT Not Available Price: |
| 96 |
736-0160 |
Flat Washer Price: $3.90 |
| 97 |
734-1797 |
WHEEL-GRAY 7IN Not Available Price: |
| 98 |
726-0299 |
Push Cap Price: $7.03 |
| 99 |
747-0982 |
LOCK ROD Not Available Price: |
