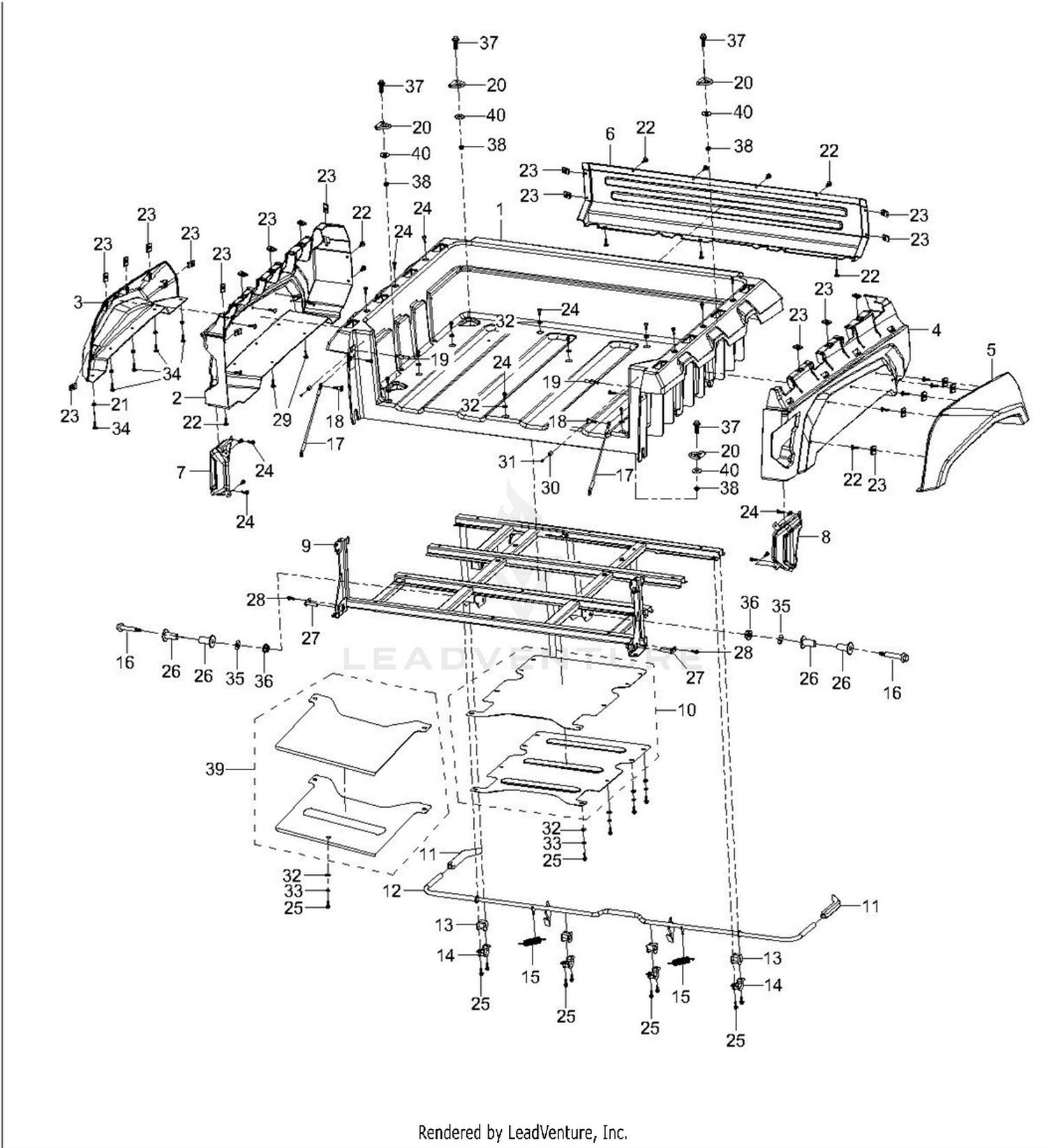

| Ref | Part Number | Description |
|---|
| 1 |
503-01818B |
CARGO BED This part replaces 503-01818A. Price: $866.31 |
| 2 |
503-01949 |
CARGO BED SIDE PANEL LEFT RED Price: $122.02 |
| 2 |
503-01950A |
CARGO BED SIDE PANEL (LH) (YELLOW) Price: $122.02 |
| 2 |
503-01951 |
CARGO BED SIDE PANEL LEFT BLUE Not Available Price: |
| 2 |
503-01952 |
CARGO BED SIDE PANEL LH BLACK Price: $122.02 |
| 2 |
503-01953 |
CARGO BED SIDE PANEL LEFT CAMO Price: $230.41 |
| 3 |
503-01819 |
FENDER - REAR LEFT TOP Price: $52.79 |
| 4 |
503-01954 |
CARGO BED SIDE PANEL RIGHT RED Price: $122.02 |
| 4 |
503-01955A |
CARGO BED SIDE PANEL (RH) (YELLOW) Price: $122.02 |
| 4 |
503-01956 |
CARGO BED SIDE PANEL RH BLUE Not Available Price: |
| 4 |
503-01957 |
CARGO BED SIDE PANEL RH BLACK Not Available Price: |
| 4 |
503-01958 |
CARGO BED SIDE PANEL RH CAMO Price: $230.41 |
| 5 |
503-01820 |
FENDER - REAR RIGHT TOP Price: $54.45 |
| 6 |
503-01821A |
FRONT CARGO BED PANEL Price: $61.58 |
| 7 |
503-01822A |
TAIL BRAKE LIGHT ASM REAR LEFT This part replaces 503-01822. Price: $122.79 |
| 8 |
503-01823A |
TAIL BRAKE LIGHT ASM REAR RIGHT This part replaces 503-01823. Price: $141.44 |
| 9 |
503-01824A |
BED FRAME Price: $351.47 |
| 10 |
503-01825 |
HEAT PROTECTOR - CARGO BED Price: $53.34 |
| 11 |
503-01826 |
RELEASE LEVER GRIP Price: $4.06 |
| 12 |
503-01827 |
CARGO BED RELEASE LEVER KIT Price: $99.01 |
| 13 |
503-01828 |
RELEASE LEVER CUSHION Not Available Price: |
| 14 |
503-01829 |
BRACKET Not Available Price: |
| 15 |
503-00633 |
TENSION SPRING 2X14X40 Price: $6.99 |
| 16 |
503-02219 |
PIN CARGO BED KIT Price: $11.85 |
| 17 |
503-01831 |
CABLE - CARGO BED DOOR Price: $19.88 |
| 18 |
503-01832 |
SHOULDER BOLT M8X15-10X14.5 Price: $4.06 |
| 19 |
503-01833 |
SHOULDER BOLT M8X15-10X10-53 Price: $3.94 |
| 20 |
503-01834A |
CARGO BED HOOK Price: $11.53 |
| 21 |
503-01979 |
HEX FLANG NUT M6 Price: $3.94 |
| 22 |
503-00091 |
SCREW M6X16 Price: $5.48 |
| 23 |
503-01702 |
CLAMP NUT M6X6 Price: $6.24 |
| 24 |
503-00129 |
SOCKET HEX FLAT HEAD BOLT M6X16 Price: $5.36 |
| 25 |
503-00011 |
HEXAGON FLANGE BOLT M6X16 Price: $5.48 |
| 26 |
503-01835 |
BUSHING - PLASTIC 12X18 Price: $4.06 |
| 27 |
503-01836 |
HINGE STRAP Price: $16.47 |
| 28 |
503-01837 |
HEX HEAD FLANGE BOLT M8X12 Not Available Price: |
| 29 |
503-01838 |
SCREW - CROSS HEAD SELF TAPPING Price: $3.67 |
| 30 |
503-01839 |
CARGO DOOR SHOCK ABSORBER Price: $3.43 |
| 31 |
503-01840 |
SCREW - CROSS HEAD SELF TAPPING Not Available Price: |
| 32 |
503-01489 |
FLAT WASHER Price: $3.98 |
| 33 |
503-00879 |
SPRING WASHER Price: $4.26 |
| 34 |
503-01703 |
HEX HEAD CAP SCREW M6X16 Price: $3.71 |
| 35 |
503-00211 |
WASHER Price: $3.90 |
| 36 |
503-01661 |
LOCK NUT M8 Price: $4.06 |
| 37 |
503-02794 |
HEX FLANGE BOLT M10-1.50X30 Price: $2.89 |
| 38 |
503-01375 |
LOCK NUT M10X1.25 Price: $6.13 |
| 39 |
503-02072 |
INSULATION PLATE II Price: $63.02 |
