| Ref | Part Number | Description |
|---|
| 1 |
27-7000 |
DISCONTINUED Price: Call Us |

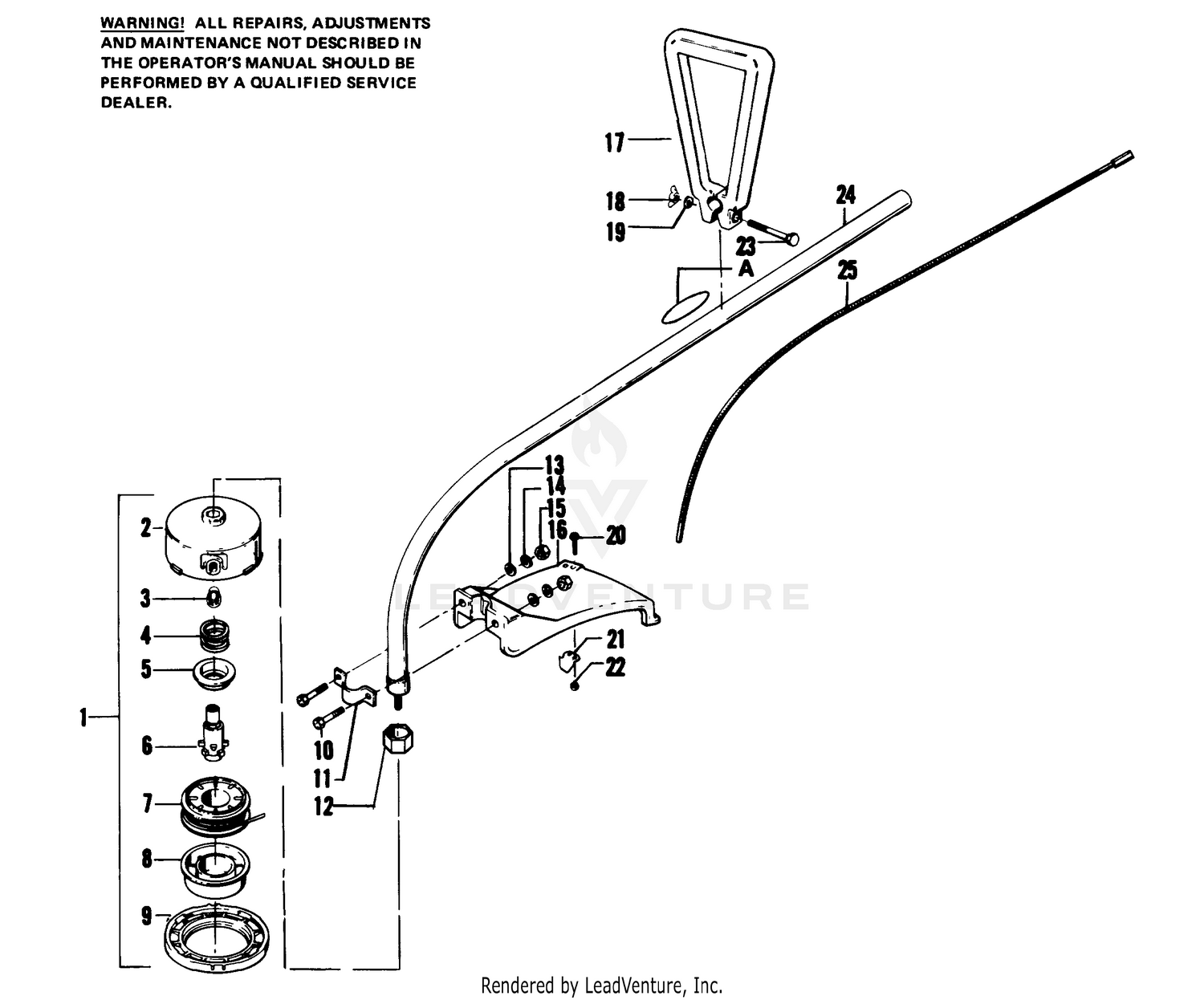

| 1 |
952711547 |
Cutting Head Ass'y. This part replaces 952701574. Price: $19.95 |
| 2 |
27-5330 |
DISCONTINUED Price: Call Us |
| 2 |
530071295 |
Hub This part replaces 530093896. Price: $14.99 |
| 3 |
3217-5 |
NUT-HEX Price: $0.25 |
| 3 |
530093898 |
Line Saver Price: $3.99 |
| 4 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 4 |
530340007 |
Spring This part replaces 530092067. Price: $1.99 |
| 5 |
3217-26 |
NUT-HEX Price: $0.25 |
| 5 |
530328929 |
Cap Spring This part replaces 530092068. Price: $1.99 |
| 6 |
27-5160 |
DISCONTINUED Price: Call Us |
| 6 |
530093897 |
Drive Gear Price: $6.99 |
| 7 |
2412-31 |
CLAMP-BODEN Price: $1.56 |
| 7 |
952701523 |
Spool w/Line Price: $5.95 |
| 8 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 8 |
530401183 |
Tap Button This part replaces 530093387. Price: $2.99 |
| 9 |
3251-1 |
SCREW-PPH Price: $8.48 |
| 9 |
530092133 |
Cover Price: $5.99 |
| 10 |
27-7790 |
REAR SHIELD WA *B Price: $109.13 |
| 10 |
530625567 |
Bolt - Shield Price: $3.33 |
| 11 |
28-8860 |
DISCONTINUED Price: Call Us |
| 11 |
530093653 |
Bracket - Shield (1/4-20 x 1-3/4) Price: $1.99 |
| 12 |
321-5 |
SCREW-HH Price: $0.22 |
| 12 |
530093716 |
Dust Cup Price: $6.99 |
| 13 |
28-3280 |
DISCONTINUED Price: Call Us |
| 13 |
530015209 |
Washer - Flat Price: $1.99 |
| 14 |
12-3270 |
SCREW Price: $3.09 |
| 14 |
530001642 |
Washer - Lock 1/4 Price: $1.99 |
| 15 |
27-6960 |
EXHAUST PIPE Price: $117.94 |
| 15 |
530015515 |
Nut - Shield 1/4-20 Price: $1.99 |
| 16 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 16 |
530093583 |
Shield Price: $3.33 |
| 17 |
3217-6 |
NUT-HEX Price: $1.19 |
| 17 |
530091412 |
Assist Handle Price: $3.33 |
| 18 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 18 |
530091373 |
Wing Nut - 1/4-20 Price: $1.99 |
| 19 |
530092062 |
Washer - 1/4 Flat Price: $1.99 |
| 19 |
63-8440 |
DECAL-SURFACE, HOT This part replaces 28-1530. Price: $6.82 |
| 20 |
3290-163 |
Locknut Price: Call Us |
| 20 |
530015337 |
Screw - Line Limiter (10-24x1) Price: $1.99 |
| 21 |
27-7780 |
DISCONTINUE PREC HUSKY Price: Call Us |
| 21 |
530093853 |
Limiter - Line Price: $3.33 |
| 22 |
29-5440 |
DISCONTINUED Price: Call Us |
| 22 |
530015064 |
Nut - Line Limiter Price: $0.12 |
| 23 |
32104-114 |
SCREW THD 1/4 20 5/8 Price: $5.17 |
| 23 |
530091372 |
Hex Bolt - 1/4-20 x 2-1/4 Price: $3.33 |
| 24 |
2412-37 |
MUFFLER CLAMP Price: $4.21 |
| 24 |
530093902 |
Drive Shaft Ass'y (Inc. # 12) Price: $3.33 |
| 25 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 25 |
530093575 |
Flexible Shaft Ass'y Price: $27.99 |
| 26 |
321-2 |
SCREW-HH Price: $2.79 |
| 27 |
27-6990 |
DISCONTINUED Price: Call Us |
| 28 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 30 |
323-11 |
SCREW-HH Price: $1.08 |
| 31 |
27-6610 |
Muffler Price: Call Us |
| 32 |
27-7760 |
LH SIDE HT SHIELD *B Price: $84.29 |
| 33 |
322-2 |
SCREW-HH Price: $0.69 |
| 34 |
2412-55 |
DISCONTINUED Price: Call Us |
| 35 |
27-7750 |
DISCONTINUED Price: Call Us |
| 36 |
27-6980 |
DISCONTINUED Price: Call Us |
| 37 |
324-2 |
SCREW-HH Price: $1.56 |
| 38 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 39 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 40 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 41 |
18-8000 |
RUBBER MOUNT Price: $97.89 |
| 42 |
324-3 |
DISCONTINUED Price: Call Us |
| 43 |
27-7020 |
REAR ENGINE MT *B Price: $91.42 |
| 44 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 45 |
322-3 |
SCREW-HH Price: $0.79 |
| 46 |
28-1140 |
WASHER Price: $4.89 |
| 47 |
3217-7 |
NUT-HEX Price: $0.28 |
| 48 |
323-8 |
SCREW-HH Price: $1.20 |
| 49 |
3219-5 |
NUT-HEX Price: $1.22 |
| 50 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 51 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 52 |
27-5050 |
RUBBER MOUNT Price: $177.84 |
| 53 |
27-4640 |
DISCONTINUED Price: Call Us |
| 54 |
323-7 |
SCREW-HH Price: $0.65 |
| 55 |
27-3830 |
ENGINE PULLEY *BO Price: $271.24 |
| 56 |
33-2020 |
DISCONTINUED Price: Call Us |
| 57 |
115-4523 |
COUPLING-RUBBER This part replaces 27-6560. Price: $52.81 |
| 58 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 59 |
3210-9 |
SCREW-HH Price: $0.61 |
| 60 |
46-6370 |
DISCONTINUED This part replaces 27-3780. Price: Call Us |
| 61 |
32152-5 |
NUT-HEX Price: $0.54 |
| 62 |
2412-56 |
DISCONTINUED Price: Call Us |
| 63 |
108-3831 |
FILTER-FUEL This part replaces 18-1520. Price: $10.09 |
| 64 |
125-9249 |
SPACER-COUPLER, RUBBER This part replaces 27-6600. Price: $2.15 |
| 65 |
3274-50 |
SCREW-HSH Price: $0.88 |
| 66 |
3210-5 |
SCREW-HH Price: $0.54 |
| 67 |
221-585 |
Engine Briggs Stratton (Model No. 326437) Price: Call Us |
| 68 |
32140-102 |
DISCONTINUED Price: Call Us |
| 69 |
110-4105 |
HOSE-FUEL This part replaces 27-5360. Price: $11.71 |
| 70 |
321-4 |
SCREW-HH Price: $0.99 |
| 71 |
110-3256 |
HOSE-FUEL This part replaces 27-5350. Price: $15.38 |
| 72 |
353-574 |
DISCONTINUED Price: Call Us |
| 73 |
110-4104 |
HOSE-FUEL This part replaces 27-5340. Price: $8.95 |
| 74 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
