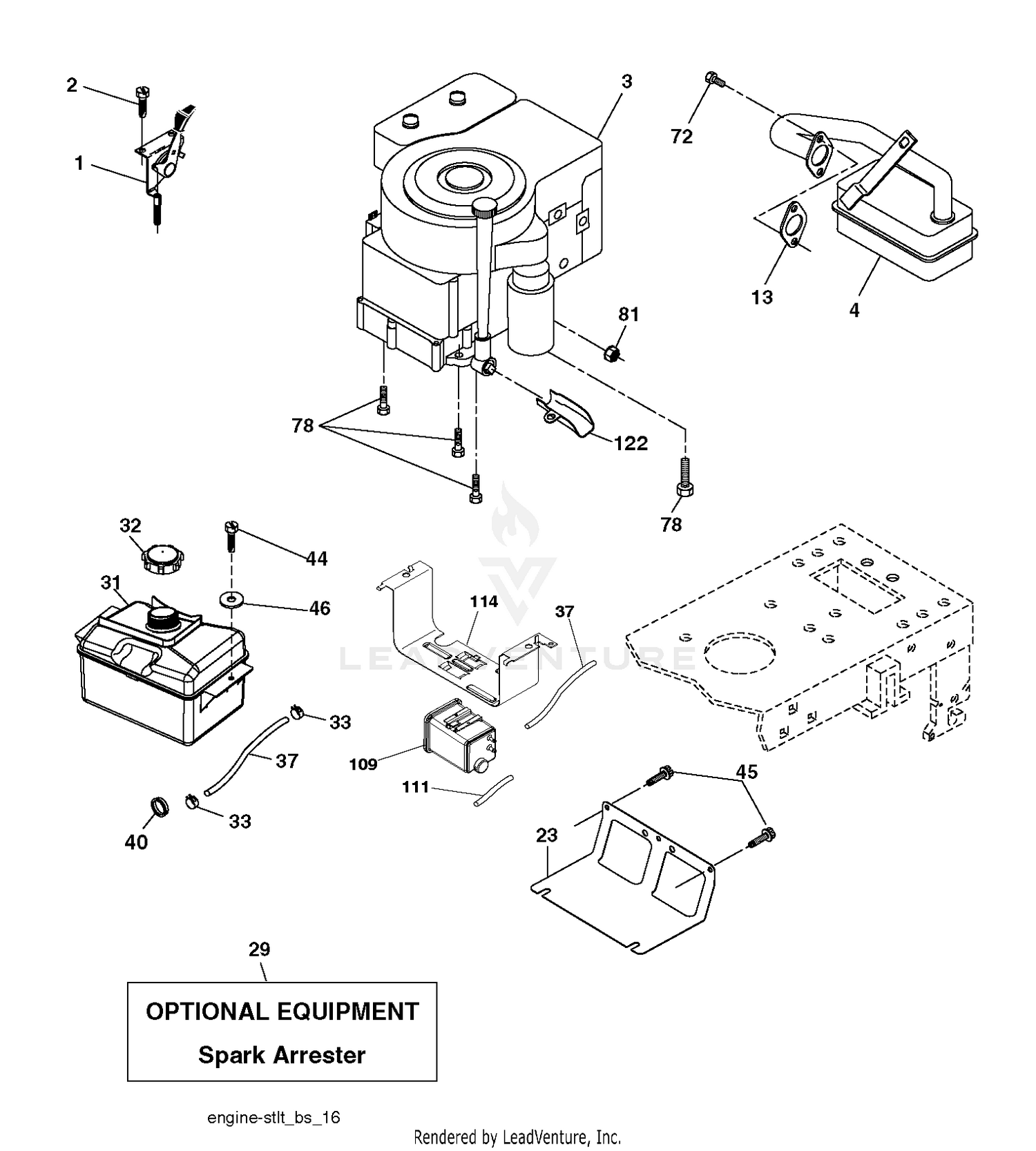

| Ref | Part Number | Description |
|---|
| 1 |
532170551 |
CONTROL.THROTTLE/CHOKE.BLACK Price: $22.99 |
| 1B |
630970 |
SHAFT & LEV Price: Call Us |
| 2 |
237-42 |
O-RING Price: $2.78 |
| 2 |
631767 |
SPRING This part replaces 632016. Price: $1.25 |
| 3 |
22-8330 |
PLUG Price: $64.59 |
| 3 |
631036 |
SHUTTER Price: $1.20 |
| 4 |
22-8340 |
SPRING Price: $19.09 |
| 4 |
532137352 |
MUFFLER.LT.BRIGGS.14HP.IC/OHV Price: $29.99 |
| 4 |
650506 |
SCREW Price: $0.87 |
| 5 |
22-8350 |
BALL Price: $12.28 |
| 6 |
22-8360 |
PIN Price: $43.02 |
| 7 |
22-8370 |
SEAT-VALVE Price: $88.05 |
| 7A |
631047 |
SHAFT & LEV Price: Call Us |
| 8 |
22-8380 |
RETAINER Price: $17.86 |
| 9 |
22-8490 |
RING-SNAP Price: $6.51 |
| 9 |
630736 |
SHUTTER Price: $2.19 |
| 10 |
22-8480 |
RING-SNAP Price: $49.87 |
| 10 |
631562 |
ADJ SCREW Price: $3.74 |
| 11 |
22-8390 |
RETAINER Price: $56.56 |
| 11 |
630738 |
SPRING Price: $1.25 |
| 12 |
22-8400 |
SPACER Price: $42.41 |
| 12 |
630739 |
WASHER Price: $1.25 |
| 13 |
22-8410 |
SPRING Price: $17.61 |
| 13 |
532272293 |
Gasket Eng 1 313 Id Tin Plated (AYP part number) This part replaces 532165291. Price: $7.99 |
| 13 |
630740 |
O RING Price: $1.49 |
| 14 |
22-8420 |
SPOOL Price: $437.22 |
| 15 |
630748 |
WELCH PLUG Price: $1.17 |
| 17 |
632554 |
WELCH PLUG This part replaces 630746. Price: $1.17 |
| 18 |
631049 |
SPRING Price: $1.20 |
| 19 |
630742 |
GASKET Price: $1.25 |
| 20 |
630932A |
INLET NEEDLE Price: $4.39 |
| 21 |
630750A |
GASKET This part replaces 630750. Price: $3.00 |
| 22 |
630978 |
DIAPHRAGM Price: $4.49 |
| 23 |
532169837 |
SHIELD.BROWNING.DBR.GUARD Price: $7.99 |
| 23 |
630751 |
COVER Price: $8.60 |
| 24 |
650545 |
SCREW Price: $1.20 |
| 26A |
632164 |
FUEL FITTING This part replaces 631803. Price: $5.95 |
| 27 |
631048 |
SPRING Price: Call Us |
| 28 |
650569 |
SCREW Price: Call Us |
| 29 |
532137180 |
KIT.SPARK ARRESTOR(392390 B&S) Price: $129.99 |
| 31 |
532430646 |
TANK ASM.FRONT.CARB.1.5GA.E10 This part replaces 532420721. Price: $279.99 |
| 32 |
532430219 |
CAP ASM.FUEL.2.25"FRT.CARB Price: $39.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
532401137 |
LINE.FUEL.20"FRONT.EMI Price: $9.99 |
| 40 |
532124028 |
GROMMET T Price: $3.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $2.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 46 |
819091416 |
WASHER Price: $3.99 |
| 72 |
532192334 |
SCREW.SOCKET HD.5/16-1 Price: $2.99 |
| 78 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 81 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 109 |
532414114 |
CANNISTER, CARBON Price: $32.99 |
| 111 |
532448562 |
KIT.PURGE.LINE.55" This part replaces 532414119. Price: $14.99 |
| 114 |
532414116 |
CRADLE.CANISTER.CARBON Price: $19.99 |
