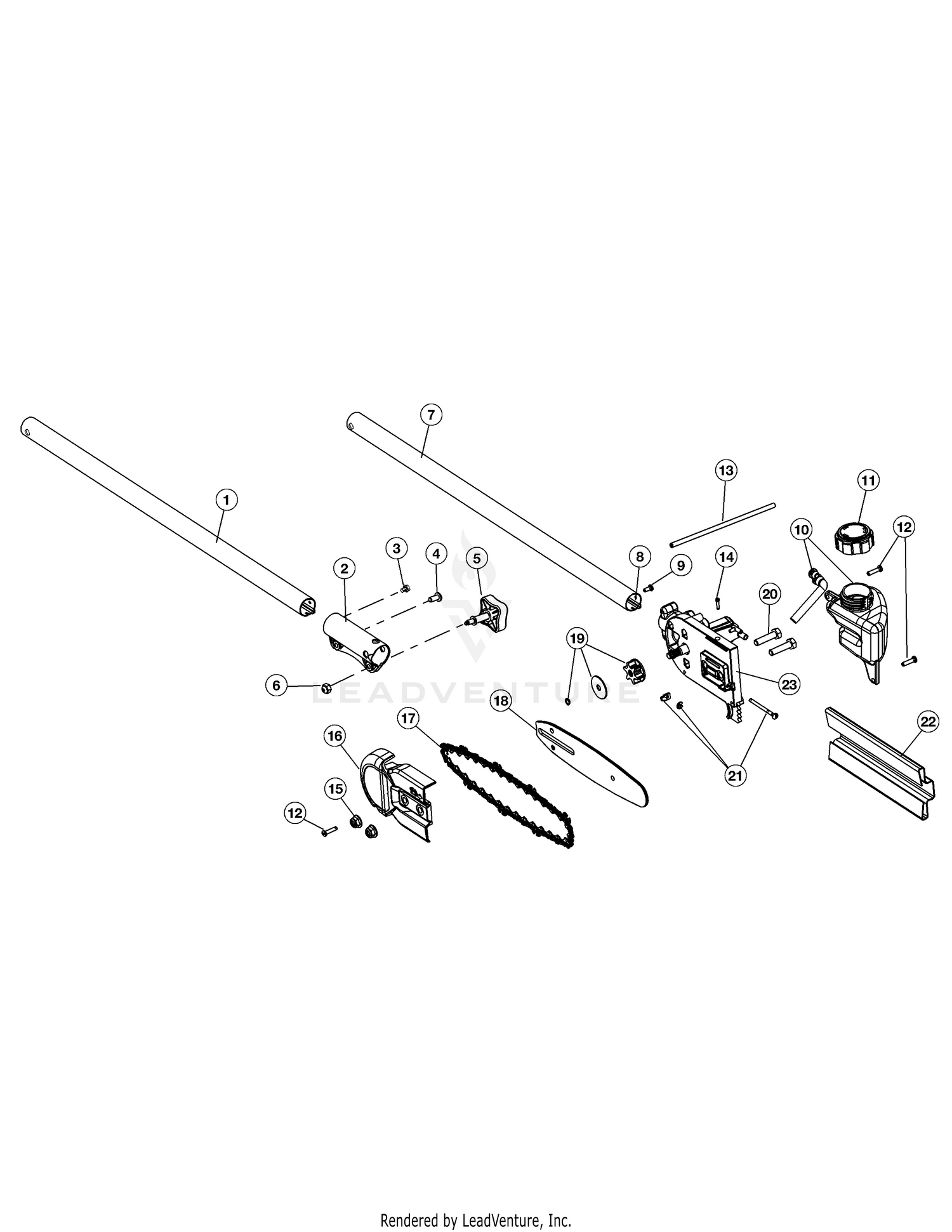

Pole Saw Assembly
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 753-04352 | Extension Boom Price: $71.07 |
| 2 | 753-1190 | Split Boom Coupler (Incl. 3-6) Price: $20.56 |
| 3 | 791-182057 | Screw Price: $3.93 |
| 4 | 791-181617 | Bolt Price: $4.59 |
| 5 | 697-00661-9 | CLICK LINK CLAMP Not Available This part replaces 791-181981. Price: |
| 6 | 712-04018A | Knob Retaining Nut Price: $3.78 |
| 7 | 753-05724 | Drive Shaft Housing (Incl. 8) Price: $35.51 |
| 8 | 791-181166 | Flexible Drive Shaft Price: $24.86 |
| 9 | 710-0599 | SCREW 1/4-20 X.500 This part replaces 791-180288. Price: $3.86 |
| 10 | 753-05586 | Oil Tank Assembly Price: $27.18 |
| 11 | 753-05587 | Fuel Cap Assembly Price: $7.70 |
| 12 | 791-181345 | Screw Price: $3.75 |
| 13 | 753-05588 | Oil Line Price: $8.53 |
| 14 | 710-04696 | Screw Price: $3.38 |
| 15 | 712-04063 | Nut Price: $3.56 |
| 16 | 753-05593 | Chain Guard Price: $11.83 |
| 17 | 753-05592 | Chain Price: $33.49 |
| 18 | 753-05594 | Bar Price: $48.18 |
| 19 | 753-05595 | Sprocket Assembly Price: $10.05 |
| 20 | 710-0528 | Bolt Price: $3.90 |
| 21 | 753-05597 | Chain Tension Hardware Assembly Price: $9.09 |
| 23 | 753-05599 | Gearbox Assembly (Incl. 14 & 19) Price: $93.20 |
