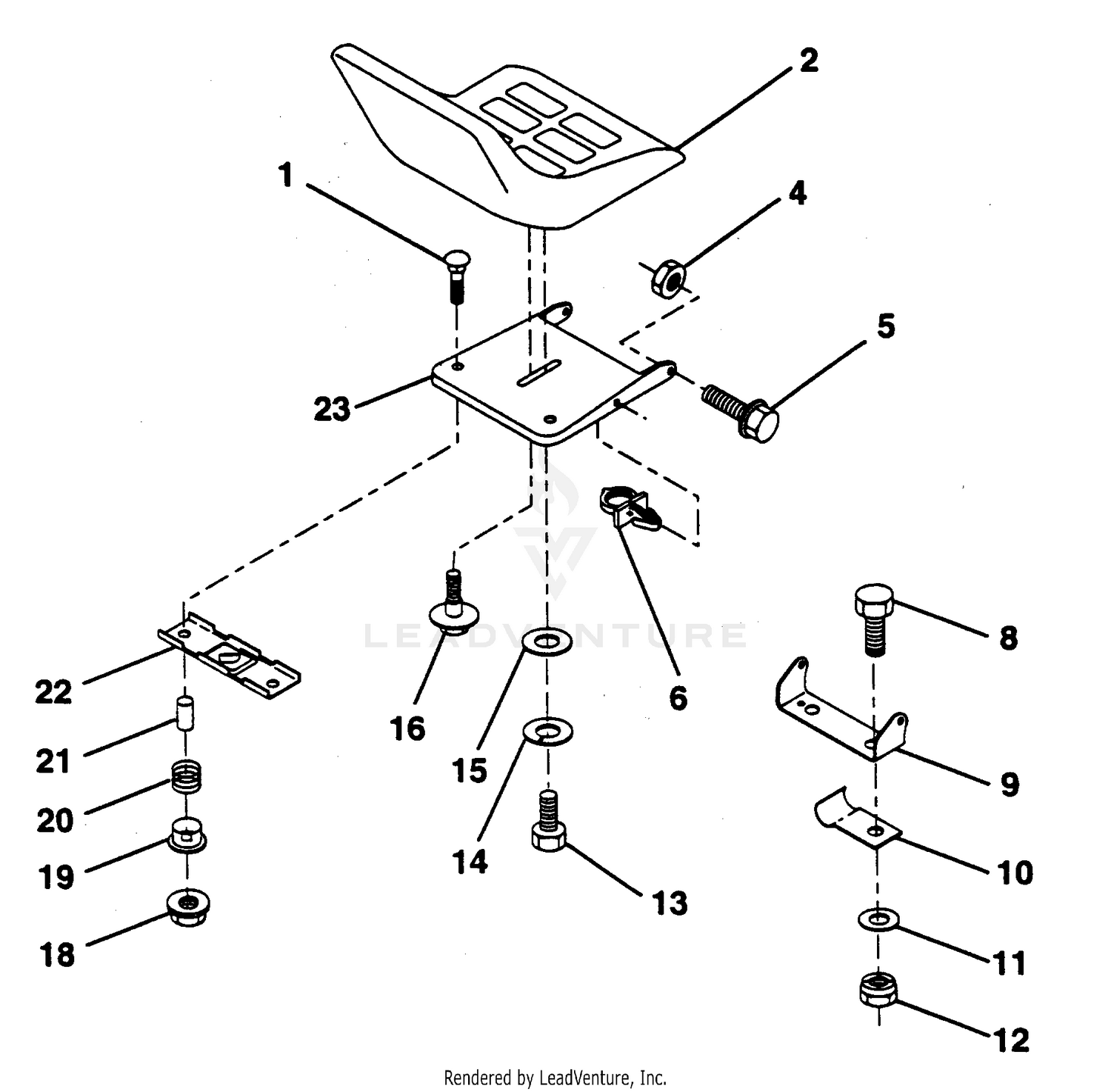

| Ref | Part Number | Description |
|---|
| 1 |
872050411 |
Bolt, Carriage 1/4-20 x 1-3/8 Price: $2.99 |
| 2 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532127427. Price: $142.99 |
| 4 |
873800500 |
Locknut, Hex w/Ins 5/16-18 Price: $2.69 |
| 5 |
532139888 |
Bolt, Shoulder 5/16-18 UNC Price: $2.99 |
| 6 |
532140407 |
Clip, Insulated Price: $3.99 |
| 8 |
874780616 |
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 This part replaces 874760616. Price: $3.99 |
| 9 |
532140551 |
Bracket, Pivot Seat Price: $3.99 |
| 10 |
107-0132 |
ADJUSTABLE BOLT ASM Price: $4.70 |
| 10 |
532126471 |
Clip, Insulated Price: $2.99 |
| 11 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 12 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 13 |
871110814 |
BOLT.HEX.BLACK This part replaces 874780814. Price: $3.99 |
| 14 |
810040800 |
Washer Lock Hvy. Hlicl Spring 1/2 Price: $3.99 |
| 15 |
819171912 |
Washer, 17/32 x 1-3/16 x 12 Ga. Price: $3.99 |
| 16 |
532127018 |
Bolt, Shoulder Price: $3.99 |
| 18 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 532123976. Price: $2.69 |
| 19 |
532121248 |
Bushing, Snap Price: $3.99 |
| 20 |
532121250 |
Spring, Compression Price: $3.99 |
| 20 |
98-7653 |
NUT Price: $7.94 |
| 21 |
532134300 |
Spacer, Split 28 Id. x .88 Lg. Price: $3.99 |
| 22 |
532174648 |
Bracket Mounting Switch This part replaces 532121246. Price: $4.99 |
| 30 |
98-7654 |
GASKET Price: $8.84 |
| 40 |
98-7655 |
NUT-CAP Price: $4.90 |
| 60 |
98-7657 |
LEVER-CONTROL, SPEED Price: $73.98 |
| 70 |
98-7658 |
KEY-FEATHER Price: $0.95 |
| 80 |
107-0103 |
O-RING Price: $1.58 |
| 90 |
98-7660 |
WASHER-PLAIN This part replaces 98-7698. Price: $0.28 |
| 100 |
98-7661 |
NUT Price: $0.24 |
| 110 |
98-7662 |
COLLAR Price: $8.01 |
| 120 |
98-7663 |
PLATE-CONTROL, SPEED Price: $40.63 |
| 130 |
112-8449 |
GASKET This part replaces 98-7664. Price: $3.70 |
| 140 |
98-7568 |
BOLT Price: $0.84 |
| 150 |
98-7571 |
STUD Price: $2.00 |
| 160 |
98-7699 |
WASHER-SPRING Price: $0.44 |
