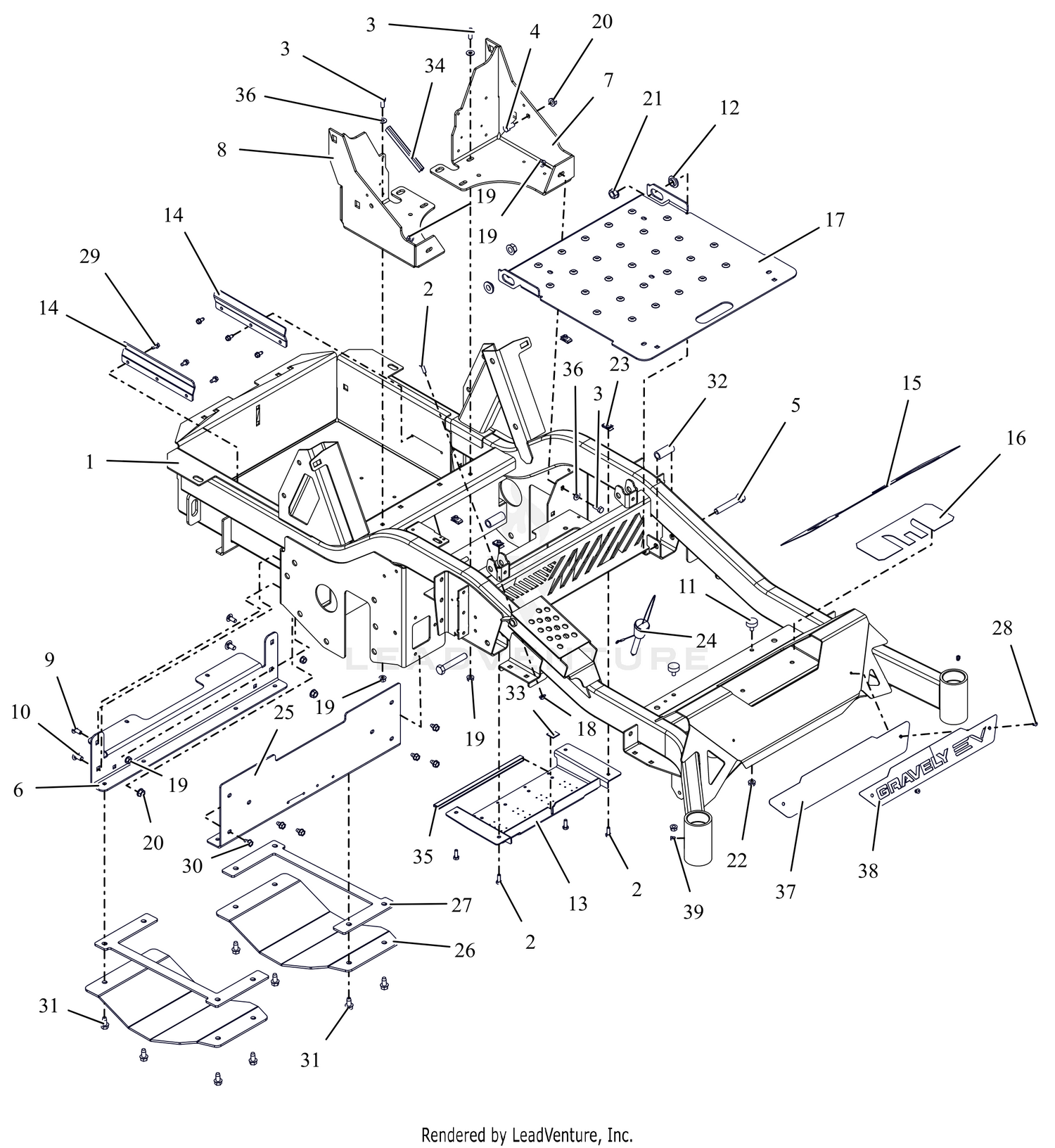

| Ref | Part Number | Description |
|---|
| 1 |
59701200 |
KIT,EV FRAME(SM)W/DECALS-G Price: $1,455.95 |
| 2 |
05901716 |
BLT- HEX .25-20X.75 G5 ZCC Price: $0.95 |
| 3 |
05901704 |
BLT-HEX .31-18X.75 G5 ZCC Price: $1.45 |
| 4 |
05901702 |
BLT,HEX .38-16X.75 G5 ZCC Price: $1.45 |
| 5 |
05901737 |
BLT, HEX .50-13X3.00 G5 ZCC Price: $4.45 |
| 6 |
09192653 |
BRKT, SKID PLATE MTG. (RED) Price: $30.95 |
| 7 |
09179153 |
BRKT, SUPPORT ROPS -LH (RED) Price: $91.95 |
| 8 |
09179053 |
BRKT, SUPPORT ROPS-RH (RED) Price: $91.95 |
| 9 |
06200309 |
BLT, RHSSN.31-18X.750 G5 ZCC Price: $2.45 |
| 10 |
06200336 |
BLT, RHSSN .38-16X.75 G5 ZCC Price: $2.45 |
| 11 |
07533600 |
BUMPER, RUBBER Price: $10.95 |
| 12 |
03989100 |
BSHG-FLG .515X.750X.310X1.120 Price: $3.45 |
| 13 |
09192553 |
COVER, BOTTOM ACCESS -OPEN (RED) Price: $40.95 |
| 14 |
09439653 |
DEFLECTOR, BATTERY -EV (RED) Price: $16.45 |
| 15 |
05104800 |
GRIP, FRONT Price: $16.45 |
| 16 |
07801139 |
GRIP, TAPE FRONT Price: $9.45 |
| 17 |
59113500 |
KIT,ACCESS PANEL W/DECALS-RED Price: $92.95 |
| 18 |
06500821 |
NUT-LK-CTR-FLG .25-20 ZC120 Price: $0.45 |
| 19 |
06500840 |
NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
| 20 |
06500901 |
NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95 |
| 21 |
06500902 |
NUT-LK-CTR-FLG .500-13 GG ZCC Price: $0.95 |
| 22 |
06500815 |
NUT,SPNLK-FLG .31-18 G5 ZCC Price: $1.45 |
| 23 |
07009000 |
NUT-RTNR .25-20X.56 Price: $0.95 |
| 24 |
06800218 |
PIN- MAGNETIC .50X2.70 Price: $21.95 |
| 25 |
09192453 |
PLATE, FRONT FRAME (RED) Price: $40.95 |
| 26 |
09180051 |
PLATE, SKID (BLACK) Price: $45.95 |
| 27 |
09180151 |
PLATE, SKID TENSION (BLACK) Price: $14.95 |
| 28 |
06800120 |
RIVET, .1875 AL/AL .126-.250 Price: $1.45 |
| 29 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC Price: $0.45 |
| 30 |
07400124 |
SCR,TAP .312-18X.50 HWH TR ZCC Price: $1.45 |
| 31 |
07400129 |
SCR,TAP .375-16X.75 HWH TR ZCC Price: $1.45 |
| 32 |
05501319 |
SPACER, .515X.75X1.83 Price: $4.45 |
| 33 |
07525100 |
STOP Price: $1.95 |
| 34 |
00918200 |
STRIP, COWL Price: $5.45 |
| 35 |
00918200 |
STRIP, COWL Price: $5.45 |
| 36 |
06401124 |
WSHR- FLT .312X.734X.065 ZCC Price: $0.95 |
| 37 |
09444551 |
PLATE, BACK - GRAVELY (BLACK) Price: $20.45 |
| 38 |
09467553 |
PLATE, LOGO - GRAVELY EV (RED) Price: $30.95 |
