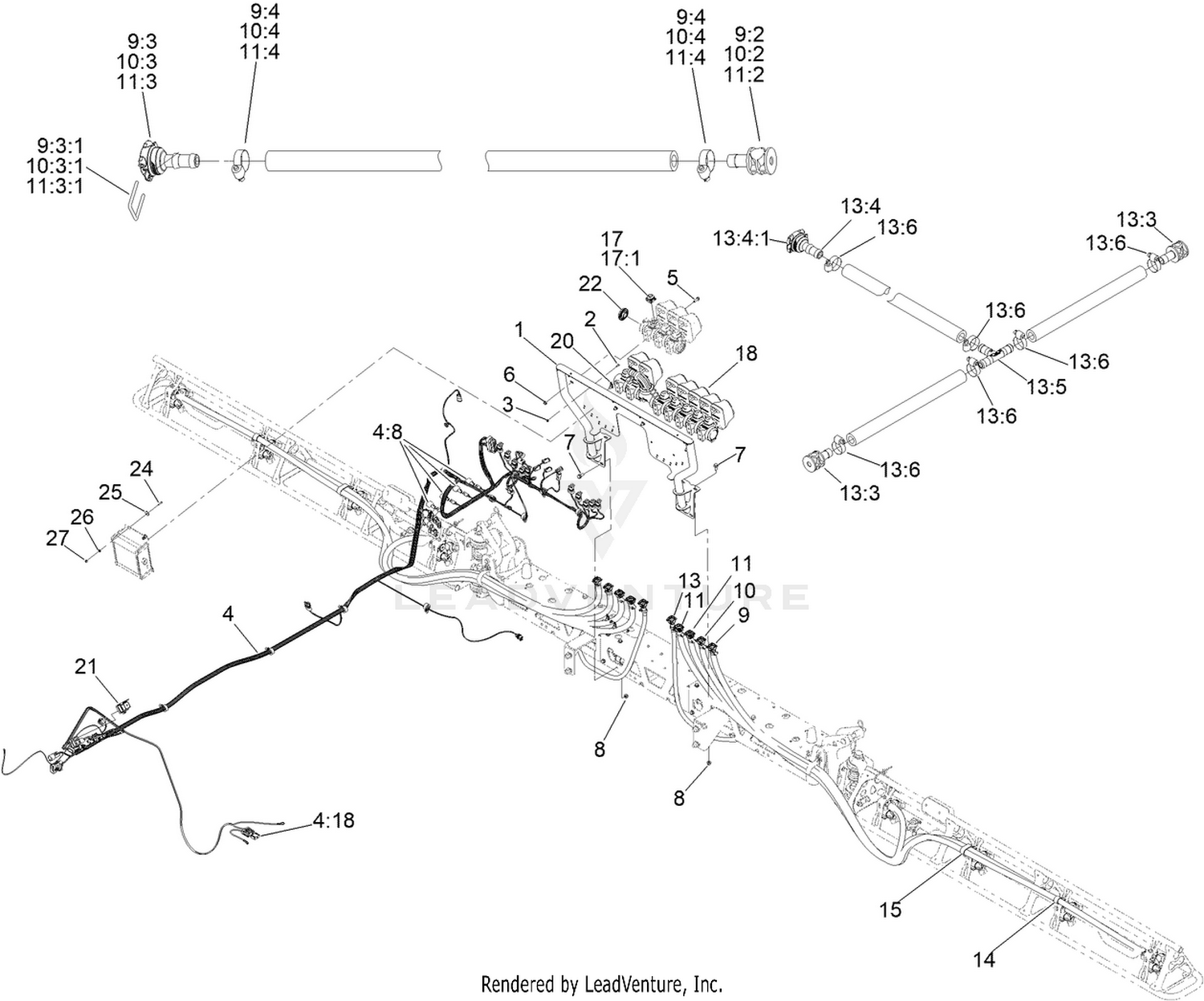

Wire Harness and Section Valve Assembly
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 131-3753-03 | MOUNT-VALVE, GPS Price: $413.77 |
| 2 | 60-6500 | SCREW-HH Price: $0.54 |
| 3 | 140-3749 | NUT-LOCK ROHS Price: $0.22 |
| 4 | 122-0824 | HARNESS-WIRE Price: $1,629.05 |
| 5 | 3234-4 | SCREW-HHF Price: $0.50 |
| 6 | 104-7201 | NUT-HF Price: $0.69 |
| 7 | 3234-47 | SCREW-HHF Price: $1.79 |
| 8 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 9 | 131-7288 | HOSE NOZZLE ASM Price: $110.07 |
| 10 | 131-7289 | HOSE NOZZLE ASM Price: $112.06 |
| 11 | 131-7290 | HOSE NOZZLE ASM Price: $90.05 |
| 13 | 131-7292 | HOSE NOZZLE ASM Price: $126.36 |
| 14 | 2412-39 | CLAMP-R Price: $1.70 |
| 15 | 2412-137 | CLAMP-R, DOUBLE Price: $5.08 |
| 17 | 127-9811 | FITTING-CAP, FEMALE Price: $22.03 |
| 20 | 32180-161 | CLIP-CONNECTOR Price: $3.19 |
| 21 | 99-7430 | RELAY-MINI Price: $22.99 |
| 22 | 127-9815 | FITTING-CAP Price: $6.53 |
| 24 | 147-4691 | SCREW-PFH Price: $4.55 |
| 25 | 140-7369 | MAGNET Price: $35.87 |
| 26 | 3256-21 | WASHER-FLAT Price: $0.25 |
