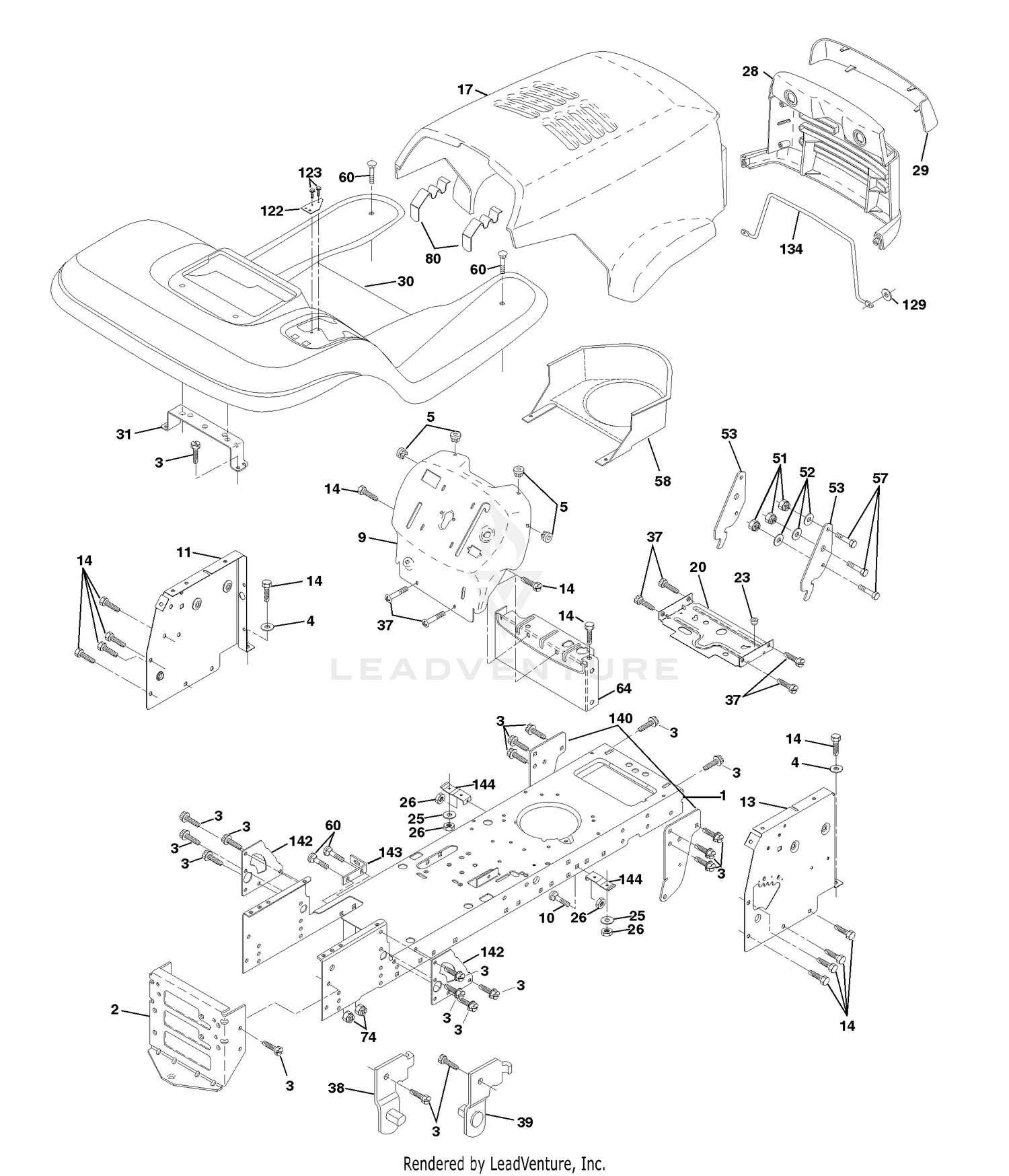

Chassis And Enclosures

Chassis And Enclosures

Parts (77)

RefPart NumberDescription
1 5-0743-03 SPRING-MOWER This part replaces 5-0743. Price: $188.53
1 532160525 CHASSIS KIT This part replaces 532153871. Price: $88.41
2 532145009 KIT.DRAWBAR.SERVICE This part replaces 532140356. Price: $44.99
2 62-7240 DISCONTINUED Price: Call Us
3 534200501 BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99
4 819131216 Washer 13/32 x 3/4 x 16 Ga. Price: $2.99
5 3272-11 PIN-COTTER Price: $0.99
5 532155272 BUMPER.RUBBER.HOOD Price: $3.99
6 93-6912 DISCONTINUED Price: Call Us
7 283-75 PIN-CLEVIS Price: $1.56
9 3272-10 PIN-COTTER Price: $0.25
9 532161916 DASH This part replaces 532157261. Price: $19.39
10 596728201 Bolts This part replaces 872140608. Price: $3.99
10 92-1818-01 ARM-SPRING, TENSION This part replaces 92-1818. Price: $13.39
11 323-9 SCREW-HH Price: $1.29
11 532174996 PANEL.DASH.LH.LTX This part replaces 532155927. Price: $9.99
12 32144-109 SCREW-THD Price: $1.29
13 32144-14 SCREW-HWHTF Price: $4.29
13 532172107 DASH PANEL ASM. This part replaces 532157262. Price: $9.99
14 596564001 Bolts This part replaces 817490608. Price: $2.99
14 93-6893 PIN-PIVOT, RAM Price: $49.13
15 92-1812 SHAFT-PIVOT, LIFT Price: $51.90
17 3296-39 NUT-LOCK, NI Price: $2.29
17 532156051 HOOD - LT/YT Price: $549.99
18 302-60 FITTING-GREASE Price: $2.26
19 94-5009 HOSE ASM Price: $102.32
20 532180679 PLATE MTG.BATTERY/FUEL TANK This part replaces 532156437. Price: $9.99
20 94-5008 HOSE ASM Price: $102.26
21 340-103 FITTING-HYD, 45 DEG Price: $36.92
22 340-92 FITTING-STRAIGHT Price: $12.29
23 532124028 BUSHING.SNAP.NYL.BLK. Price: $4.99
23 93-6869 HYD CYLINDER ASM Price: $638.61
24 125-5196 BUSHING This part replaces 3-0348. Price: $6.00
25 596134901 GSPH This part replaces 819131312. Price: $2.99
26 596322601 Nuts This part replaces 873800600. Price: $2.99
26 93-6696 DECAL-WARNING Price: $14.78
28 3256-26 WASHER-FLAT Price: $0.39
28 532156880 GRILLE.LT.P/L HUSQVARNA.SERVIC This part replaces 532149776. Price: $256.99
29 532149777 LENS LT/PL HUSQVARNA Price: $24.99
29 93-6926 PIN-CLEVIS Price: $33.72
30 322-4 SCREW-HH Price: $0.35
30 532192813 FENDER W/OUT CUP HOLDER This part replaces 532156489. Price: $125.54
31 3253-4 WASHER-LOCK Price: $0.25
31 532139976 BRACKET.SUPPORT.FENDER Price: $14.99
32 322-26 SCREW-HH Price: $2.36
33 3253-4 WASHER-LOCK Price: $0.25
34 3256-57 WASHER-FLAT Price: $0.41
35 94-3635 CENTER LIFT ARM ASM Price: $280.94
36 256-115 WASHER-THRUST Price: $1.90
37 596030701 Screws This part replaces 817490508. Price: $2.99
37 99-2338 SHAFT-PIVOT Price: $101.09
38 3256-6 WASHER-FLAT Price: $0.34
38 532139886 BRACKET LH PIVOT Price: $6.99
39 3234-32 SCREW-HHF Price: $8.48
39 532139887 BRACKET RH PIVOT Price: $6.99
40 237-78 O-RING Price: $3.85
41 237-21 O-RING Price: $0.70
42 98-3445 SPACER Price: $6.02
43 98-3446 PLATE-REINFORCEMENT Price: $11.38
44 323-4 SCREW-HH Price: $1.02
51 582478602 NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99
52 596135301 Washers This part replaces 819091416. Price: $2.99
53 532150067 BRACKET PNT PICK OFF LT/PL Price: $1.64
57 596230901 Screws This part replaces 874780412. Price: $2.99
58 532150127 AIR DUCT P/L/LT Price: $13.99
60 872140606 Bolt Rdhd Sqnk 3/8-16unc x 3/4 Price: $4.99
64 532154798 DASH LOWER Price: $17.99
74 596322601 Nuts This part replaces 873680600. Price: $2.99
80 532155854 LATCH HOOD Price: $3.99
122 532157301 BRACKET SHIFT STLT Price: $7.99
123 532152927 SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99
129 596582301 Washers This part replaces 819091016. Price: $2.99
134 532150132 ROD SUPPORT HOOD LT/PL HUSQ Price: $7.99
140 532158418 BRACKET SUSPENSION FRONT Price: $7.99
142 532175702 PLATE REINFORCEMENT This part replaces 532156095. Price: $7.99
143 532186689 BRACKET, SWAYBAR CHASSIS This part replaces 532154966. Price: $5.99
144 532175582 BRKT, FOOT REST This part replaces 532154207. Price: $4.99
