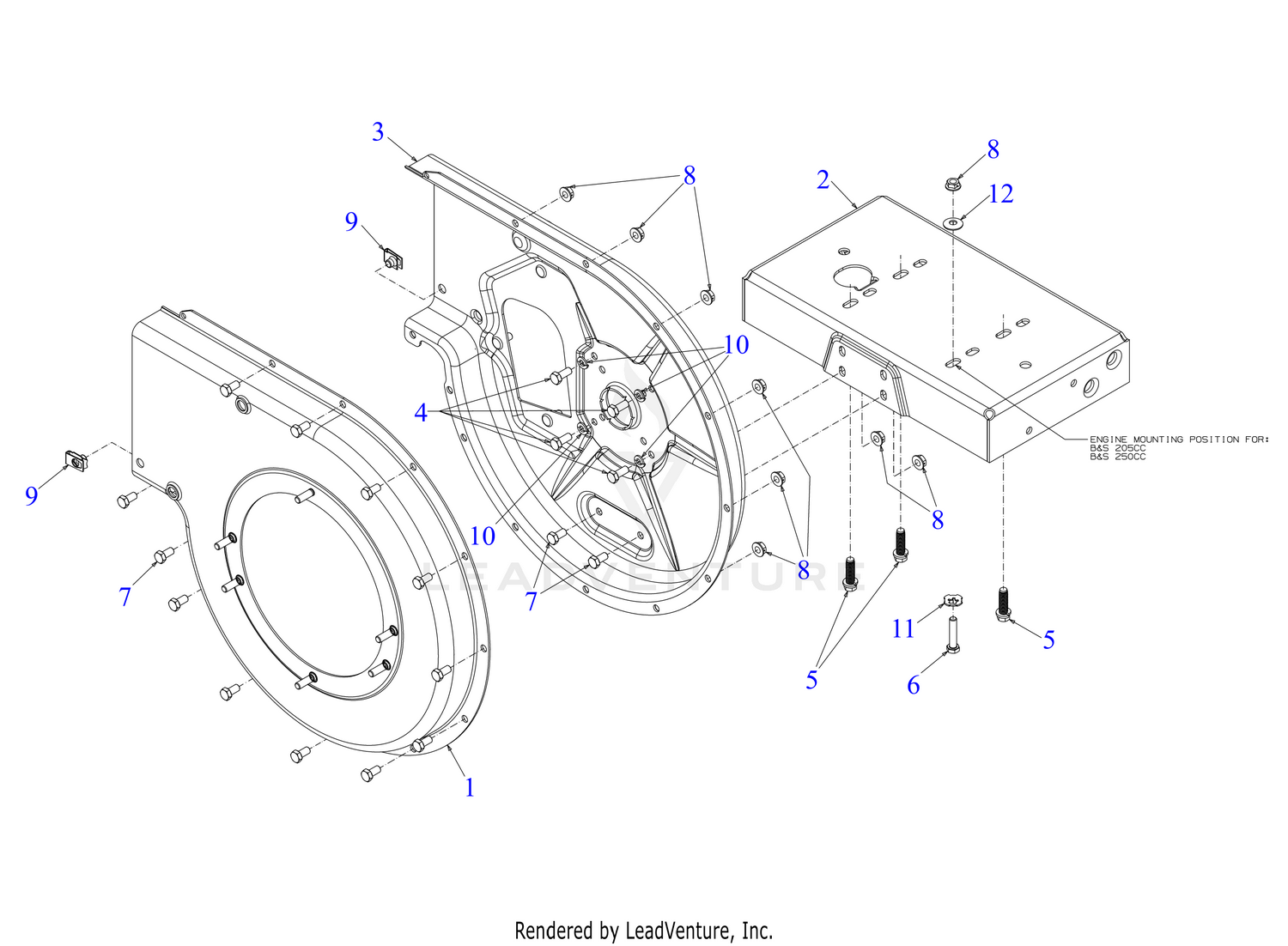

Frame Assembly
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 710-0157 | HEX SCREW 5/16-24 x .75 Price: $3.90 |
| 5 | 710-0502A | SCREW 3/8-16 x 1.250 Price: $5.71 |
| 6 | 710-0805A | SCREW 5/16-18 x 1.5 LG Price: $3.75 |
| 7 | 710-3025 | SCREW 5/16-18X .625 GR5 Price: $3.64 |
| 8 | 712-3004A | HEX FLANGE NUT Price: $3.49 |
| 9 | 726-0211 | U-Nut 5/16-18 Thd. This part replaces 926-0211. Price: $3.90 |
| 10 | 936-0119 | LOCK WASHER 5/16 Price: $4.29 |
| 11 | 736-0170 | SPECIAL WASHER Not Available This part replaces 936-0170. Price: |
