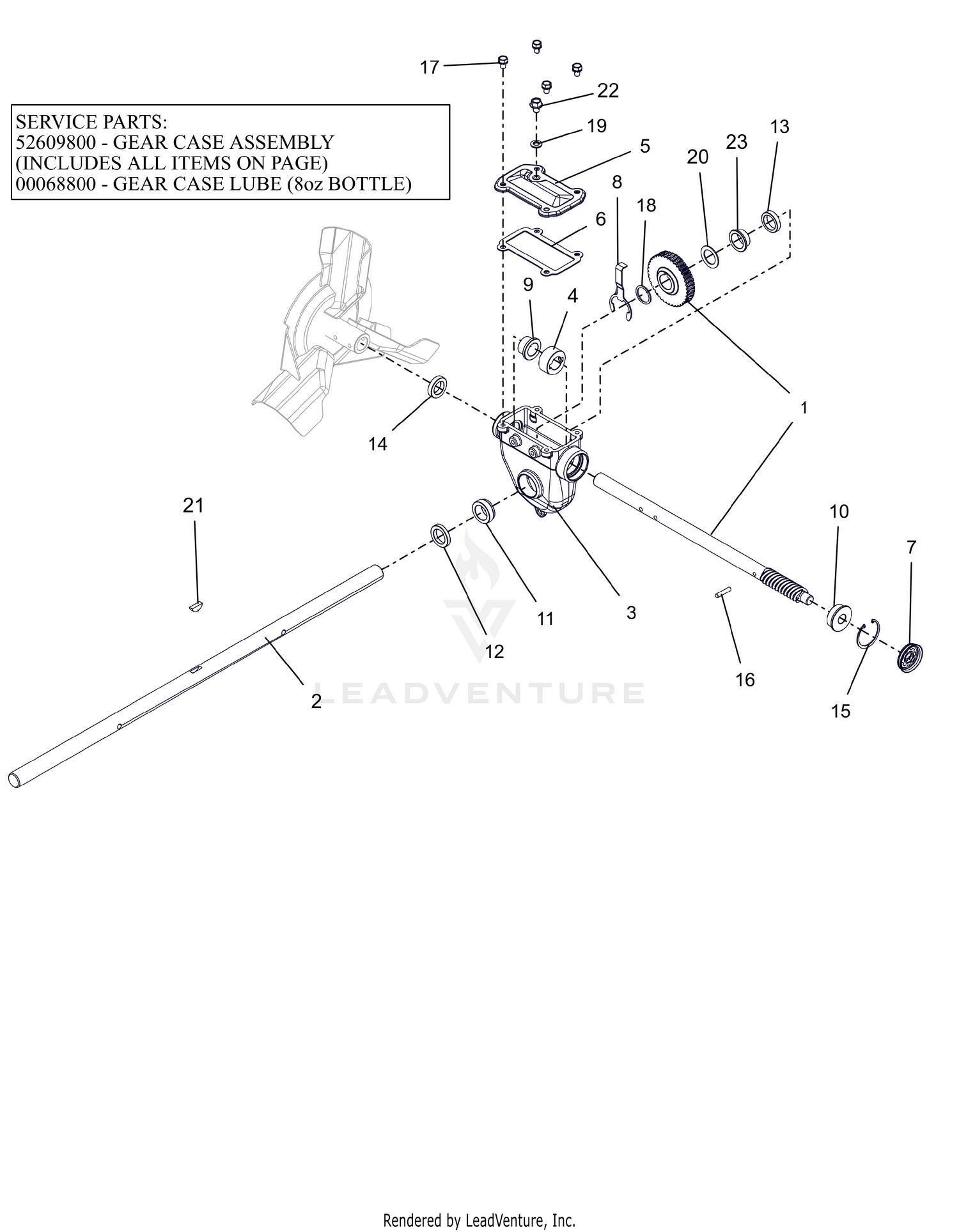

| Ref | Part Number | Description |
|---|
| 1 |
52609600 |
ASSY, WORM SHAFT & GEAR Price: $94.45 |
| 2 |
03392500 |
SHAFT, RAKE-32" Price: $84.45 |
| 3 |
04276900 |
GEARCASE, LARGE MACHINED Price: $93.95 |
| 4 |
04277100 |
THRUST COLLAR, .875"ID SLIPFIT Price: $8.45 |
| 5 |
04280351 |
COVER, TOP - LARGE IRON Price: $18.45 |
| 6 |
04282500 |
GASKET, TOP - LARGE GEARCASE Price: $3.45 |
| 7 |
04302900 |
COVER, GEAR CASE 1.75" Price: $14.95 |
| 8 |
04323700 |
BUSHING RETAINER, LARGE Price: $11.45 |
| 9 |
05501024 |
BSHG-FLG .879X1.128X.75X1.45 Price: $9.45 |
| 10 |
05501027 |
BSHG-FLG .628X1.503X.58X1.725 Price: $6.45 |
| 11 |
05501033 |
BSHG-FLG LARGE, RIGHT Price: $8.95 |
| 12 |
05600510 |
SEAL-OIL .999X1.500X.250 TBC29 Price: $7.45 |
| 13 |
05600511 |
SEAL-OIL .999X1.375X.312 TBC29 Price: $6.45 |
| 14 |
05600512 |
SEAL-OIL .873X1.375X.312 TBC29 Price: $5.95 |
| 15 |
05702100 |
RG-RTNG-INT 1.750X.062 Price: $5.45 |
| 16 |
05800208 |
PIN-STR .250X1.12 6150 Price: $3.45 |
| 17 |
05902008 |
BLT, SEMS .31-18X.50 G5 ZCC Price: $3.45 |
| 18 |
06401134 |
WSHR, FLT 1.010X1.250X.068 ZCC Price: $3.45 |
| 19 |
06400920 |
WSHR-BND-SEAL .38X.75X.11 GALV Price: $0.45 |
| 20 |
06401132 |
WSHR, FLT 1.010X1.505X.062 ZCC Price: $1.45 |
| 21 |
06608800 |
KEY-WDRF .25X.875 HRD #A Price: $3.45 |
| 22 |
07400201 |
SCR,TAP .38-15X.50 HWH ROLOK Price: $3.45 |
