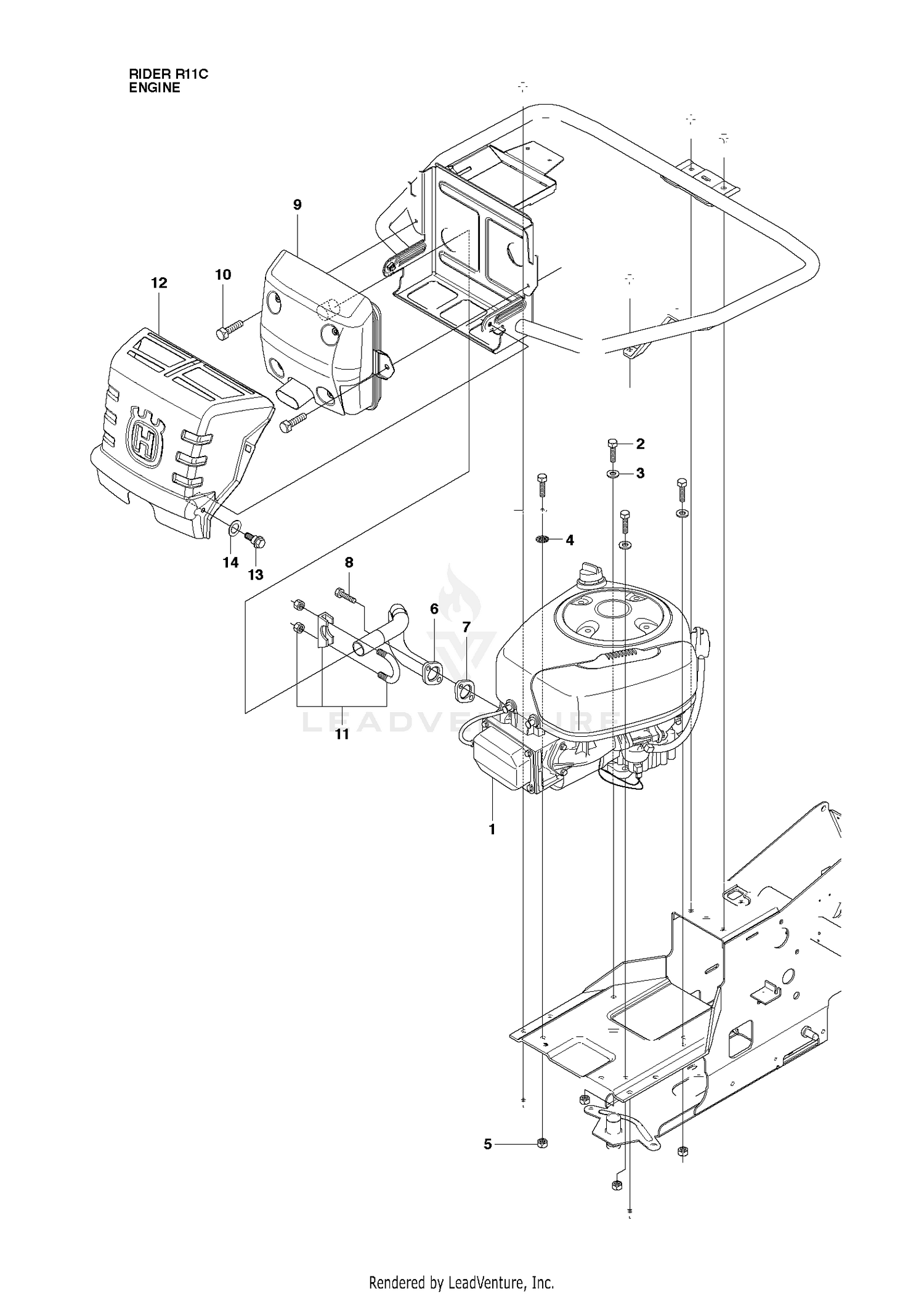

ENGINE
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 535440701 | NEEDS DESCRIPTION Price: Call Us |
| 1 | 99-7435 | RELAY Price: $32.43 |
| 2 | 104-7201 | NUT-HF Price: $0.69 |
| 2 | 725245751 | SCREW Price: $4.99 |
| 3 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 3 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 4 | 106-1126 | HOSE-FUEL Price: $10.06 |
| 4 | 735216400 | Washer Price: $1.29 |
| 5 | 109-0273 | HOSE-FUEL Price: $21.99 |
| 5 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 6 | 110-4007 | HOSE-FUEL Price: $26.06 |
| 6 | 535500601 | EXHAUST PIPE ASSY Price: $32.99 |
| 7 | 110-4105 | HOSE-FUEL Price: $11.71 |
| 8 | 144-4020 | KIT-FUEL PUMP, SERVICE This part replaces 110-8806. Price: $192.50 |
| 8 | 506556301 | BOLT Price: $3.99 |
| 9 | 110-8817 | BRACKET-PUMP, FUEL Price: $21.97 |
| 9 | 544335701 | MUFFLER ASSY Price: $159.99 |
| 10 | 110-9044 | SEPARATOR-FILTER Price: $98.19 |
| 10 | 725236461 | SCREW Price: $2.99 |
| 11 | 115-5305 | CAP-FUEL Price: $37.42 |
| 11 | 501152201 | CLAMP ASSY EXHAUST This part replaces 506668401. Price: $2.99 |
| 12 | 119-6073 | HOSE-FUEL Price: $31.02 |
| 12 | 544248301 | HEAT PROTECTOR Price: $119.99 |
| 13 | 132-7231-03 | BRACKET-SUPPORT Price: $55.47 |
| 13 | 506597401 | BOLT Price: $5.99 |
| 14 | 321-5 | SCREW-HH Price: $0.22 |
| 14 | 506839401 | SPRINGWASHER Price: $3.99 |
| 15 | 321-9 | SCREW-HH Price: $0.27 |
| 16 | 353-781 | FITTING-HYD, 90 Price: $24.44 |
| 17 | 2412-80 | CLAMP-HOSE Price: $4.39 |
| 18 | 2412-98 | CLAMP-HOSE Price: $1.39 |
| 19 | 3234-17 | SCREW-HHF Price: $0.72 |
| 20 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 21 | 32105-23 | SCREW Price: $0.88 |
