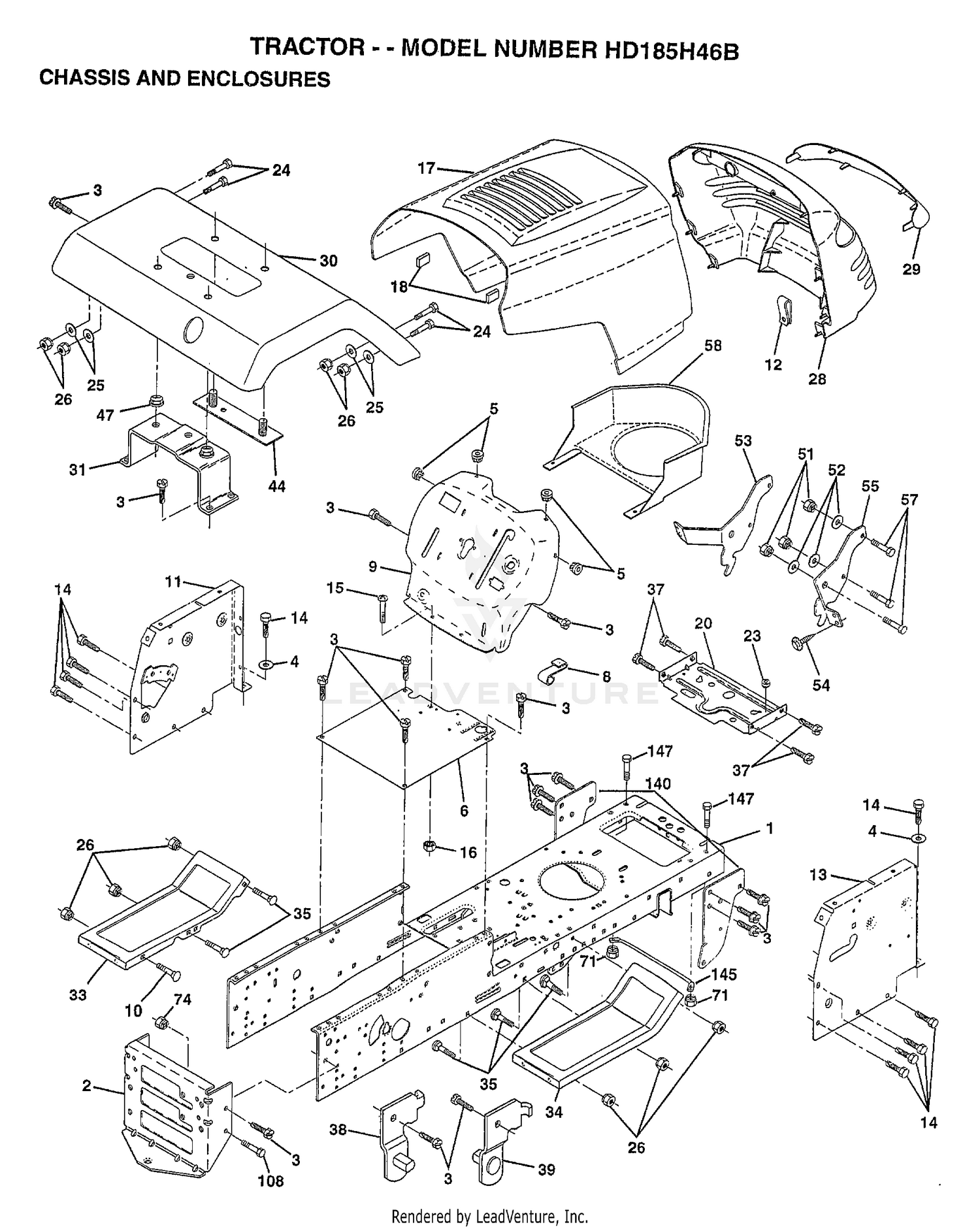

| Ref | Part Number | Description |
|---|
| 1 |
159530 |
CHASSIS ASM Price: Call Us |
| 1 |
95-0552 |
MUFFLER Price: $349.57 |
| 2 |
140356 |
SUB= 145009 Price: Call Us |
| 2 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 3 |
17490612 |
SCREW Price: Call Us |
| 3 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 4 |
19131216 |
WASHER Price: Call Us |
| 4 |
95-0586 |
CLAMP ASM Price: $5.56 |
| 5 |
155272 |
BUMPER-HOOD/DASH Price: Call Us |
| 5 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 6 |
155923 |
SADDLE Price: Call Us |
| 6 |
92-8996-03 |
SCREEN Price: $52.36 |
| 7 |
95-0557 |
BRACKET-MUFFLER Price: $22.62 |
| 8 |
75-4705 |
HOSE-FUEL Price: $1.99 |
| 9 |
147633X011 |
DASH SILKSCREEN Price: Call Us |
| 10 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 10 |
72140608 |
SUB= 72110608 Price: Call Us |
| 11 |
156682 |
PANEL ASM DASH LH Price: Call Us |
| 11 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 12 |
110-7501 |
HOSE-FUEL This part replaces 94-4522. Price: $12.75 |
| 12 |
145660 |
CLIP.TINNERMAN Price: Call Us |
| 13 |
157230 |
PANEL DASH RH Price: Call Us |
| 13 |
322-10 |
SCREW-HH Price: $0.70 |
| 14 |
17490608 |
SCREW LT Price: Call Us |
| 14 |
2412-73 |
CLAMP-R Price: $2.56 |
| 15 |
74180512 |
SCREW Price: Call Us |
| 15 |
95-0556-03 |
BASE-ENGINE Price: $156.32 |
| 16 |
120-3411 |
ENGINE-16HP, VANGUARD (SERVICE) GAS This part replaces 98-0940. Price: $2,857.81 |
| 16 |
73510500 |
NUT Price: Call Us |
| 17 |
139394X428 |
SUB= 159639X428 Price: Call Us |
| 17 |
95-0551 |
TUBE-EXHAUST Price: $69.74 |
| 18 |
126938X |
SUB= 532126938 Price: Call Us |
| 18 |
95-0550 |
MANIFOLD-EXHAUST Price: $149.32 |
| 19 |
114-0607-03 |
AIR CLEANER COVER ASM This part replaces 85-8370-03. Price: $229.75 |
| 20 |
85-8360 |
GASKET-RING Price: $23.07 |
| 21 |
85-8430-03 |
BASE-CLEANER, AIR Price: $210.07 |
| 22 |
105-8523 |
DISCONTINUED-SEE PB 954 Price: Call Us |
| 23 |
124028X |
SUB= 532124028 Price: Call Us |
| 23 |
33113-012 |
SCREW-HH Price: $0.71 |
| 24 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 24 |
74780616 |
BOLT Price: Call Us |
| 25 |
19131312 |
WASHER Price: Call Us |
| 26 |
73800600 |
NUT Price: Call Us |
| 27 |
33113-008 |
SCREW-HH Price: $0.95 |
| 28 |
157373 |
GRILLE-MS428 Price: Call Us |
| 28 |
38-3400 |
GUARD-RUBBER Price: $8.02 |
| 29 |
140273 |
LENS GRILLE Price: Call Us |
| 31 |
137113 |
BRKT.ASM.FENDER Price: Call Us |
| 33 |
145244X428 |
FOOTREST PNT LH Price: Call Us |
| 34 |
145243X428 |
FOOTREST.RH.LT/GT Price: Call Us |
| 35 |
72110606 |
BOLT Price: Call Us |
| 37 |
17490508 |
SCREW LT Price: Call Us |
| 38 |
139886 |
BRACKET ASM LH Price: Call Us |
| 39 |
139887 |
BRACKET ASM RH Price: Call Us |
| 44 |
140675 |
STRAP ASM FENDER Price: Call Us |
| 47 |
105531X |
NUT-PUSH YT Price: Call Us |
| 51 |
73800400 |
NUT Price: Call Us |
| 52 |
19091416 |
WASHER Price: Call Us |
| 53 |
144697 |
BRACKET.GRILLE.LH Price: Call Us |
| 54 |
17030814 |
SUB= 91817030814 Price: Call Us |
| 55 |
144696 |
BRACKET.GRILLE.RH Price: Call Us |
| 57 |
74780412 |
SUB= 74780414 Price: Call Us |
| 58 |
140547 |
DUCT.AIR.B&S.18HP Price: Call Us |
| 71 |
73680400 |
SUB= 73690400 Price: Call Us |
| 74 |
73680600 |
SUB= 73690600 Price: Call Us |
| 108 |
74760612 |
SUB= 74780612 Price: Call Us |
| 140 |
158418 |
BRKT SUSPENSION Price: Call Us |
