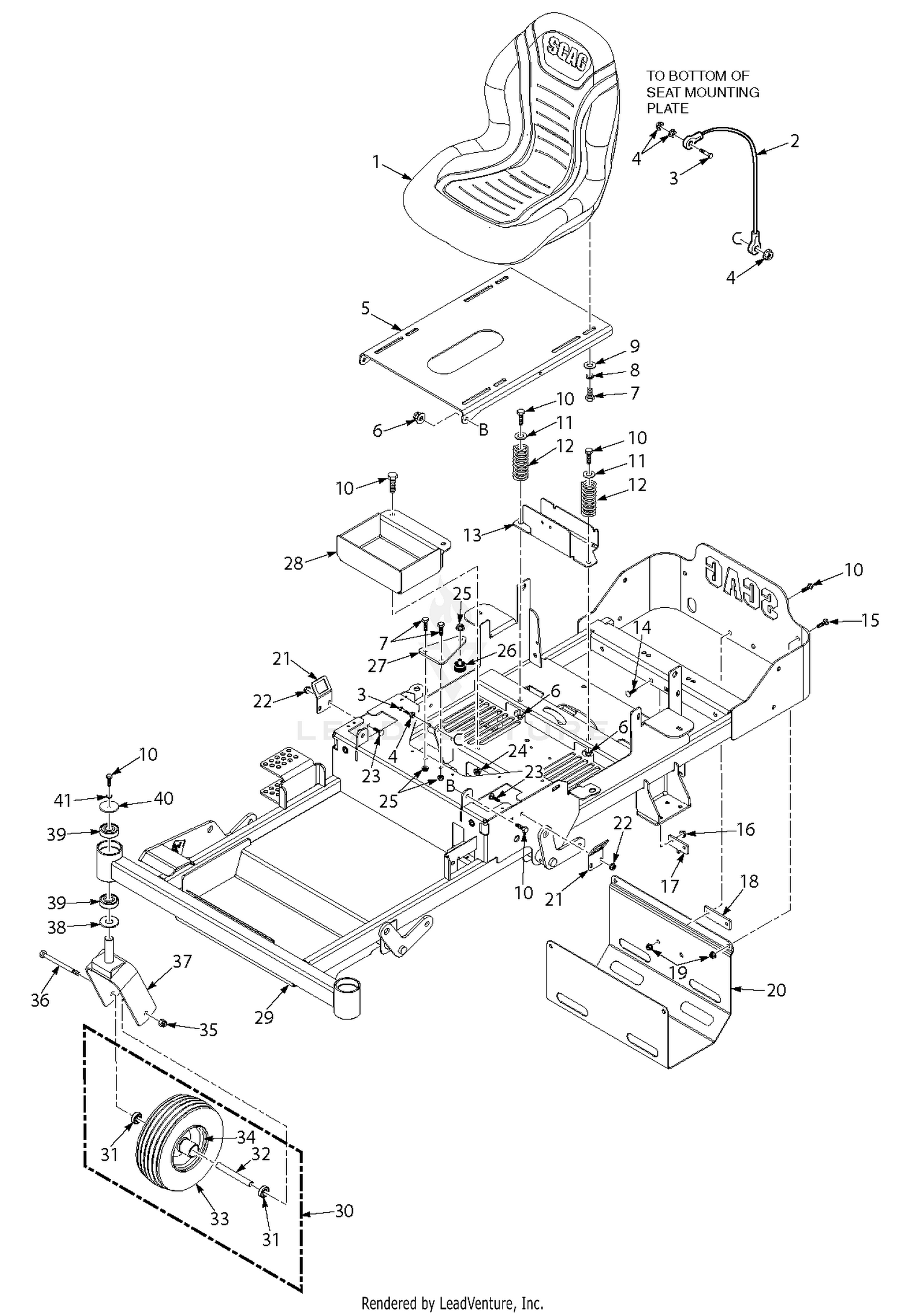

| Ref | Part Number | Description |
|---|
| 1 |
485361 |
Seat, SZL Price: Call Us |
| 2 |
483559 |
Cable, Seat Stop Price: Call Us |
| 3 |
04001-59 |
Bolt, Hex Head 1/4-20 x 1-1/4" Price: Call Us |
| 4 |
04019-02 |
Nut, 1/4-20 Serrated Flange Price: Call Us |
| 5 |
463033 |
Seat-Plate W/Decal This part replaces 462924. Price: Call Us |
| 6 |
04132-01 |
Threaded Insert, 3/8-16 Price: Call Us |
| 7 |
04030-03 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 8 |
04040-15 |
Lockwasher, 5/16" Price: Call Us |
| 9 |
04041-07 |
Flatwasher, 5/16-.375 x .875 x .083 Price: Call Us |
| 10 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 11 |
04041-07 |
Flatwasher, 3/8-.391 x .938 x .105 Price: Call Us |
| 12 |
483372 |
Spring, Seat Price: Call Us |
| 13 |
427341 |
Seat Stop Price: Call Us |
| 14 |
04001-12 |
Bolt, Hex Head 5/8-11 x 1-1/2" Price: Call Us |
| 15 |
04001-18 |
Bolt, Hex Head 3/8-16 x 3/4" Price: Call Us |
| 16 |
04117-01 |
Nut, 5/16-18 Elastic Stop Price: Call Us |
| 17 |
426726 |
Plate, Anti-Rotation Price: Call Us |
| 18 |
426843 |
Plate, Spacer Price: Call Us |
| 19 |
04019-04 |
Nut, 3/8-16 Serrated Flange Price: Call Us |
| 20 |
427296 |
Skid Plate, SZL-36 Price: Call Us |
| 21 |
426727 |
Bracket, Switch Price: Call Us |
| 22 |
04117-03 |
Nut, 1/4-20 Flange Elastic Stop Price: Call Us |
| 23 |
04003-02 |
Bolt, Carriage 1/4-20 x 3/4" Price: Call Us |
| 24 |
04132-01 |
Threaded Insert, 3/8-16 Price: Call Us |
| 25 |
04132-04 |
Threaded Insert, 5/16-18 Price: Call Us |
| 26 |
481284 |
Bumper, Rubber Price: Call Us |
| 27 |
427299 |
Battery Hold Down Price: Call Us |
| 28 |
427279 |
Battery Box Price: Call Us |
| 29 |
463035 |
Frame Assembly, SZL-36 This part replaces 462927. Price: Call Us |
| 31 |
485243 |
Bearing Price: Call Us |
| 32 |
43974 |
Spacer, Wheel Bearings Price: Call Us |
| 33 |
483417 |
Tire, 11 x 4 Price: Call Us |
| 35 |
04021-07 |
Nut, 1/2-13 Elastic Stop Price: Call Us |
| 36 |
04001-80 |
Bolt, Hex Head 1/2-13 x 6-1/2" Price: Call Us |
| 37 |
451845 |
Bearing Price: Call Us |
| 38 |
424636 |
Spacer, Yoke Price: Call Us |
| 39 |
483466 |
Bearing Price: Call Us |
| 40 |
04041-38 |
Flatwasher, 3/8-.406 x 2.25 x .188 Price: Call Us |
