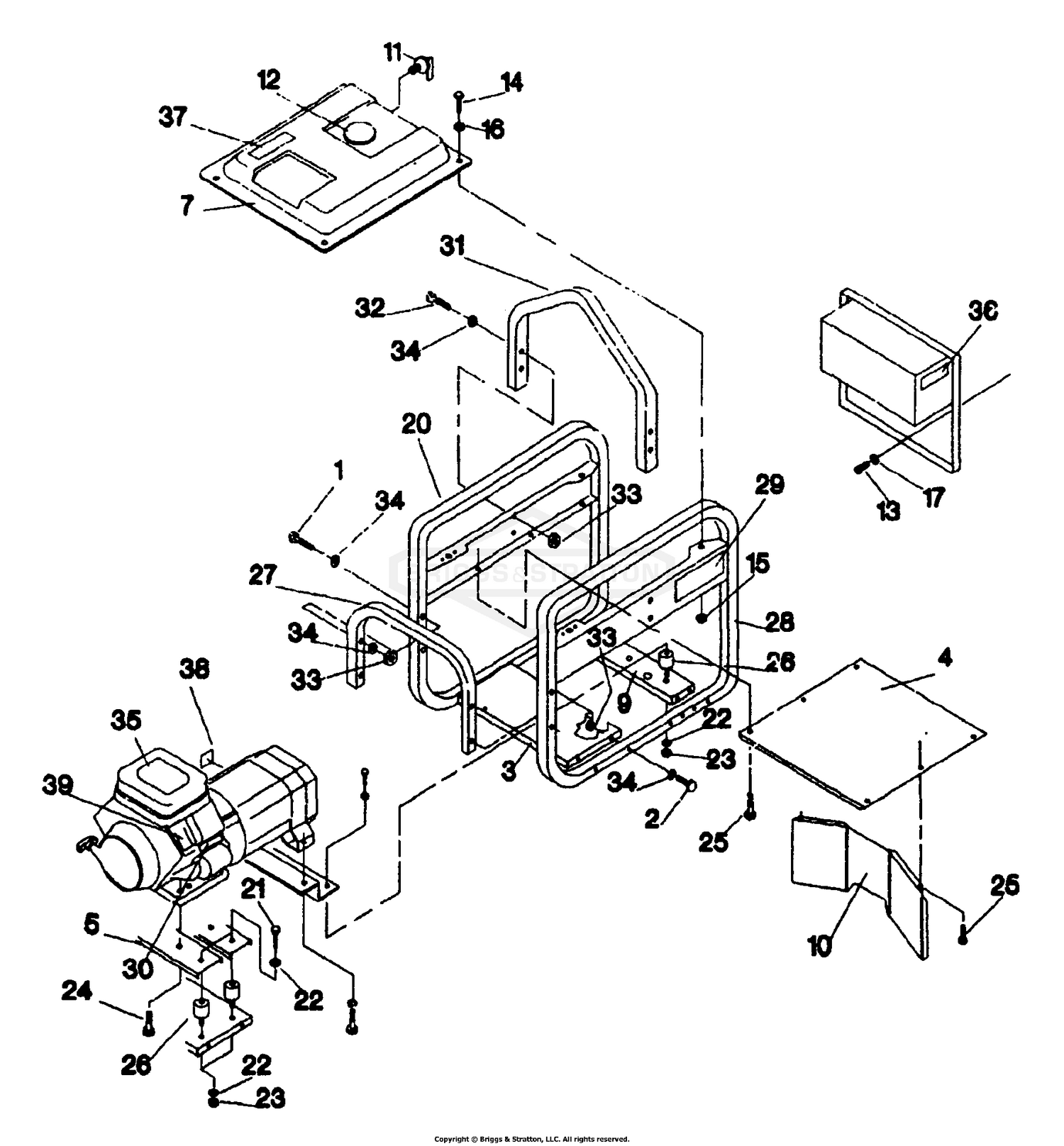

| Ref | Part Number | Description |
|---|
| 1 |
52203 |
M8-1.25 x 70mm Hex Head Capscrew Price: Call Us |
| 2 |
57821 |
M8-1.25 x 40mm Hex Head Capscrew Price: Call Us |
| 3 |
80946 |
Engine Mount Price: Call Us |
| 4 |
77316 |
Gas Tank Heat Shield Price: Call Us |
| 5 |
77304 |
Engine Support Price: Call Us |
| 6 |
78512GS |
SPPRT, ALT This part replaces 78512. Price: Call Us |
| 7 |
7073715YP |
HARNESS, Ignition Wiring (Briggs Engines) This part replaces 73715. Price: $19.89 |
| 8 |
80943 |
Manual Start Cradle Price: Call Us |
| 9 |
80947 |
Alternator Mount Price: Call Us |
| 10 |
78513 |
Heat Deflecting Shield Price: Call Us |
| 11 |
86357 |
Fuel Shut-off Valve Price: Call Us |
| 12 |
76272 |
Fuel Cap Gauge Price: Call Us |
| 13 |
75494 |
No. 10-24 x 5/8" Self-Drilling Screw Price: $30.20 |
| 14 |
42568GS |
SCREW-M8 x 16 This part replaces 42568. Price: $3.06 |
| 15 |
52857GS |
NUT-M6 FLANGE This part replaces 52857. Price: $3.06 |
| 17 |
22769GS |
WASHER, SHAKE PROOF INT.# 10 This part replaces 22769. Price: $2.49 |
| 18 |
22129GS |
WASHER, Lock This part replaces 22129. Price: $2.61 |
| 19 |
703988 |
CAPSCREW M8-1.25X16 This part replaces 39253. Price: $2.86 |
| 20 |
80944 |
Right Side Cradle Price: Call Us |
| 21 |
84010756 |
WHEEL ASSEMBLY This part replaces 23152. Price: $405.07 |
| 22 |
703454 |
LOCKWASHER, SPLIT 3/8 This part replaces 22237. Price: $2.95 |
| 23 |
5022241 |
DECAL, ProCut Z Text This part replaces 22241. Price: Call Us |
| 24 |
2828635SM |
SCREW-HEX WSHR HD TAP This part replaces 75246. Price: $4.26 |
| 25 |
63036GS |
CRIMPTITE, #8-18X1/4L This part replaces 63036. Price: $2.25 |
| 26 |
35097GS |
MNT, VBRTN, 30 DURO This part replaces 35097. Price: $15.30 |
| 27 |
80943 |
Cradle Support Price: Call Us |
| 28 |
64768 |
Left Side Cradle Price: Call Us |
| 30 |
77816GS |
DECAL, Hot Muffler This part replaces 77816. Price: $3.95 |
| 31 |
80949 |
Lifting Bar Price: Call Us |
| 32 |
39287GS |
SCREW This part replaces 39287. Price: $3.20 |
| 33 |
52858GS |
NUT, Locking Hex M8 - 1.25 This part replaces 52858. Price: $3.20 |
| 34 |
50190GS |
Washer, .34 x 1 x 10 This part replaces 50190. Price: $2.99 |
| 36 |
25717 |
CSA Decal Price: Call Us |
| 37 |
78992 |
Decal - Danger Start/Stop Price: Call Us |
| 38 |
79552 |
Data Decal Price: Call Us |
