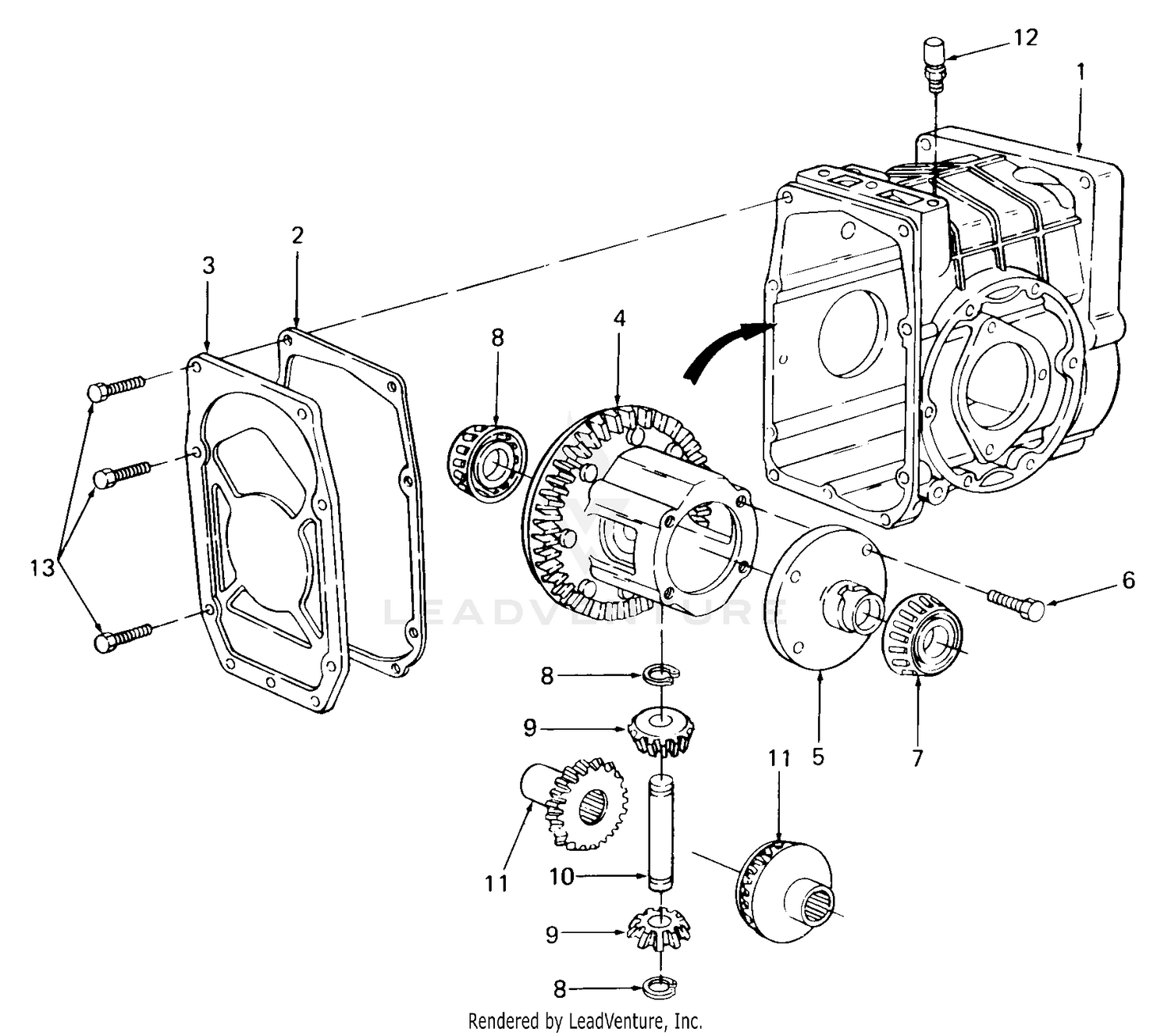

| Ref | Part Number | Description |
|---|
| 1 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 1 |
717-3204A |
HOUSING ASSEMBLY. AXLE Not Available Price: |
| 2 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 2 |
921-3015 |
GASKET This part replaces 721-3015. Price: $14.44 |
| 3 |
106-1054 |
CLUTCH KIT This part replaces 86-1710. Price: $989.76 |
| 3 |
703-0905 |
PLATE-COVER-RR Not Available Price: |
| 4 |
68-3220 |
KEY-STOCK Price: $4.60 |
| 4 |
717-3217 |
GEAR ASSY, RING W/CASE Not Available Price: |
| 5 |
717-3137 |
PLATE-FLANGE Not Available Price: |
| 5 |
86-1740 |
SPACER Price: $19.95 |
| 6 |
710-0643 |
Bolt, Hex Patch, 5/16-18 X 1.0 Lg GR5 Price: $5.99 |
| 6 |
84-0780-01 |
PULLEY-SPINDLE This part replaces 84-0780. Price: $290.34 |
| 7 |
253-154 |
SEAL-OIL Price: $5.48 |
| 7 |
941-3038 |
ROLLER BEARING CONE This part replaces 741-3038. Price: $49.79 |
| 8 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 8 |
716-0133 |
RETAINING RING Not Available Price: |
| 9 |
69-1530 |
HOUSING-SPINDLE Price: $227.62 |
| 9 |
717-3113 |
PINION-10T Not Available Price: |
| 10 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 10 |
717-3133 |
SHAFT-CROSS Not Available Price: |
| 11 |
717-3112 |
GEAR-SIDE-16T Not Available Price: |
| 11 |
95-4388 |
SPINDLE SHAFT ASM-CLUTCH Price: $279.56 |
| 12 |
138-6416 |
SPACER-SPINDLE, SHAFT This part replaces 92-9800. Price: $18.44 |
| 12 |
723-3021 |
Breather, Housing Price: $20.30 |
| 13 |
86-0010-03 |
BLADE-19" This part replaces 86-0010. Price: $32.86 |
| 14 |
72-9361 |
CUP-SCALP, ANTI Price: $39.78 |
| 16 |
92-5816 |
BOLT-BLADE Price: $4.93 |
| 17 |
71-2530 |
BEARING/SPACER KIT Price: $160.66 |
| 18 |
86-1480 |
WASHER Price: $4.82 |
