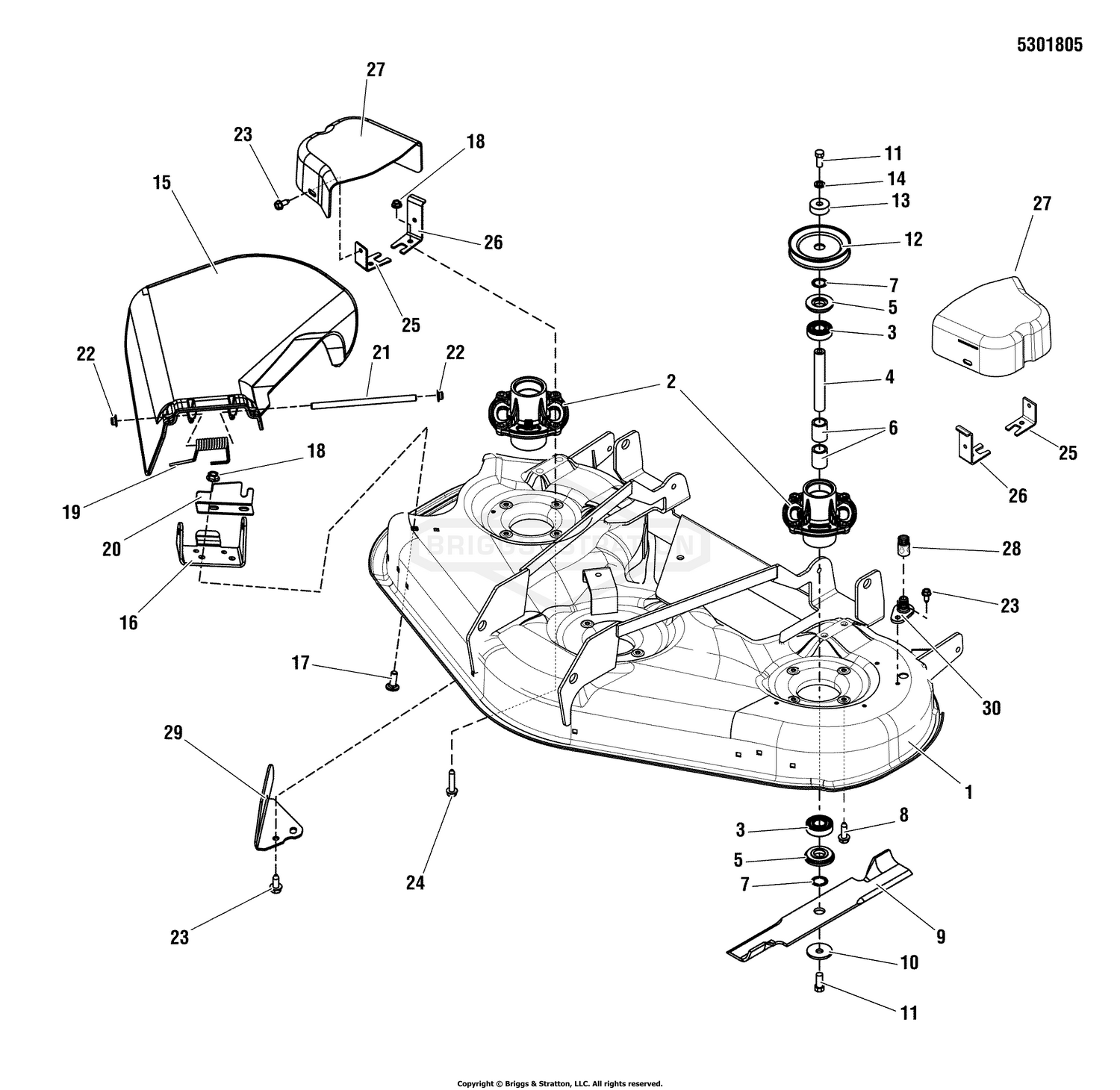

| Ref | Part Number | Description |
|---|
| 1 |
5600358YP |
DECK SHELL W/DECALS This part replaces 5600358. Price: $1,149.99 |
| 2 |
84003654 |
HOUSING ASSEMBLY This part replaces 1737352. Price: $40.82 |
| 3 |
1735399YP |
BEARING, Ball, 20mm This part replaces 1735399. Price: $8.70 |
| 4 |
84003170 |
SHAFT, SPINDLE This part replaces 1735326. Price: $27.77 |
| 5 |
84003166 |
COVER, ARBOR This part replaces 1735323. Price: $6.34 |
| 6 |
1735328YP |
SPACER, Bearing This part replaces 1735328. Price: $5.78 |
| 7 |
1960766YP |
RING, SELF LOCKING This part replaces 1960766. Price: $3.82 |
| 8 |
1960373 |
CAPSCREW, Hex Washer Head Taptite, 5/16-18X1.000BLK Price: Call Us |
| 9 |
1737228BZYP |
BLADE, Mower, 16.125 Long This part replaces 1737228. Price: $19.52 |
| 10 |
1656916SM |
WASHER, SPRING 0.475I This part replaces 1656916. Price: $6.65 |
| 11 |
1920676SM |
CAPSCREW, Hex Head, 7/16-14 X 1 This part replaces 1920676. Price: $4.70 |
| 12 |
1735686YP |
PULLEY, Split, 4.6 OD This part replaces 1735686. Price: $18.02 |
| 13 |
1735579YP |
SPACER, Lower Drive This part replaces 1735579. Price: $6.57 |
| 14 |
704007 |
LCKWSHR,7/16,SPLIT RE This part replaces 1918199. Price: $3.94 |
| 15 |
1735447 |
DEFLECTOR, DISCH PLASTIC 46/52 DECKS Price: Call Us |
| 16 |
1736365BMYP |
PIVOT, HINGE This part replaces 1736365A. Price: $11.01 |
| 17 |
703185 |
BOLT, Round Head, Short Square Neck This part replaces 1931333. Price: $2.87 |
| 18 |
703409 |
NUT, 5/16-18, GR5 This part replaces 1931277. Price: $4.92 |
| 19 |
1736364YP |
SPRING, Torsion, Deflector, 2.16 Long This part replaces 1736364. Price: $7.27 |
| 20 |
1737359BMYP |
PLATE, Deflector, Closeoff This part replaces 1737359A. Price: $7.27 |
| 21 |
1736366YP |
ROD, Deflector, .313 Dia. X 5.6 Long, Zinc/Clear This part replaces 1736366. Price: $10.54 |
| 22 |
704028 |
PUSHNUT, CAP, 5/16 This part replaces 7012542. Price: $4.59 |
| 23 |
703228 |
SCREW, 5/16-18 X .75 This part replaces 1664847. Price: $3.94 |
| 24 |
1930600SM |
CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1-1/2 This part replaces 1930600. Price: $4.49 |
| 25 |
5405736AYP |
BRKT, BELT COVER, SHORT This part replaces 5405736A. Price: $9.99 |
| 26 |
5405734AYP |
BRKT, BELT COVER, LONG W/ TAB This part replaces 5405734A. Price: $13.89 |
| 27 |
1735752YP |
COVER, Belt, R.H. This part replaces 1735752. Price: $27.77 |
| 28 |
1736898 |
CONNECTER, WASHOUT PORT, 46+52" BLK POLY Price: Call Us |
| 29 |
1737279BMYP |
BAFFLE, Pinchoff This part replaces 1737279A. Price: $16.09 |
