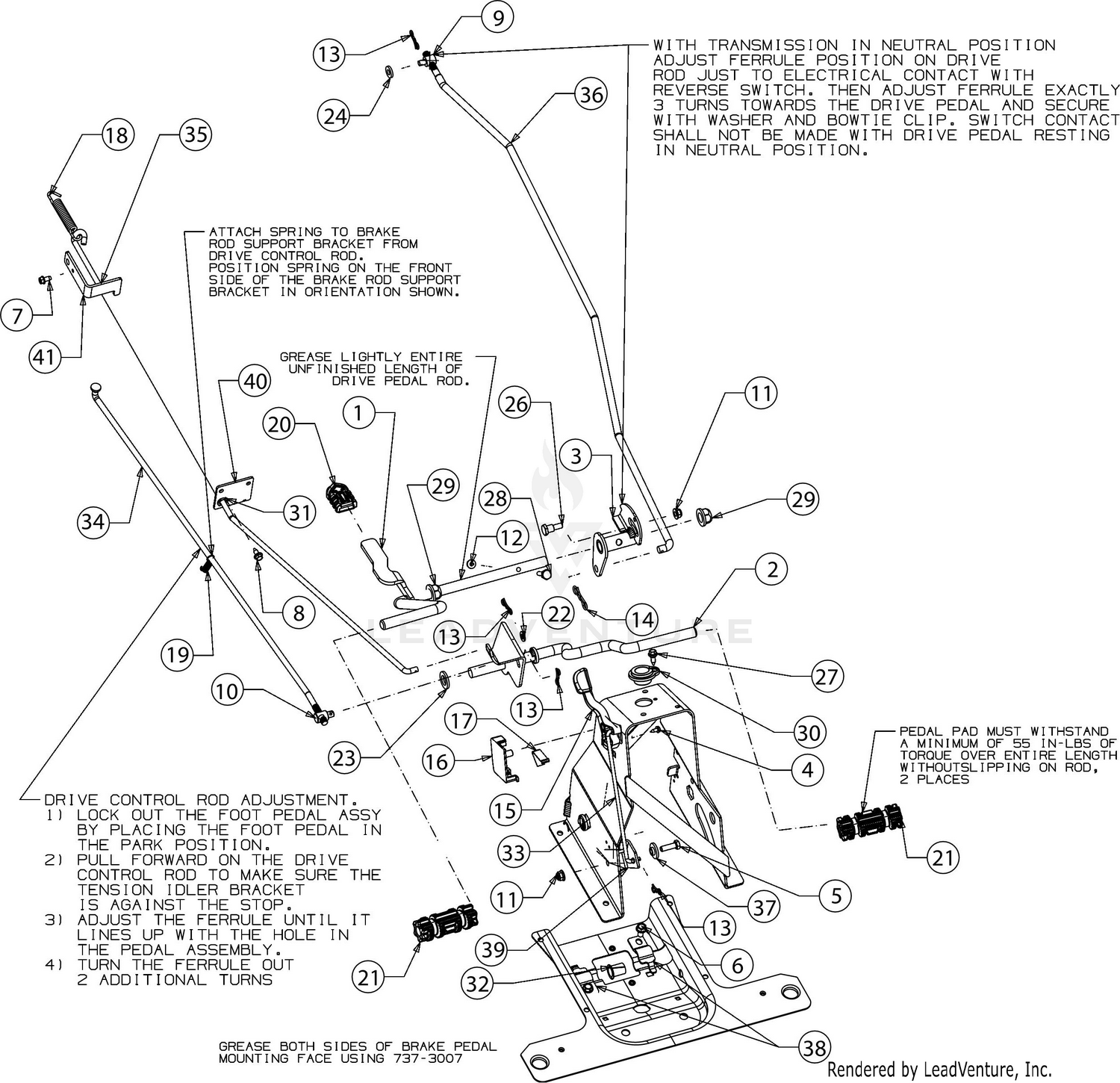

| Ref | Part Number | Description |
|---|
| 1 |
683-05232-0637 |
DRIVE PEDAL ASSEMBLY Price: $64.83 |
| 2 |
683-05233-0637 |
BRAKE PEDAL ASSEMBLY Price: $65.38 |
| 3 |
683-05240 |
HYDRO PEDAL BELLCRANK ASSEMBLY Price: $42.44 |
| 4 |
910-0224 |
HEX SCREW AB-TAP #10-16 x 0.500 Price: $3.19 |
| 5 |
710-0376 |
SCREW 5/16-18 x 1.0 GR5 Price: $3.66 |
| 6 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 7 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 8 |
710-1652 |
SCREW 1/4-20X.625 Price: $3.86 |
| 9 |
711-0392 |
FERRULE 3/8-16 x .312 Price: $12.25 |
| 10 |
711-06103 |
FERRULE 3/8-24 x .375 Price: $3.70 |
| 11 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 12 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 13 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 14 |
714-05005 |
BOW TIE COTTER PIN Price: $4.24 |
| 15 |
731-11574 |
PARK BRAKE LEVER Price: $7.30 |
| 16 |
731-11924 |
SPEED CONTROL COVER Price: $3.70 |
| 17 |
732-04937 |
SHIFT SPRING Price: $3.46 |
| 18 |
732-05464A |
EXTENSION SPRING .59 OD x 4.0 This part replaces 732-05464. Price: $11.49 |
| 19 |
732-3118 |
EXTENSION SPRING Price: $8.78 |
| 20 |
735-04117 |
REVERSE PEDAL PAD Price: $5.68 |
| 21 |
735-05051 |
BRAKE PEDAL PAD Price: $10.13 |
| 22 |
736-0264 |
Flat Washer.330 ID x.630 OD This part replaces 936-0264. Price: $5.99 |
| 23 |
736-0366 |
FLAT WASHER Price: $3.82 |
| 24 |
936-3008 |
FLAT WASHER Price: $6.24 |
| 26 |
738-0138A |
SHOULDER SCREW 5/16-18 x .62 GR2 Price: $5.81 |
| 27 |
738-04184A |
SHOULDER SCREW Price: $5.99 |
| 28 |
738-05000 |
SHOULDER SCREW .375 x .148 Price: $3.70 |
| 29 |
941-0225 |
FLANGE BEARING Price: $6.55 |
| 30 |
741-0356A |
FLANGE BEARING Price: $6.19 |
| 31 |
941-0475 |
BUSHING .380 ID Price: $3.74 |
| 32 |
741-05135 |
FLANGE BEARING .626 x .938 x .875 Price: $5.48 |
| 33 |
747-06449 |
SPEED SELECT ROD Price: $13.05 |
| 34 |
747-06571 |
HYDRO CONTROL ROD Price: $36.52 |
| 35 |
747-06576A |
BRAKE ROD Price: $23.70 |
| 36 |
747-06650 |
HYDRO DRIVE ROD Price: $44.33 |
| 37 |
748-0234 |
SHOULDER SPACER Price: $3.86 |
| 38 |
783-05940 |
BRAKE SHAFT STRAP Price: $6.17 |
| 39 |
783-08953 |
PARK BRAKE BRACKET Price: $28.85 |
| 40 |
783-08959A-0637 |
BRAKE ROD SUPPORT BRACKET Price: $8.20 |
