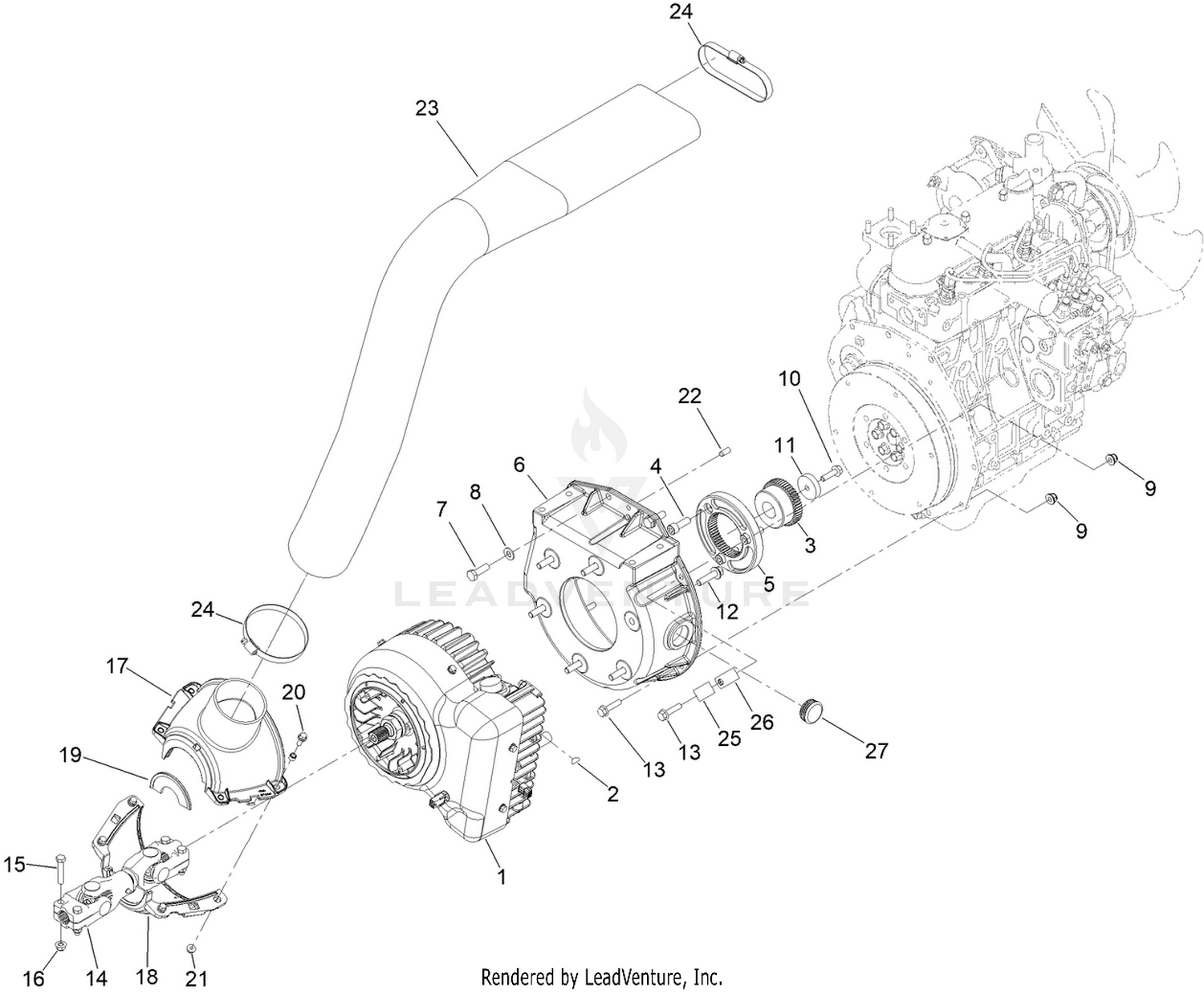

Generator Assembly — Parts Catalog

Ref	Part Number	Description
1	127-2655	GENERATOR/CONTROLLER ASM Price: $6,686.18
2	127-2318	KEY-WOODRUFF Price: $2.37
3	127-2635	HUB-COUPLER Price: $130.36
4	108-1420	SCREW-HSH Price: $8.55
5	125-1179	FLANGE-COUPLER Price: $94.44
6	127-2380	BELLHOUSING Price: $231.54
7	95-8812	SCREW-HH Price: $1.22
8	3256-80	WASHER-PLAIN Price: $0.25
9	104-3082	NUT-LOCK, HHF Price: $2.89
10	AU100874	SCREW-HHF Price: $1.01
11	127-2374	COLLAR Price: $34.02
12	114-4681	SCREW-HHF Price: $0.89
13	33104-035	SCREW-HHF Price: $0.88
14	139-6044	DRIVESHAFT ASM Price: $571.06
15	323-9	SCREW-HH Price: $1.29
16	104-8301	NUT-HF, NI Price: $1.09
17	127-2465	SHROUD ASM Price: $60.59
18	127-2442	SHROUD-INTAKE, BOTTOM Price: $47.71
19	127-2434	SEAL-BRUSH Price: $14.66
20	120-9678	SCREW-HHF Price: $0.42
21	104-7201	NUT-HF Price: $0.69
22	87-1910	PIN-DOWEL Price: $1.22
23	127-2472	HOSE-FORMED Price: $235.58
24	2412-46	CLAMP Price: $33.99
25	2412-39	CLAMP-R Price: $1.70
26	2412-41	CLAMP-R Price: $4.82
