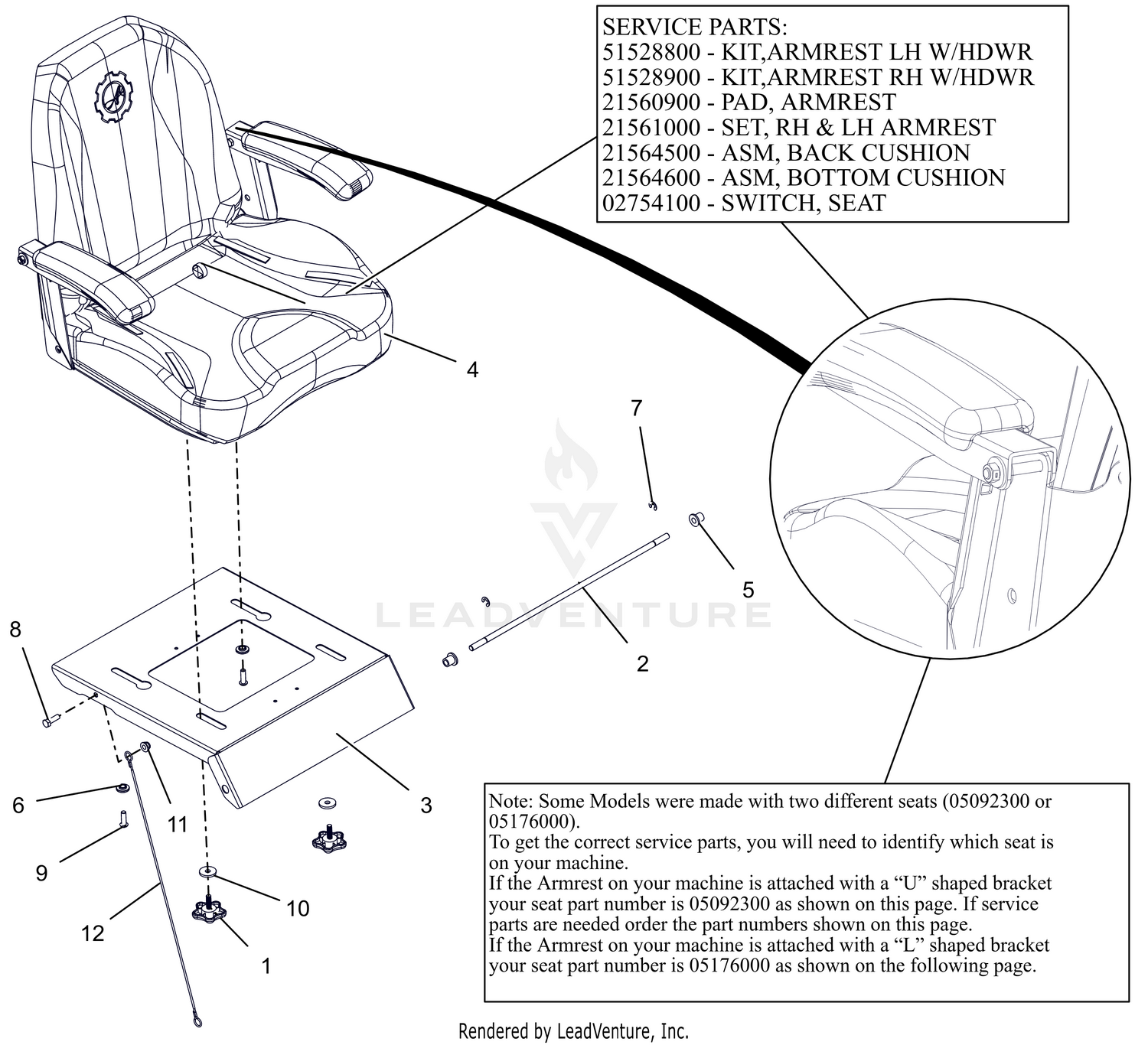

| Ref | Part Number | Description |
|---|
| 1 |
07500226 |
KNOB, WING STUDDED Price: $3.45 |
| 2 |
09448000 |
ROD- SEAT PIVOT This part replaces 04816200. Price: $10.95 |
| 3 |
05246959 |
PLATE, SEAT (ORANGE) This part replaces 05160859. Price: $71.45 |
| 4 |
05176000 |
SEAT, IKON This part replaces 05092300. Price: $458.95 |
| 5 |
05501231 |
BSHG-FLG .38X.580X.667X.750 Price: $2.45 |
| 6 |
05501328 |
BSHG, FLG .312X.499X.23X.88 Price: $1.95 |
| 7 |
05710600 |
RG-RTNG-EXT .375X.035 TYP E Price: $0.95 |
| 8 |
05901701 |
BLT,HEX .31-18X1.00 G5 ZCC Price: $1.45 |
| 9 |
05901840 |
BLT,SHCS-BTN .31-18X1.00 ZCC Price: $2.45 |
| 10 |
06401104 |
WSHR, FLT .340X1.125X.135 ZCC Price: $3.95 |
| 11 |
06500809 |
NUT,LK-NYL-FLG .31-18 G5ZC120 Price: $1.45 |
